OMRON H3CR-A8 MULTI-FUNCTIONAL TIMER
Quick Overview
Manufactured By: OMRON CORPORATION
Manufacturer Part Number: H3CR-A8
IMS Product Code: 2144165
Packaging: Sold Individually
Description:

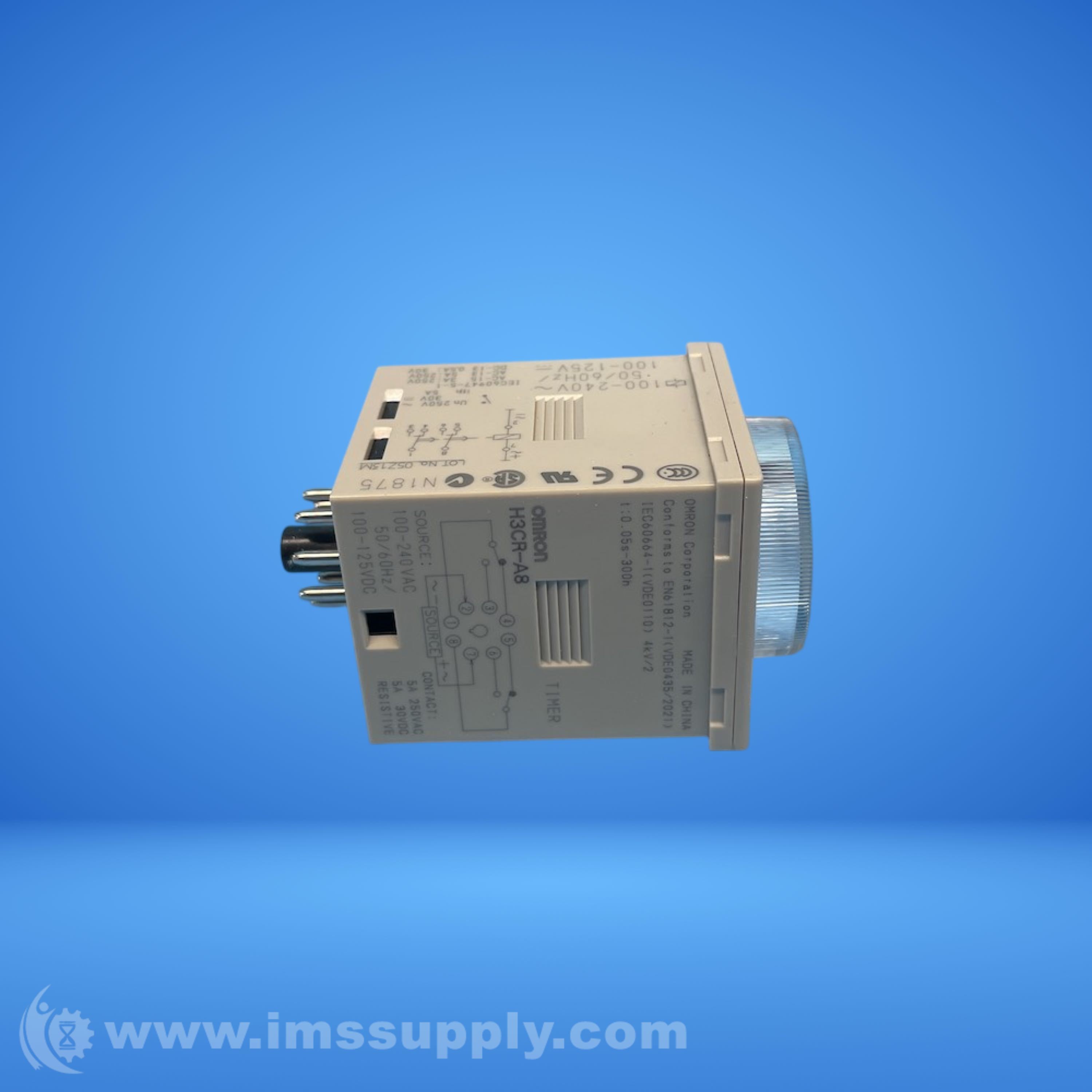

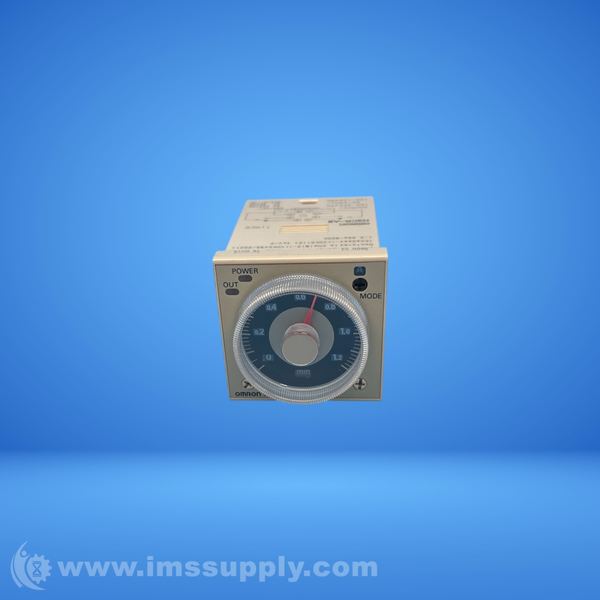

Omron H3CR-A8 Multi-Functional Timer
Solid-state multi-functional timer with analog dial, DPDT output, and multiple operation modes. Supports 100-240VAC and 100-125VDC power supply.
Specifications
- Rated power supply voltage: 100 to 240 VAC 50/60 Hz, 100 to 125 VDC
- Allowable voltage variable range: 85% to 110% of rated voltage
- Number of time ranges: 18
- Operation mode: ON delay, Flicker OFF start, Flicker ON start, Interval, One shot output
- Control output (Type): Time-limit: DPDT
- Control output (Contact output): Resistive load: 250 VAC 5 A (cosf=1)/5 A at 30 VDC/0.15 A at 125 VDC
- Ambient temperature range: Operating: -10 to 55 ?, Storage: -25 to 65 ?
- Ambient humidity range: Operating: 35 to 85 %
- Accuracy of operating time: ±0.2% FS max.
- Degree of protection: Panel surface: IP40, Terminals: IP00
- Connecting method: 8-pin round socket
- Weight: Approx. 90 g

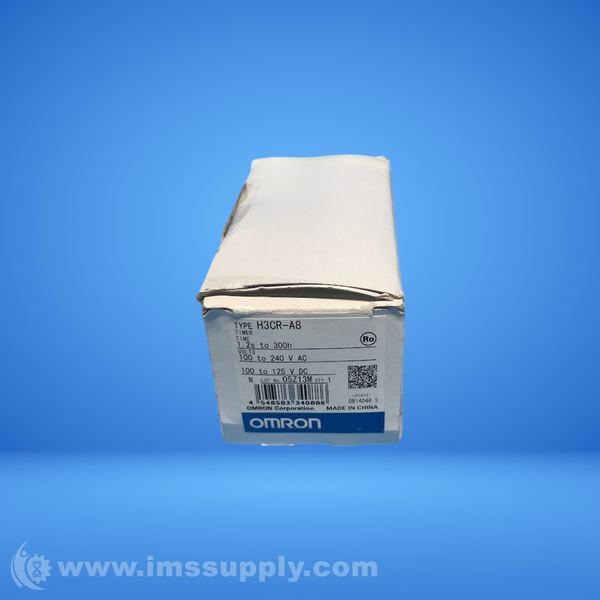

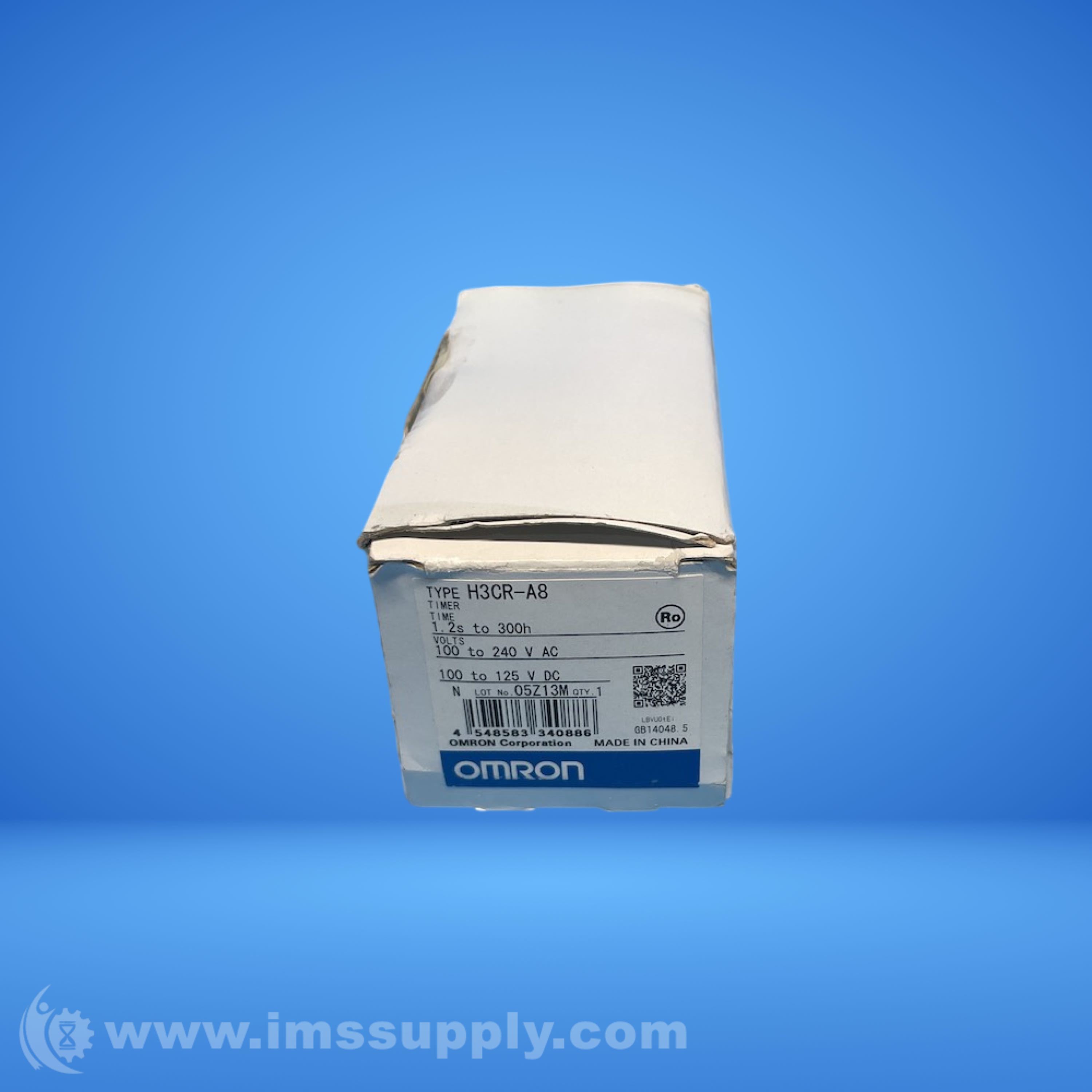

New - Open Box:
A new, unused item with no signs of wear. The item has its original packaging but it is not sealed.
Availability: 1 In Stock
Ships today if ordered in the next 2 hours and 37 minutes.
