OMRON H7BX-AW MULTIFUNCTION COUNTER
Quick Overview
Manufactured By: OMRON CORPORATION
Manufacturer Part Number: H7BX-AW
IMS Product Code: 2121040
Packaging: Sold Individually
Description:
Omron H7BX-AW Multifunction Counter
Multifunction Counter (DIN 72 × 72)
Specifications
- Function: 1 Stage Preset Counter, 2 Stage Preset Counter, Total Preset Counter, Batch Counter, Dual Counter, Twin counter, Tachometer
- Preset stages: 2 step
- Rated supply voltage: 100 to 240 VAC 50/60 Hz
- Operating voltage range: 85 to 110% of rated power supply voltage
- Power consumption: 9.6 VA max.
- External power supply: 12 VDC (±10%) 100 mA
- Count range: -99999 to 999999
- Max. counting speed: 30 Hz/5 kHz (switching)
- Minimum input signal width: 30 Hz: 16.7 ms, 5 kHz: 0.1 ms
- Input mode: Increment (UP), decrement (DOWN), increment/decrement (UP/DOWN A (command input), UP/DOWN B (individual inputs), or UP/DOWN C (quadrature inputs)), UP/DOWN D (command input), UP/DOWN E (individual inputs), UP/DOWN E (quadrature inputs))
- Output modes: N, F, C, R, K-1, P, Q, A, K-2, D, L, H
- One-shot output time: 0.01 to 99.99 s
- Reset system: External (Minimum input signal width: 1 ms/20 ms selectable, manual and automatic reset (internal according to C, R, P and Q mode operation)
- Pulse measurement method: Periodic measurement
- Max. counting speed (Tachometer): 30 Hz/10 kHz (switching)
- Sampling period: 200 ms
- Measuring ranges: 30 Hz: 0.01 to 30.00 Hz, 10 kHz: 0.01 to 5 kHz (1-input mode: 0.001 Hz to 10 kHz)
- Input signal: CP1, CP2, Reset 1, Reset 2, Key protect
- Input method: No-voltage (NPN)/Voltage input (PNP) selectable
- Display method: 7-segment backlit negative transmissive LCD
- Digits: 6 digit
- Character height: Count value: 13.5 mm (Red or green programmable), Set value: 9 mm (green)
- Prescaling function: 0.001 to 99.999
- Decimal point adjustment: Rightmost 3 digits
- Key protection: Key protect input
- Memory backup methods: Non-volatile memory, Number of rewite: 100,000 operations min., Store data: 10 years min.
- Ambient temperature (Operating): -10 to 55 degrees C (with no icing)
- Ambient temperature (Storage): -25 to 65 degrees C (with no icing)
- Ambient humidity (Operating): 25 to 85 % (with no condensation)
- Insulation resistance: 100 MO min.
- Dielectric withstand voltage: 2000 VAC 50/60 Hz 1 min
- Impulse withstand voltage: 6 kV
- Noise immunity: ±1.5 kV (Between power terminals), ±600 V (Between input terminals)
- Static immunity: 8 kV (Malfunction), 15 kV (Destruction)
- Vibration resistance: 10 to 55 Hz, 0.75 mm single amplitude each in 3 directions for 2 h (Destruction), 10 to 55 Hz, 0.5 mm single amplitude each in 3 directions for 10 min (Malfunction)
- Shock resistance: 294 m/s2, 3 times each in 3 axes 6 directions (Destruction), 98 m/s2, 3 times each in 3 axes 6 directions (Malfunction)
- Life expectancy: Mechanical life 10 million operations min., Electrical life 100,000 operations min.
- Degree of protection: Case front: IP54
- External connection method: Screw terminal
- Case color: Black (Munsell N1.5)
- Weight: Approx. 250 g
- Mounting Type: Flush
- Series: H7BX
New - Missing Box (Special):

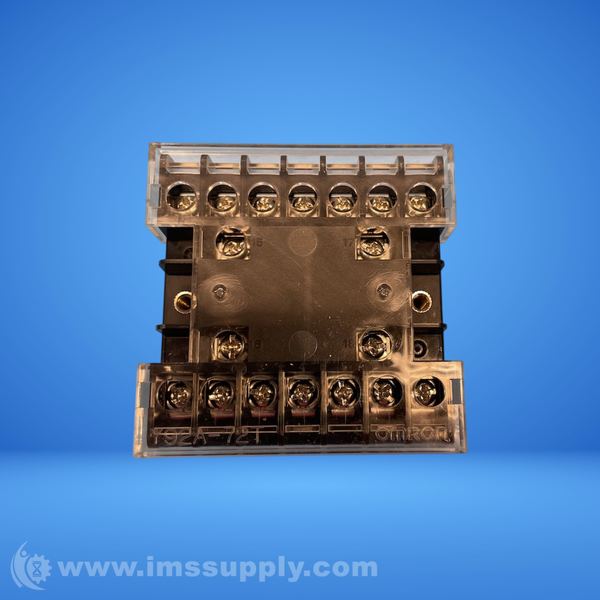

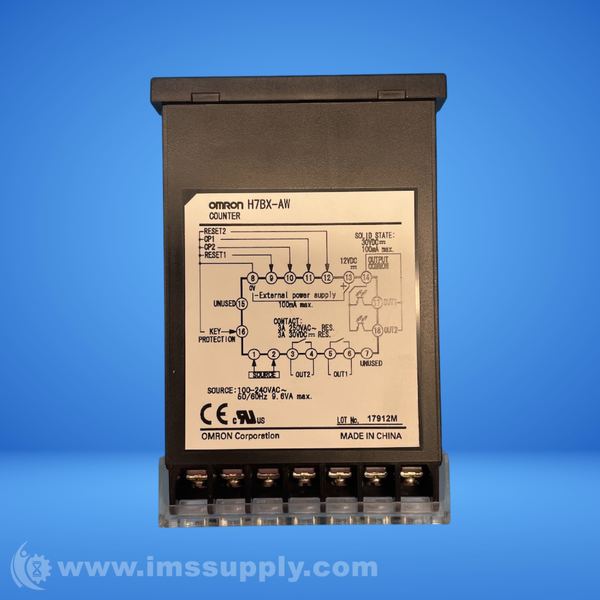

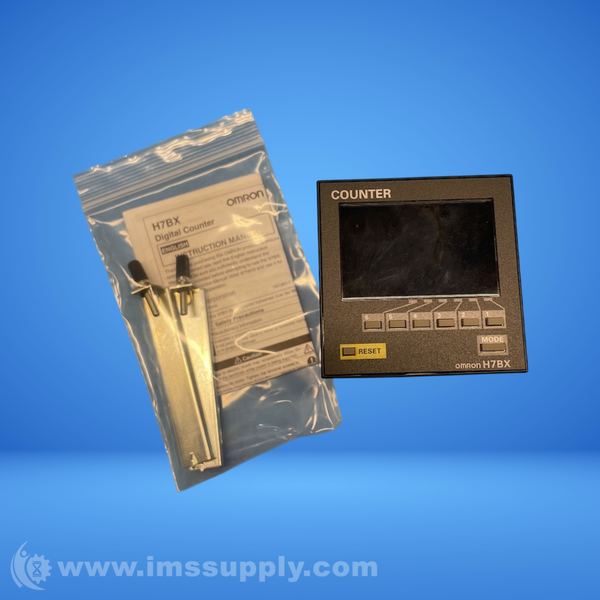

Comes with instruction manual and brackets.
Availability: 1 In Stock
Ships today if ordered in the next 7 hours and 10 minutes.
