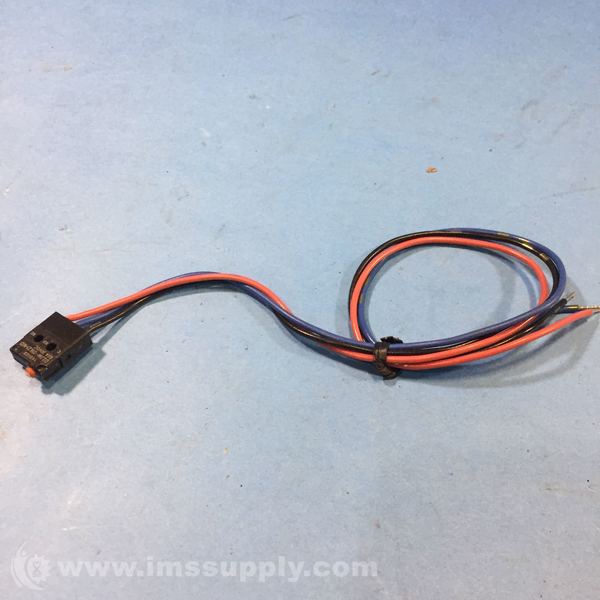

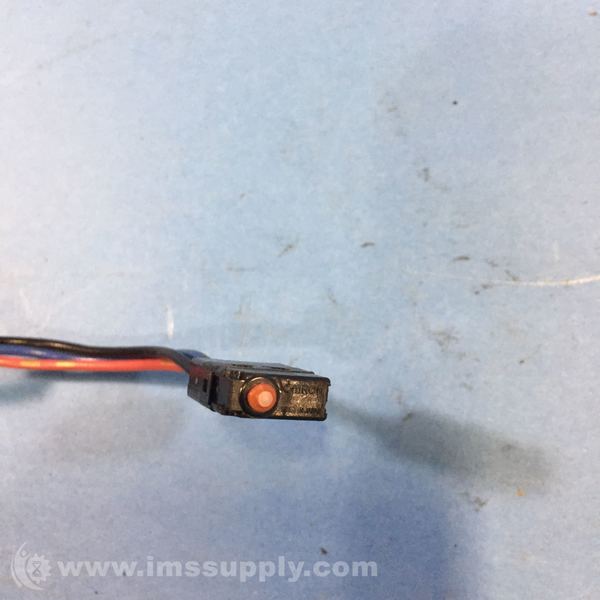

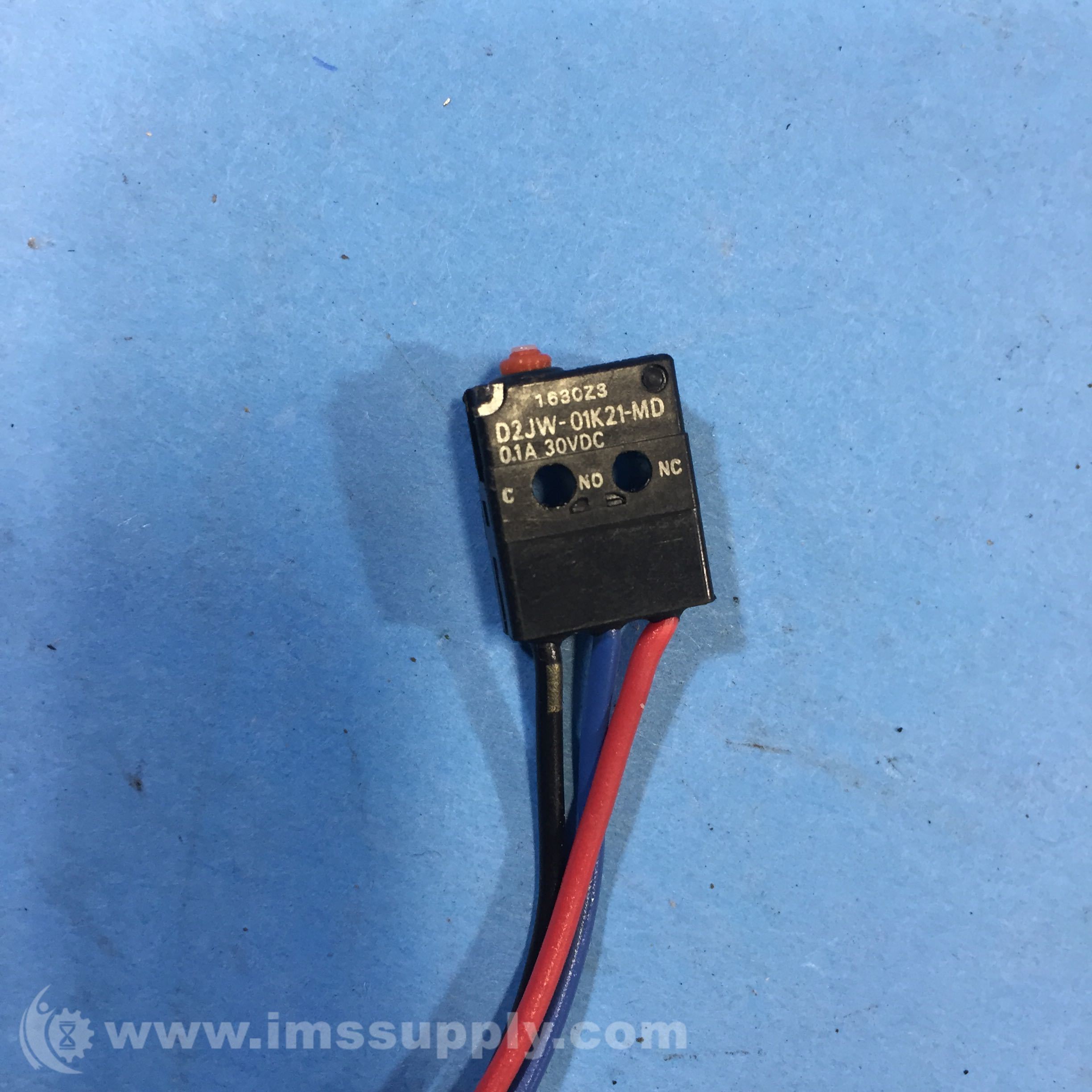

OMRON D2JW-01K21-MD SNAP ACTION SWITCH
Quick Overview
Manufactured By: OMRON
Manufacturer Part Number: D2JW-01K21-MD
IMS Product Code: 1873838
Packaging: Sold Individually
Description:
Omron D2JW-01K21-MD Snap Action Switch
Snap Action Switch N.O./N.C. SPDT Hinge Roller Lever Wire Lead 0.1A 30VDC 0.98N Screw Mount
Specifications
- Mounting: Through Hole
- Pole Throw Configuration: SPDT
- Switch Configuration: N.O./N.C.
- Actuator Material/Style: Resin/Hinge Roller Lever
- Contact Rating @ Voltage: 0.1@30VDC A
- Maximum Movement Differential: 0.5 mm
- Operating Force: 0.98 N
- Termination Style: Wire Lead
- Dimension: 17.7 x 5.3 x 28.5 mm
- Body Orientation: Straight
- IP Rating: IP67
- Type of switch: microswitch SNAP ACTION
- DC contacts rating @R( at resistive load ): 0.1A / 30V DC
- Switches features: with lever (with roller)
- Contacts configuration: SPDT
- Max. contact resistance: 140mO
- Switching method( the position in bracket indicates momentary position. ): ON-(ON)
- Number of positions: 2
- Manufacturer series: D2JW
- Stable positions number: 1
- Leads: cables
- Lead length: 0.3m
- Body dimensions: 12.7x5.3x9.4mm
- Mechanical durability: 1000000 cycles
- Operating temperature: -40...85°C
- Lever length: 13.5mm
- Electrical life: 100000 cycles
- Min. insulation resistance: 0.1GO
- Gross weight: 7.8 g
- Case/Package: Molded
- Contact Material: Gold
- Mechanical Life: 1 Mcycles
- Contact Current Rating: 100 mA
- Contact Resistance: 140 mO
- Current Rating: 100 mA
- Differential Travel: 508 µm
- Electrical Life: 100 kcycles
- Insulation Resistance: 100 MO
- Max Current Rating: 100 mA
- Max Operating Temperature: 85 °C
- Max Voltage Rating (DC): 30 V
- Min Operating Temperature: -40 °C
- Number of Poles: 1
- Overtravel: 1.143 mm
- Pretravel: 5.2 mm
- Sealable: IP67
- Switch Function: On-Mom
- Termination: Wire Leads
- Throw Configuration: SPDT
- Voltage Rating (DC): 30 V
- Depth: 5.3 mm
- Height: 9.4 mm
- Length: 12.7 mm
- Width: 5.3 mm
New - Missing Box:
A new, unused item with no signs of wear. The item may be missing the original packaging.
Availability: 14 In Stock
Ships on Monday, February 16, 2026
Emergency after hours shipping may be available.
Call (888) 437-6645 for more information.
New - Missing Box (Special):
The cord has a block attached to it.
Availability: 1 In Stock
