OMRON D4C-1701 ENCLOSED LIMIT SWITCH
Quick Overview
Manufactured By: OMRON
Manufacturer Part Number: D4C-1701
IMS Product Code: 1811464
Packaging: Sold Individually
Description:

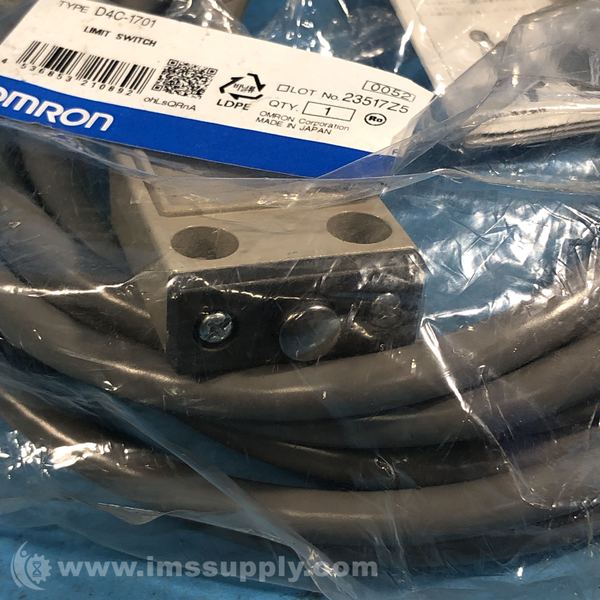

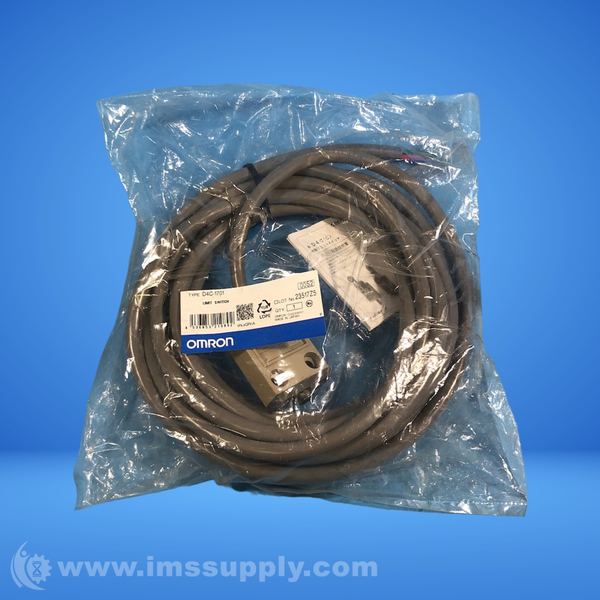

Omron D4C-1701 Enclosed Limit Switch
Enclosed Switch, Pin plunger, 5 A at 250 VAC/ 4 A at 30 VDC, SJT(O) cable, 5 m
Specifications
- Shape/Structure: General-purpose Limit switches
- Actuator: Pin plunger 10 dia.
- Electrical ratings: 5 A at 250 VAC/ 4 A at 30 VDC
- Frequency: 50/60 Hz
- Contact form: SPDT
- Load: General load
- Ratings (AC): Non-Inductive load: Resistive load: 5 A at 125 VAC/5 A at 250 VAC
- Ratings (AC): Lamp load (NC): 1.5 A at 125 VAC/1 A at 250 VAC
- Ratings (AC): Lamp load (NO): 7 A at 125 VAC/0.5 A at 250 VAC
- Ratings (AC): Inductive load: 3 A at 125 VAC/2 A at 250 VAC
- Ratings (AC): Motor load (NC): 2.5 A at 125 VAC/1.5 A at 250 VAC
- Ratings (AC): Motor load (NO): 1.3 A at 125 VAC/0.8 A at 250 VAC
- Ratings (DC): Non-Inductive load: Resistive load: 5 A at 8 VDC/5 A at 14 VDC/4 A at 30 VDC/0.4 A at 125 VDC/0.2 A at 250 VDC
- Ratings (DC): Lamp load: 2 A at 8 VDC/2 A at 14 VDC/2 A at 30 VDC/0.05 A at 125 VDC/0.03 A at 250 VDC
- Ratings (DC): Inductive load (NC): 5 A at 8 VDC/4 A at 14 VDC/3 A at 30 VDC/0.4 A at 125 VDC/0.2 A at 250 VDC
- Ratings (DC): Inductive load (NO): 4 A at 8 VDC/4 A at 14 VDC/3 A at 30 VDC/0.4 A at 125 VDC/0.2 A at 250 VDC
- Ratings (DC): Motor load: 3 A at 8 VDC/3 A at 14 VDC/3 A at 30 VDC/0.05 A at 125 VDC/0.03 A at 250 VDC
- Inrush current: NC: 20 A max., NO: 10 A max.
- Earth terminal: With earth wire
- Cable specifications: SJT(O) cable approved by UL and CSA, 4 cores, 5 m
- Nominal sectional area: 0.83 mm2
- Diameter: 8.6 dia.
- Ambient temperature: Operating: -10 to 70 degrees C (with no icing)
- Ambient humidity: 35 to 95 %
- Permissible operating speed: 0.1 mm/s to 0.5 m/s
- Permissible operating frequency: Electrical: 30 operations / 1 minute max., Mechanical: 120 operations / 1 minute max.
- Contact resistance (Initial value): 400 mohm max.
- Insulation resistance: 100 Mohm min. (at 500 VDC)
- Dielectric strength: Between each terminal of the same polarities: 1,000 VAC 50/60 Hz 1 min, Between live-metallic part and ground: 1,500 VAC 50/60 Hz 1 min, Between each terminal and non-live-metallic part: 1,500 VAC 50/60 Hz 1 min
- Impulse withstand voltage: Between live-metallic part and ground: 2.5 kV, Between each terminal and non-live-metallic part: 2.5 kV
- Durability: Electrical: 200,000 operations min. (5 A at 125 VAC), Mechanical: 10 million operations min.
- Vibration resistance: Malfunction: 10 to 55 Hz, 1.5 mm double amplitude
- Shock resistance: Destruction: 1,000 m/s2 max., Malfunction: 500 m/s2 max.
- Degree of protection: IP67
- Classification of protection against electric shock: Class I (with earth wire)
- Operating Force (OF): Standard value 11.77 N max.
- Release Force (RF): Standard value 4.41 N min.
- Pre-Travel (PT): Standard value 1.8 mm max.
- Movement Differential (MD): Standard value 0.2 mm max.
- Over-Travel (OT): Standard value 3 mm min.
- Operating Position (OP): Standard value 15.7±1 mm
