OMRON D4C-3024-M1J LIMIT SWITCH
Quick Overview
Manufactured By: OMRON
Manufacturer Part Number: D4C-3024-M1J
IMS Product Code: 1801596
Packaging: Sold Individually
Description:

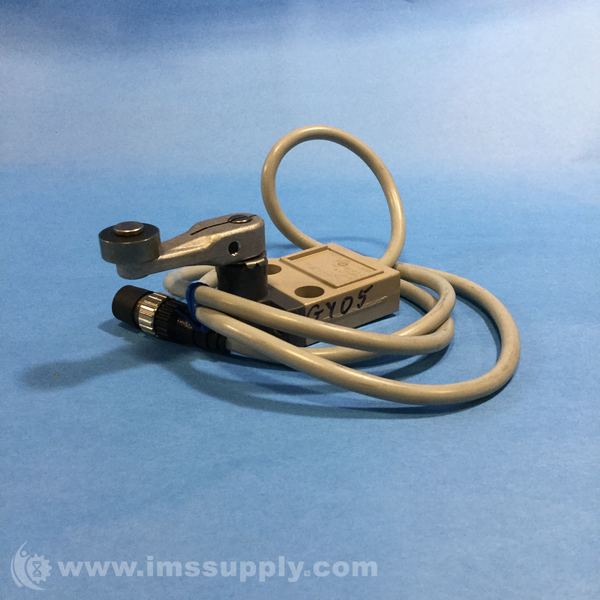

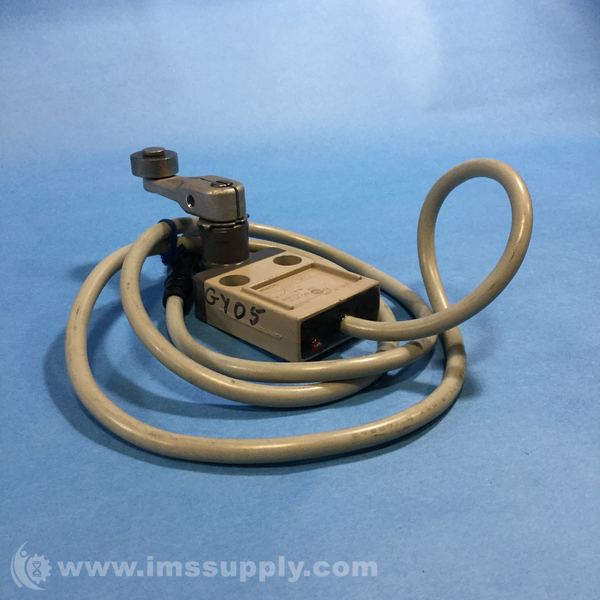

Omron D4C-3024-M1J Limit Switch
Compact limit switch with high seal properties and durability.
Specifications
- Protective Structure: IP67
- Durability (Mechanical): Over 10 million times
- Durability (Electrical): 200,000 times or more (AC125V 5A resistive load)
- Allowable Operating Speed: 0.1mm to 0.5m/s (for plunger type), 1mm to 1m/s (for roller lever type)
- Allowable Operating Frequency (Mechanical): 120 times/min
- Allowable Operating Frequency (Electrical): 30 times/min
- Rated Frequency: 50/60Hz
- Insulation Resistance: 100MO or more (at DC500V mega)
- Contact Resistance (Initial Value): 250mO or less (with 2m cord), 300mO or less (with 3m cord), 400mO or less (with 5m cord)
- Withstand Voltage: AC1,000V 50/60Hz 1min (Between same-polarity terminals), AC1,500V 50/60Hz 1min (Between live metal parts and earth), AC1,500V 50/60Hz 1min (Between each terminal and non-current-carrying metal parts)
- Rated Insulation Voltage (Ui): 300V (EN60947-5-1)
- Pollution Level (Usage Environment): 3 (EN60947-5-1)
- Short Circuit Protection Device: 10A fuse type gI or gG (IEC60269)
- Conditional Short Circuit Current: 100A (EN60947-5-1)
- Rated Sealed Thermal Current (I the): 5A, 4A, 0.5A (EN60947-5-1)
- Electric Shock Protection Class: Class I (with earth wire)
- Vibration (Malfunction): 10 to 55Hz, double amplitude 1.5mm
- Shock Resistant (Durability): Up to 1,000m/s2
- Shock Resistant (Malfunction): Maximum 500m/s2
- Ambient Temperature: -10 to +70 degrees C (but do not freeze)
- Ambient Humidity: 35~95% RH
- Mass: Approx. 360g (with VCTF3m), approx. 540g (with VCTF5m)
Used:
A previously used, fully functional product that may have some signs of cosmetic wear.
