OMRON D4C-3202 LIMIT SWITCH
Quick Overview
Manufactured By: OMRON
Manufacturer Part Number: D4C-3202
IMS Product Code: 2127380
Packaging: Sold Individually
Description:

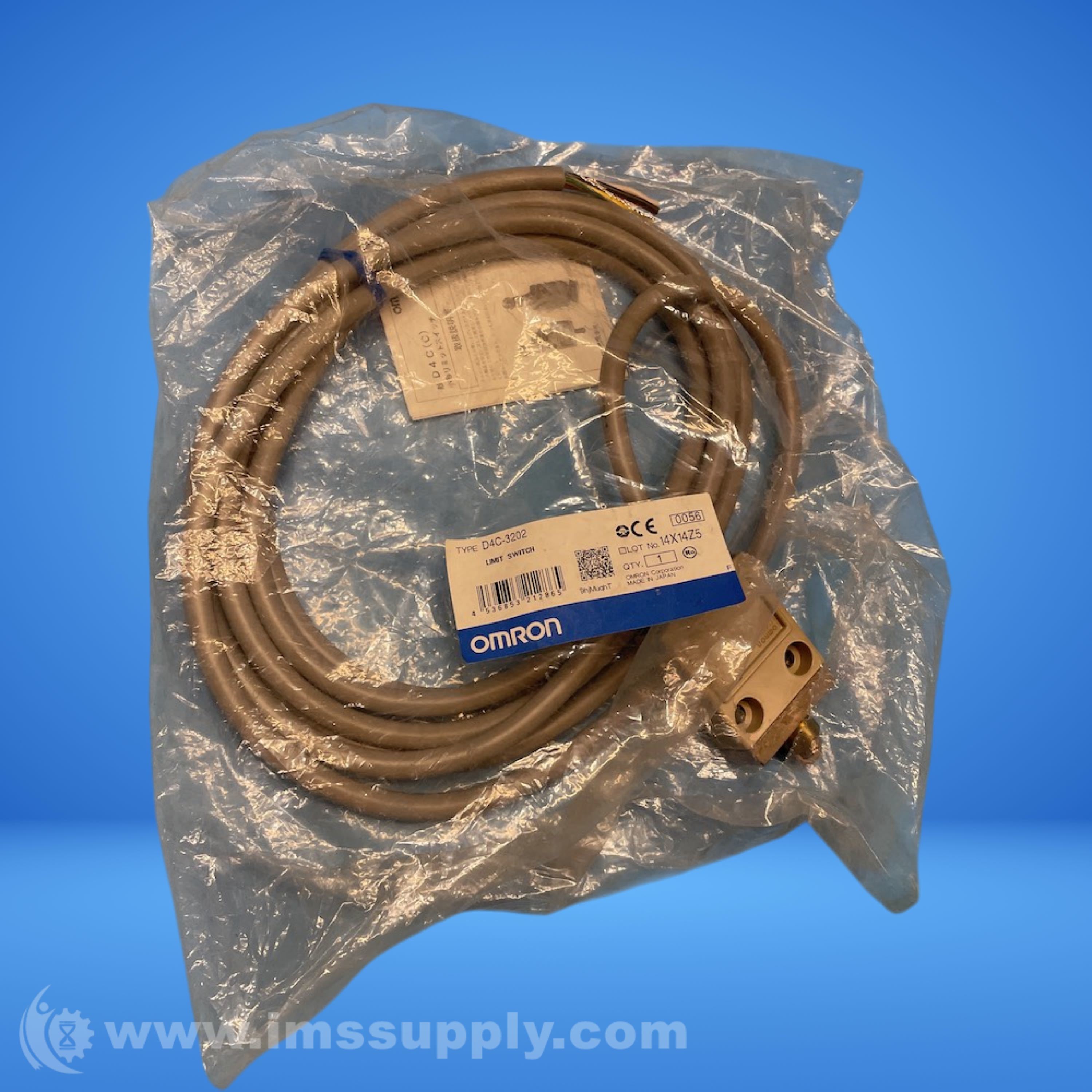

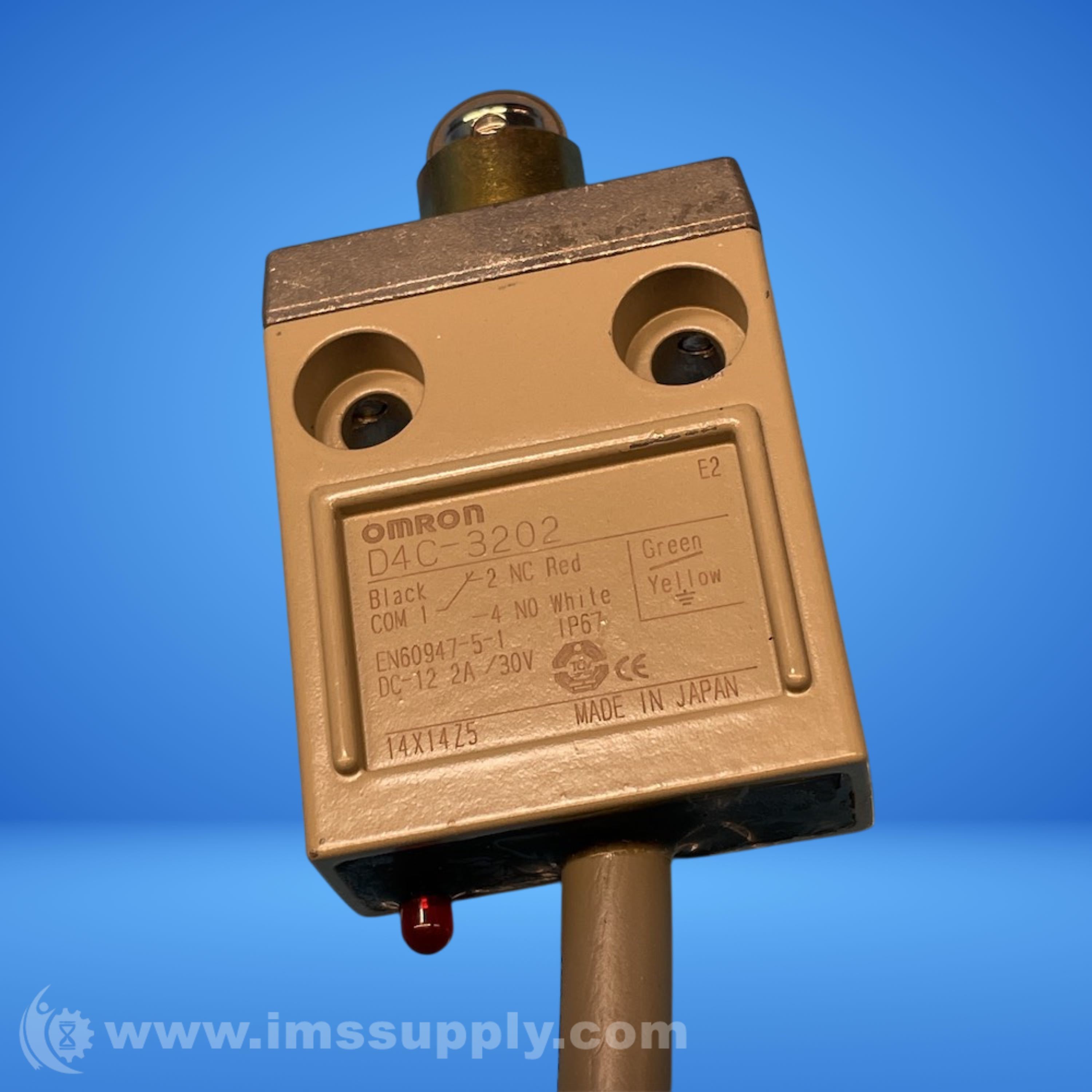

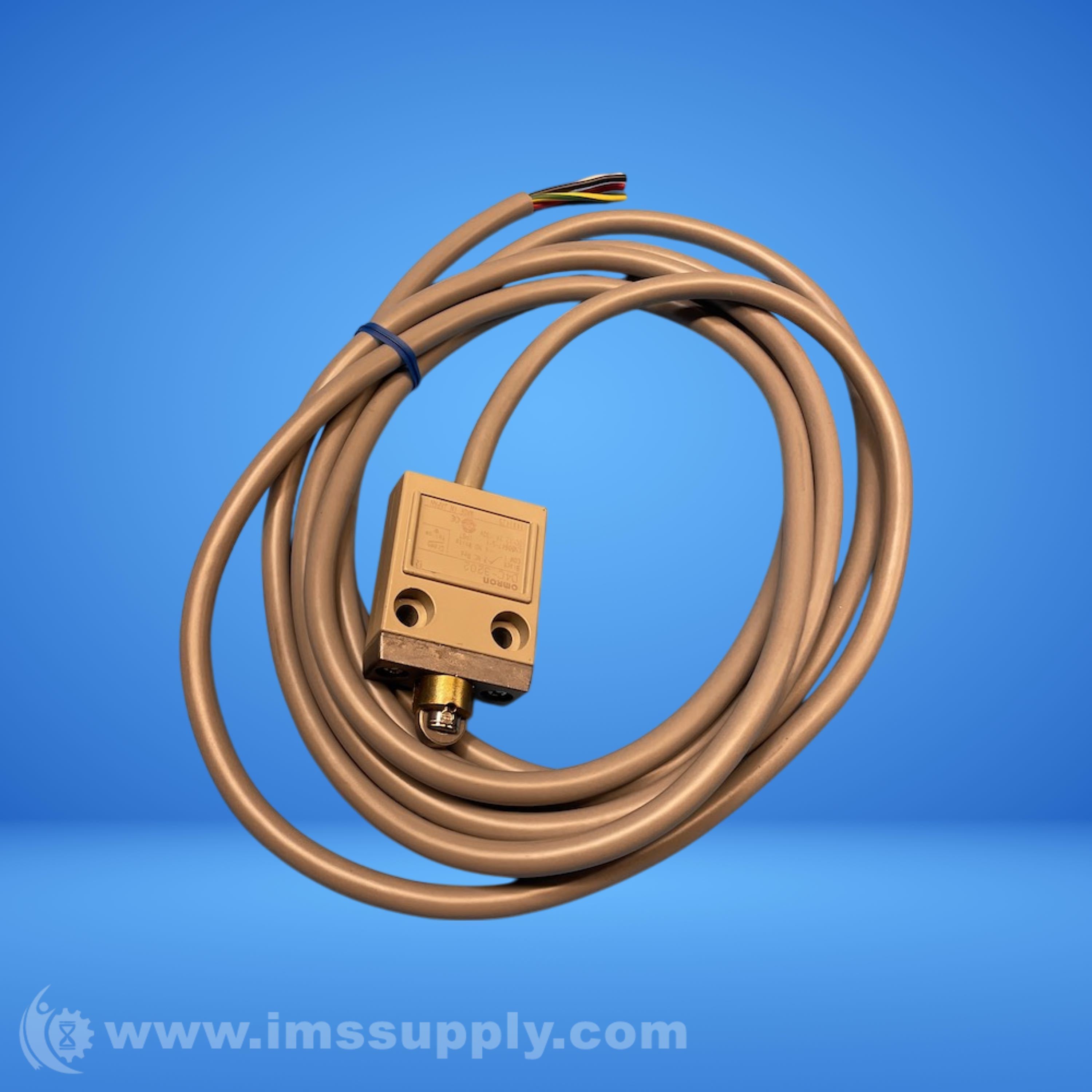

Omron D4C-3202 Limit Switch
Enclosed limit switch with roller plunger actuator, SPDT contact form, 4 A at 30 VDC electrical rating, and IP67 degree of protection.
Specifications
- Actuator: Roller plunger 12 dia. x 4.4 Sintered stainless steel roller
- Electrical ratings: 4 A at 30 VDC
- Contact form: SPDT
- Ratings (DC): Resistive load: 4 A at 30 VDC, Lamp load: 2 A at 30 VDC, Inductive load: 3 A at 30 VDC, Motor load: 3 A at 30 VDC
- Inrush current: NC: 20 A max., NO: 10 A max.
- Indicator: LED, Light when not operating, 30 VDC, Leakage current: Approx. 1.7 mA

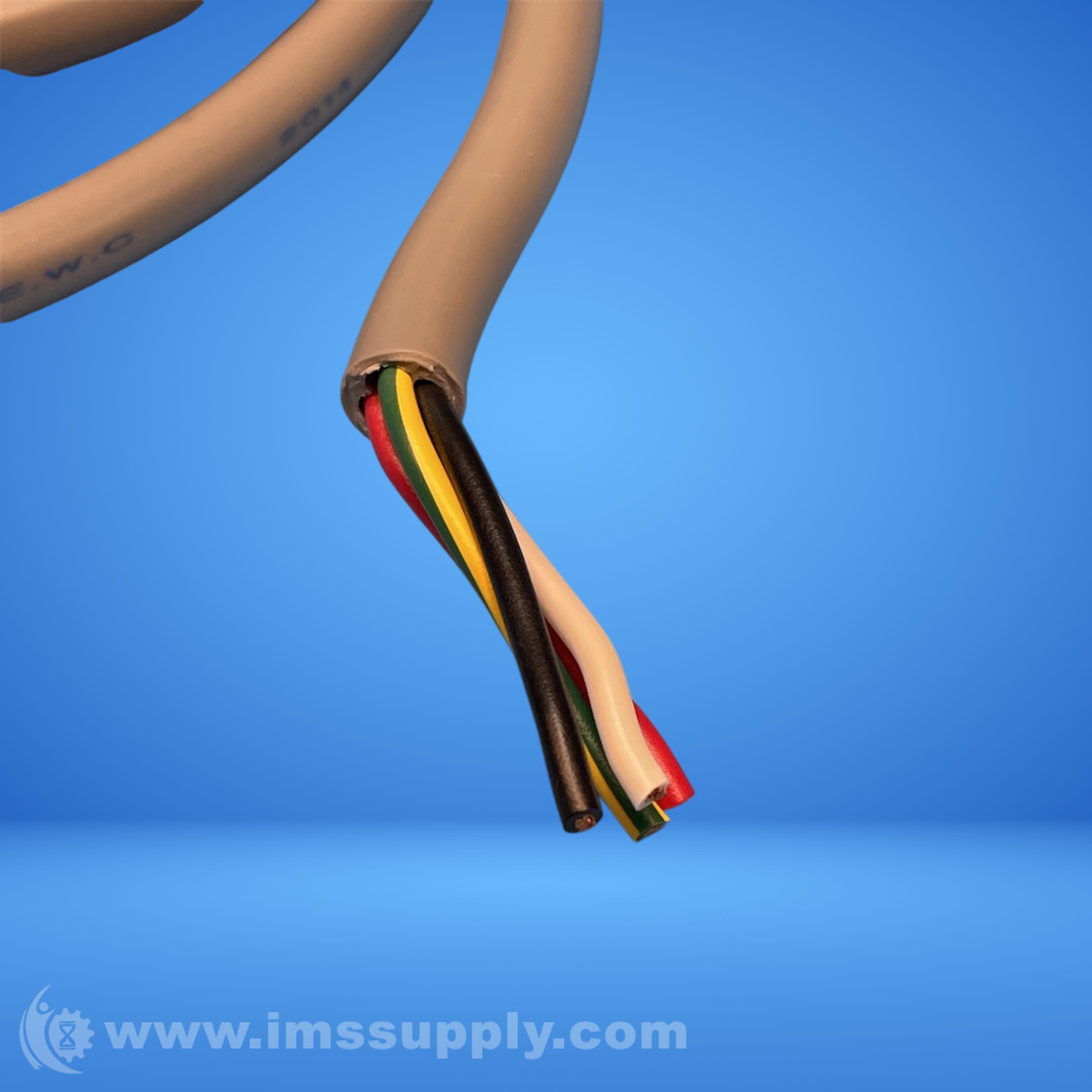

- Cable specifications: VCTF oil-resistant cable, 4 cores, 3 m, Nominal sectional area: 0.75 mm2, Diameter: 7.6 dia.
- Ambient temperature: Operating: -10 to 70 degrees C (with no icing)
- Ambient humidity: 35 to 95 %
- Degree of protection: IP67
- Operating Force (OF): 11.77 N max.
- Release Force (RF): 4.41 N min.
- Pre-Travel (PT): 1.8 mm max.
- Movement Differential (MD): 0.2 mm max.
- Over-Travel (OT): 3 mm min.
- Operating Position (OP): 28.5±1 mm
New - Open Box:
A new, unused item with no signs of wear. The item has its original packaging but it is not sealed.
Availability: 1 In Stock
Ships today if ordered in the next 4 hours and 33 minutes.
New - Missing Box:
A new, unused item with no signs of wear. The item may be missing the original packaging.
Availability: 1 In Stock
Ships today if ordered in the next 3 hours and 33 minutes.
