OMRON D4CC-3032 LIMIT SWITCH
Quick Overview
Manufactured By: OMRON
Manufacturer Part Number: D4CC-3032
IMS Product Code: 1811168
Packaging: Sold Individually
Description:

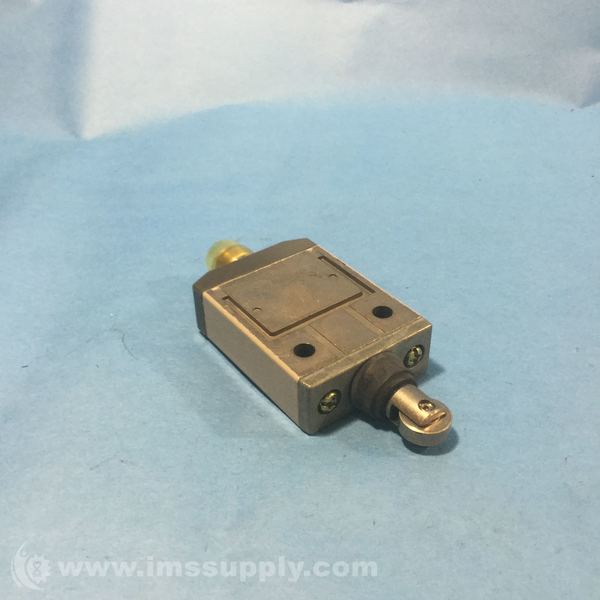

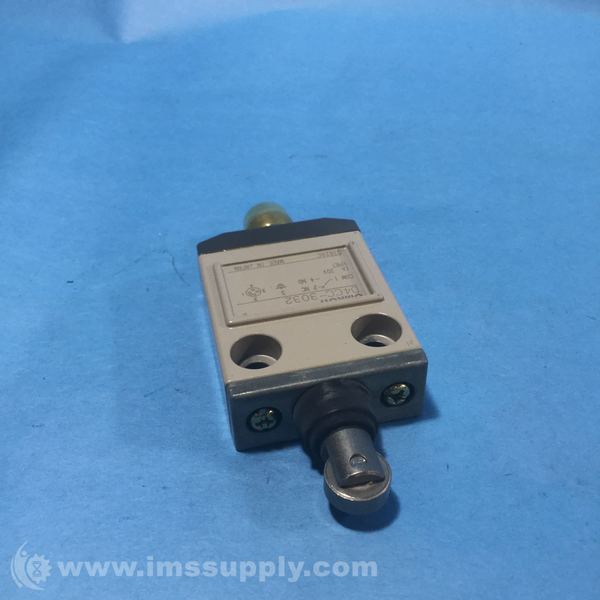

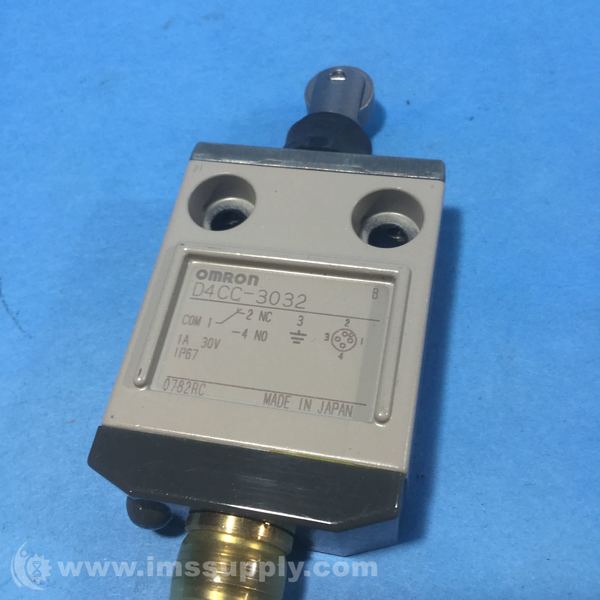

Omron D4CC-3032 Limit Switch
Miniature Limit Switch with Sealed roller plunger actuator, SPDT contact form, rated for 1 A at 30 VDC.
Specifications
- Actuator: Sealed roller plunger 12 dia. x 4.4 Stainless steel roller
- Electrical ratings: 1 A at 30 VDC
- Contact form: SPDT
- Ambient temperature: Operating: -10 to 70 degrees C (with no icing)
- Ambient humidity: 35 to 95 %
- Degree of protection: IP67
- Operating Force (OF): 17.65 N max.
- Release Force (RF): 4.41 N min.
- Pre-Travel (PT): 1.8 mm max.
- Movement Differential (MD): 0.2 mm max.
- Over-Travel (OT): 3 mm min.
- Operating Position (OP): 34.3±1 mm
- Total Travel (TT): 5 mm
- Termination Type: Screw
- Weight: 119.5 g
Used:
A previously used, fully functional product that may have some signs of cosmetic wear.
Availability: 3 In Stock
