OMRON D4F-220-5D LIMIT SWITCH
Quick Overview
Manufactured By: OMRON
Manufacturer Part Number: D4F-220-5D
IMS Product Code: 1904408
Packaging: Sold Individually
Description:

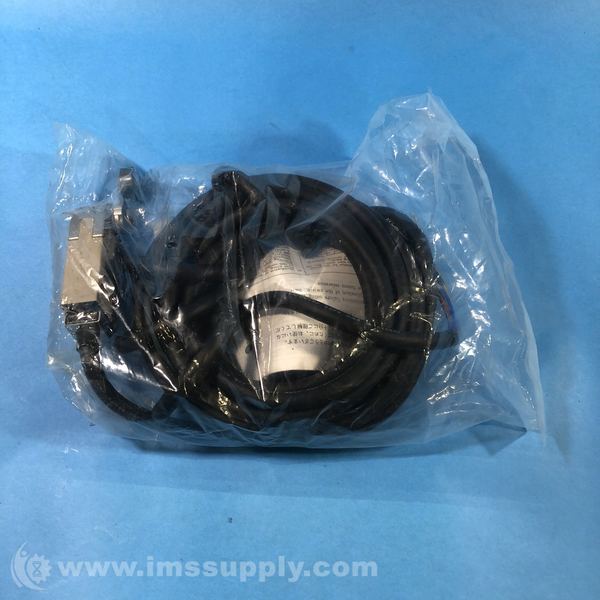

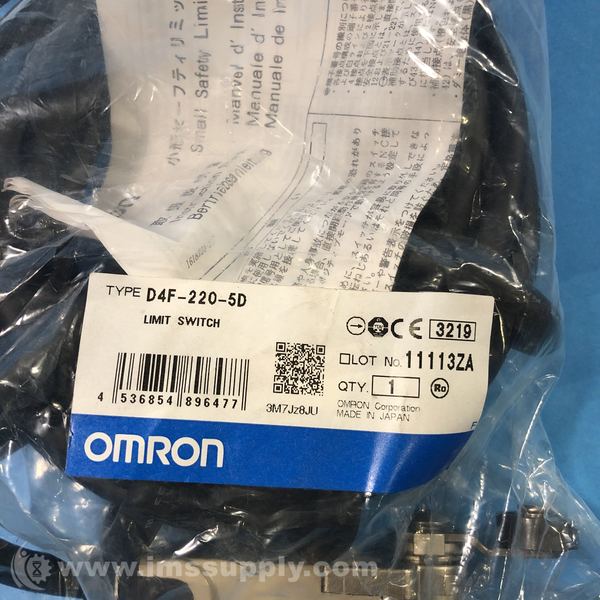

Omron D4F-220-5D Limit Switch
Small safety limit switch with a roller lever, slow action operating mechanism, and 2NC contacts.
Specifications
- Actuator: Roller lever
- Operating mechanism: Slow action
- Contact form: 2NC
- Cable specifications: UL Style 2464, 5 m
- Degree of protection: IP67
- Frequency: 50/60 Hz
- Load: General load/Micro load
- Earth terminal: With earth wire
- Ambient temperature: Operating: -30 to 70 degrees C (with no icing)
- Ambient humidity: 95 %RH max.
- Permissible operating speed: 1 mm/s to 0.5 m/s
- Permissible operating frequency: Electrical: 30 operations / 1 minute max., Mechanical: 120 operations / 1 minute max.
- Contact resistance (Initial value): 700 mO max.
- Insulation resistance: Between each terminal of the same polarities: 100 MO min., Between each terminal of the different polarities: 100 MO min., Between live-metallic part and ground: 100 MO min., Between each terminal and non-live-metallic part: 100 MO min.
- Impulse withstand voltage: Between each terminal of the same polarities: 2.5 kV, Between each terminal of the different polarities: 4 kV, Between each terminal and ground: 4 kV
- Durability: Mechanical: 10 million operations min.
- Vibration resistance: Malfunction: 10 to 55 Hz, 0.75 mm single amplitude
- Shock resistance: Destruction: 1000 m/s2 min., Malfunction: 300 m/s2 min.
- Classification of protection against electric shock: Class I (with earth wire)
- Operating Force (OF): Standard value 5 N max.
- Release Force (RF): Standard value 0.5 N min.
- Pre-Travel (PT): PT1 (11-12, 21-22): 6±3 degrees (NC), PT1 (31-32, 41-42): 9±3 degrees (NC)
- Over-Travel (OT): Standard value 40 degrees min.
- Total Travel (TT): Reference value 55 degrees
- Direct Opening Force: Standard value 20 N min.
- Direct Opening Travel: Standard value 18 degrees min.
