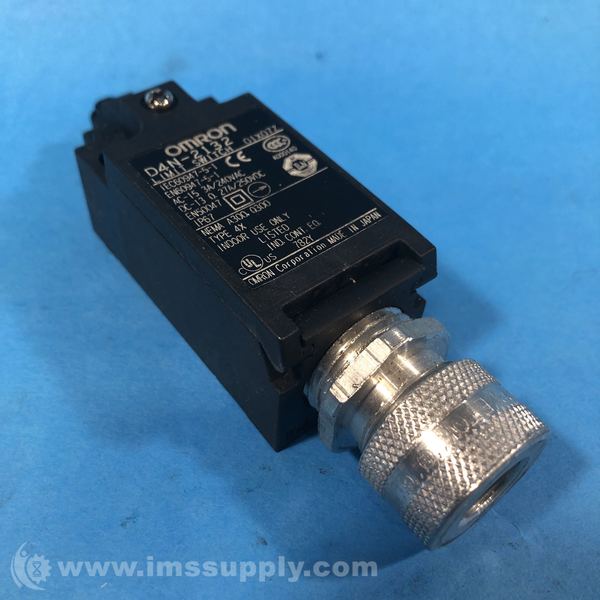

OMRON D4N-2132 LIMIT SWITCH
Quick Overview
Manufactured By: OMRON
Manufacturer Part Number: D4N-2132
IMS Product Code: 1942221
Packaging: Sold Individually
Description:
Omron D4N-2132 Limit Switch
Safety Limit Switch with Roller Plunger Actuator, G1/2 Conduit, 1NC/1NO Snap Action Contacts
Specifications
- Actuator: Roller plunger 9.5 dia. x 5 Resin roller
- Operating mechanism: Snap action
- Contact form: 1NC/1NO
- Degree of protection: IP67
- Conduit: G1/2
- Ambient temperature: -30 to 70 degrees C
- Ambient humidity: 95 %RH max.
- Operating Force (OF): 6.5 N max.
- Release Force (RF): 1.5 N min.
- Pre-Travel (PT): 2 mm max.
- Movement Differential (MD): 1 mm max.
- Over-Travel (OT): 4 mm min.
- Total Travel (TT): 6 mm
- Direct Opening Force: 20 N min.
- Direct Opening Travel: 3.2 mm min.
- Contact resistance (Initial value): 25 mO max.
- Insulation resistance: 100 MO min.
- Classification of protection against electric shock: Class II (Double insulation)
- Contact Material: AgNi
- Switch Function: SPDT
- Country of Origin: Japan
- Series: D4N
New - Missing Box:
A new, unused item with no signs of wear. The item may be missing the original packaging.
Availability: 1 In Stock
Ships today if ordered in the next 11 hours and 38 minutes.
