OMRON D4N-2162 SAFETY LIMIT SWITCH
Quick Overview
Manufactured By: OMRON
Manufacturer Part Number: D4N-2162
IMS Product Code: 1923172
Packaging: Sold Individually
Description:

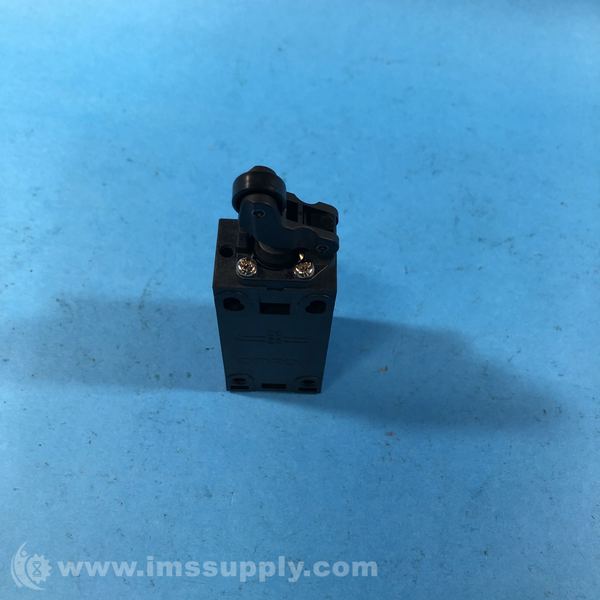

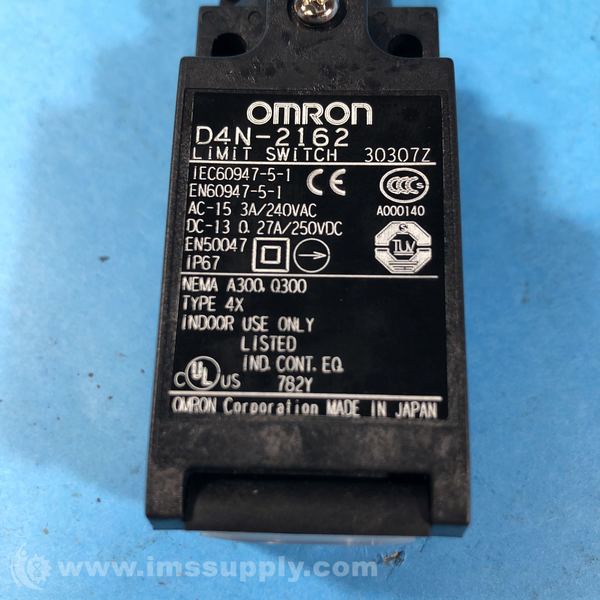

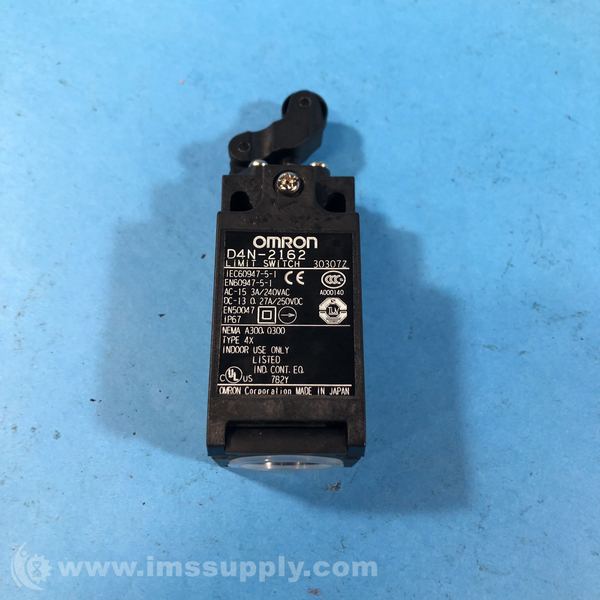

Omron D4N-2162 Safety Limit Switch
Safety Limit Switch with One-way roller arm lever, G1/2 conduit, 1NC/1NO snap-action contacts, IP67 protection.
Specifications
- Actuator: One-way action roller arm lever 12.5 dia x 5 Resin roller R20
- Operation type: Horizontal operation type
- Operating mechanism: Snap action
- Contact form: 1NC/1NO
- Degree of protection: IP67
- Conduit: G1/2
- Number of conduit: 1
- Ambient temperature: Operating: -30 to 70 degrees C (with no icing)
- Ambient humidity: 95 %RH max.
- Permissible operating frequency: 30 operations / 1 minute max.
- Contact resistance (Initial value): 25 mohm max.
- Insulation resistance: 100 Mohm min.
- Mechanical durability: 15,000,000 operations min.
- Vibration resistance: Malfunction: 10 to 55 Hz, 0.75 mm single amplitude
- Shock resistance: Destruction: 1000 m/s2 Malfunction: 300 m/s2
- Operating Force (OF): 5 N max.
- Release Force (RF): 0.8 N min.
- Pre-Travel (PT): 4 mm max.
- Movement Differential (MD): 1.5 mm max.
- Over-Travel (OT): 5 mm min.
- Operating Position (OP): 37±0.8 mm
- Total Travel (TT): 9 mm
- Direct Opening Force: 20 N min.
- Direct Opening Travel: 5.8 mm min.
- Contact Current Rating: 10 A
- Contact Voltage Rating (AC): 240 V
- Depth: 30 mm
- Height: 57.5 mm
- Length: 31 mm
- Width: 31 mm
New - Missing Box:
A new, unused item with no signs of wear. The item may be missing the original packaging.
