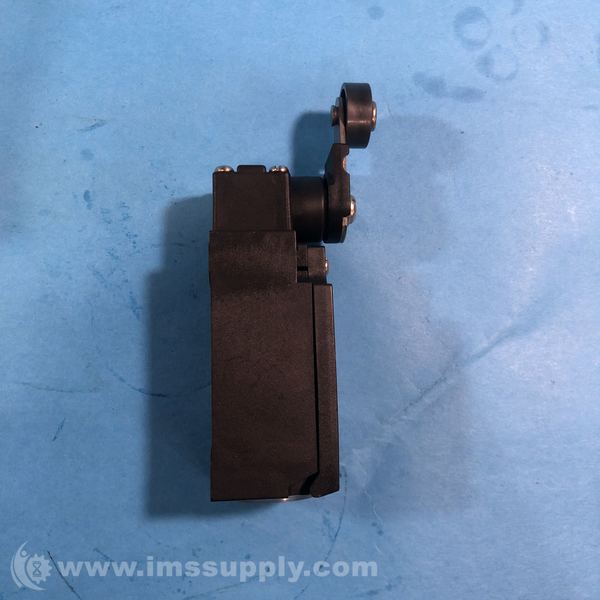

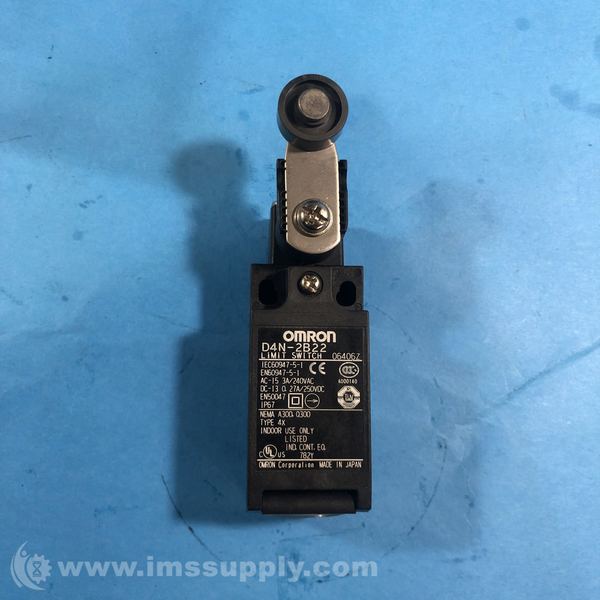

OMRON D4N-2B22 SAFETY LIMIT SWITCH
Quick Overview
Manufactured By: OMRON
Manufacturer Part Number: D4N-2B22
IMS Product Code: 1915683
Packaging: Sold Individually
Description:
Omron D4N-2B22 Safety Limit Switch
Safety Limit Switch with Roller Lever, G1/2 Conduit, 2NC Contacts
Specifications
- Actuator: Roller lever 17.5 dia. x 6.8
- Operating mechanism: Slow action
- Contact form: 2NC
- Degree of protection: IP67
- Conduit: G1/2
- Number of conduit: 1
- Ambient temperature: -30 to 70 degrees Celsius
- Ambient humidity: 95 %RH max.
- Permissible operating frequency: 30 operations / 1 minute max.
- Contact resistance (Initial value): 25 mohm max.
- Insulation resistance: 100 Mohm min.
- Impulse withstand voltage: Between each terminal of the same polarities: 2.5 kV, Between each terminal of the different polarities: 4 kV, Between each terminal and non-live-metallic part: 6 kV
- Durability: Mechanical: 15,000,000 operations min.
- Vibration resistance: Malfunction: 10 to 55 Hz, 0.75 mm single amplitude
- Shock resistance: Destruction: 1000 m/s2, Malfunction: 300 m/s2
- Classification of protection against electric shock: Class II (Double insulation)
- Operating Force (OF): 5 N max.
- Release Force (RF): 0.5 N min.
- Pre-Travel (PT): 18 to 27 degrees
- Over-Travel (OT): 40 degrees min.
- Total Travel (TT): 80 degrees
- Direct Opening Force: 20 N min.
- Direct Opening Travel: 50 degrees min.
New - Missing Box:
A new, unused item with no signs of wear. The item may be missing the original packaging.
Availability: 1 In Stock
