OMRON D4N-6B32 SAFETY LIMIT SWITCH
Quick Overview
Manufactured By: OMRON
Manufacturer Part Number: D4N-6B32
IMS Product Code: 1855426
Packaging: Sold Individually
Description:

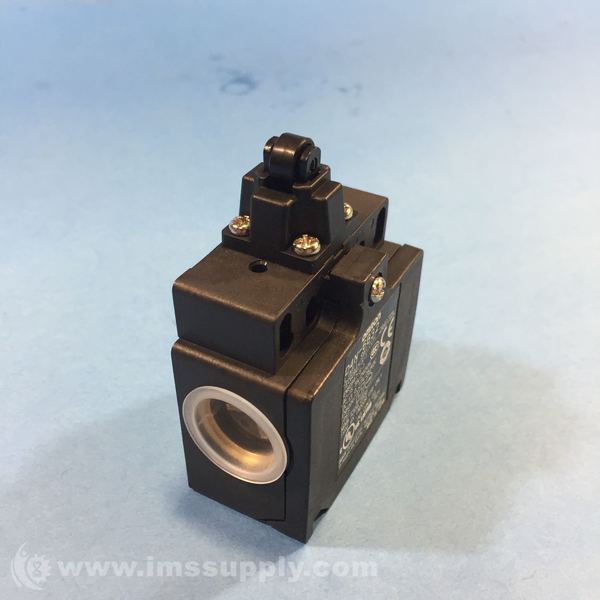

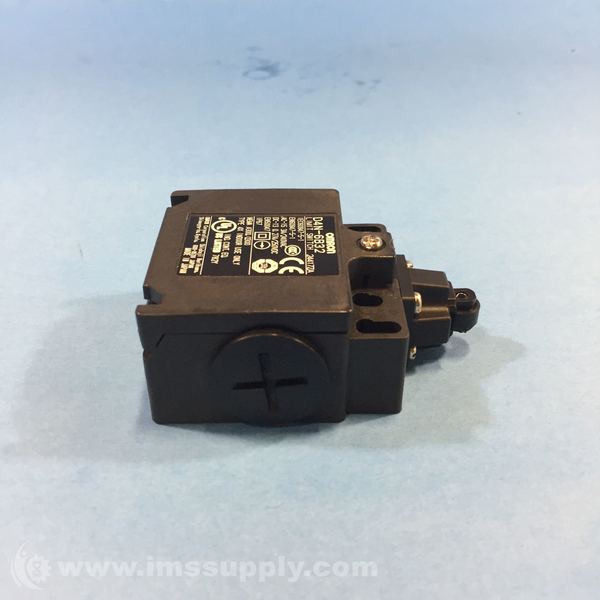

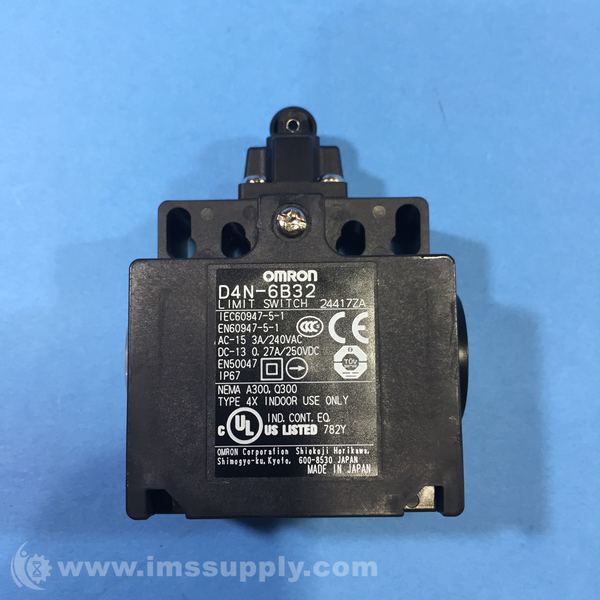

Omron D4N-6B32 Safety Limit Switch
Safety limit switch with roller plunger actuator, 2NC contacts, and IP67 protection.
Specifications
- Actuator: Roller plunger 9.5 dia. x 5 Resin roller
- Operating mechanism: Slow action
- Contact form: 2NC
- Degree of protection: IP67
- Conduit: G1/2
- Number of conduit: 2
- Ambient temperature: -30 to 70 degrees C
- Ambient humidity: 95 %RH max.
- Operating Force (OF): 6.5 N max.
- Release Force (RF): 1.5 N min.
- Pre-Travel (PT): 2 mm max.
- Over-Travel (OT): 4 mm min.
- Total Travel (TT): 6 mm
- Direct Opening Force: 20 N min.
- Direct Opening Travel: 3.2 mm min.
- Operating Speed: 0.05 to 1 m/s
- Contact Resistance: 25 mO max.
- Insulation Resistance: 100 MO min.
- Dielectric Strength: 1,000 VAC, 50/60 Hz for 1 min between terminals of same polarity, 2,500 VAC, 50/60 Hz for 1 min between current-carrying metal parts and ground, and between each terminal and non-current-carrying metal parts
- Rated Voltage: 250 VAC, 125 VDC
- Rated Current: 5A (resistive load)
- Durability: Mechanical: 15,000,000 operations min., Electrical: 500,000 operations min. (rated load)
- Weight: Approx. 215 g
- Mounting: Front Mounting
New - Missing Box:
A new, unused item with no signs of wear. The item may be missing the original packaging.
