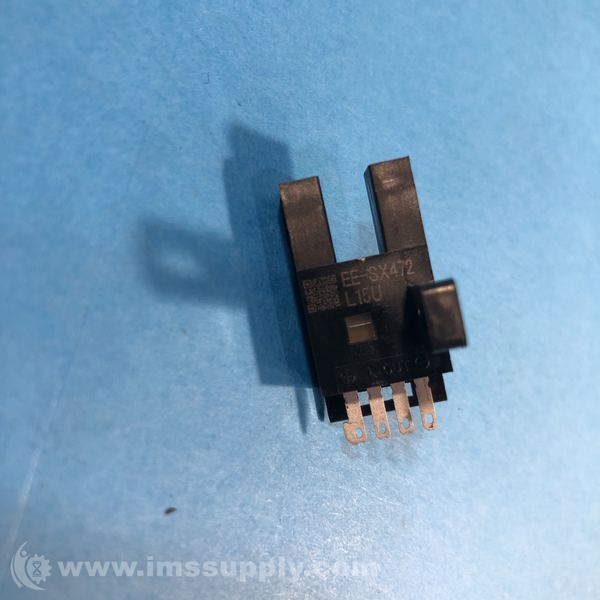

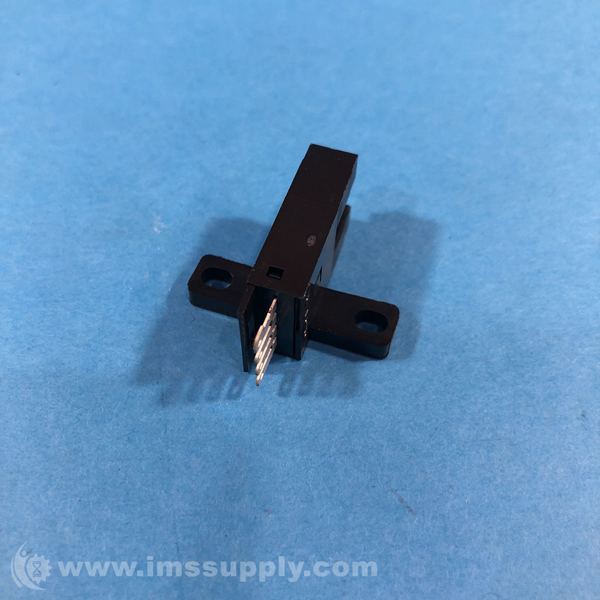

OMRON EE-SX472 PHOTOMICROSENSOR
Quick Overview
Manufactured By: OMRON
Manufacturer Part Number: EE-SX472
IMS Product Code: 987267
Packaging: Sold Individually
Description:
Omron EE-SX472 Photomicrosensor
Slot-type Photomicrosensor with connector or pre-wired models (Non-modulated)
Specifications
- type: Grooved Type (T-shaped) (Slot center 7 mm)
- luminous method: Non-modulated
- sensing method: Through-beam type
- sensing distance: Slot width: 5 mm
- operation mode: Light-ON
- standard sensing object: Opaque, 2 x 0.8 mm min.
- differential distance elements: 0.025 mm max.
- light source (peak wavelength): Infrared LED (940 nm)
- indicator: Light indicator (red)
- power supply voltage: 5 to 24 VDC ±10% ripple (p-p) 10 % max.
- current consumption: 12 mA (L terminal open)
- control output: NPN open collector output
- load power supply voltage: 5 to 24 VDC
- load current: 100 mA max.
- residual voltage: at 100 mA load current: 0.8 V max., at 40 mA load current: 0.4 V max.
- protection circuits: Output short-cut protection
- response frequency elements: 1 kHz min.
- illumination on the surface receiver: Fluorescent light: 1000 lx max.
- ambient temperature: Operating: -25 to 55 degrees Celsius, Storage: -30 to 80 degrees Celsius
- ambient humidity: Operating: 5 to 85 %, Storage: 5 to 95 %
- vibration resistance: Destruction: 20 to 2000 Hz, peak acceleration 100 m/s2
- shock resistance: Destruction: 500 m/s2 for 3 times each in X, Y, and Z directions
- degree of protection: IP50
- connection method: Connector type
- weight: Package: Approx. 2.4 g
- material: Case: Polybutylene terephthalate (PBT), Emitter/Receiver Cover: Polycarbonate (PC)
New - Missing Box:
A new, unused item with no signs of wear. The item may be missing the original packaging.
Availability: 1 In Stock
Ships today if ordered in the next 9 hours and 54 minutes.
