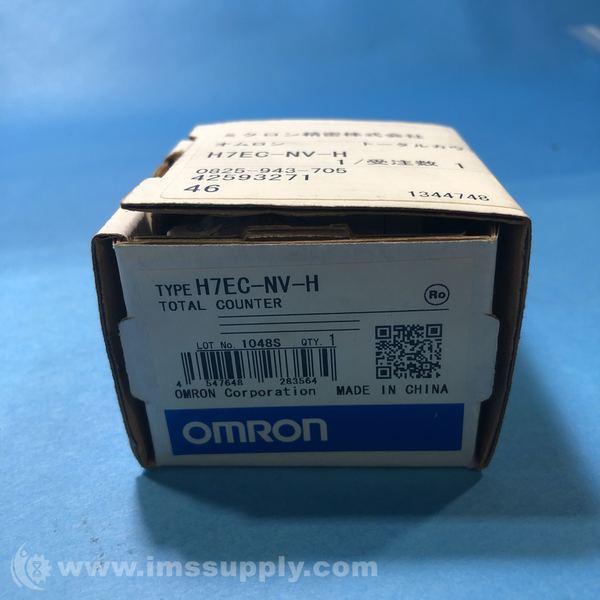

OMRON H7EC-NV-H TOTAL COUNTER
Quick Overview
Manufactured By: OMRON
Manufacturer Part Number: H7EC-NV-H
IMS Product Code: 1904680
Packaging: Sold Individually
Description:
Omron H7EC-NV-H Total Counter
Miniature Total Counter, 8 digit, Voltage input, backlight Equipped, Reset key Equipped, Light gray
Specifications
- Count range: 0 to 99999999
- Max. counting speed: 30 Hz/1 kHz (switching)
- Input mode: Increment (UP)
- Reset system: External and manual reset
- Input signal: Count input, Reset
- Input method: Voltage input
- Voltage input: Hight level: 4.5 to 30 VDC, Low level: 0 to 2 VDC (Input resistance Approx. 4.7 kO)
- Display method: Backlit transmissive LCD
- Digits: 8 digit
- Character height: 8.6 mm (Black)
- Ambient temperature (Operating): -10 to 55 ?
- Ambient temperature (Storage): -25 to 65 ?
- Ambient humidity (Operating): 25 to 85 %
- Degree of protection: Case front: IP66, NEMA 4 (indoors), and UL Type 4X (indoors)
- External connection method: Screw terminal
- Case color: Light gray (Munsell 5Y7/1)
- Weight: Approx. 65 g
- Mounting method: Flush mounting
New:
A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable).
Availability: 1 In Stock
Ships on Monday, February 16, 2026
Emergency after hours shipping may be available.
Call (888) 437-6645 for more information.
