OMRON TL-Q5MC1 PROXIMITY SENSOR
Quick Overview
Manufactured By: OMRON
Manufacturer Part Number: TL-Q5MC1
IMS Product Code: 988105
Packaging: Sold Individually
Description:

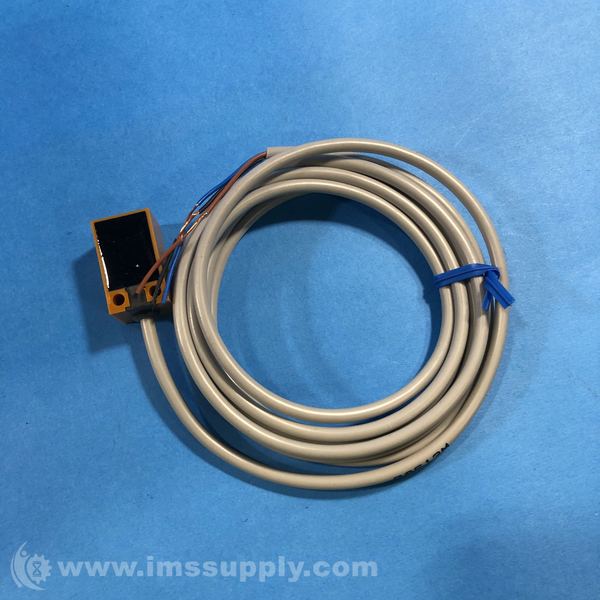

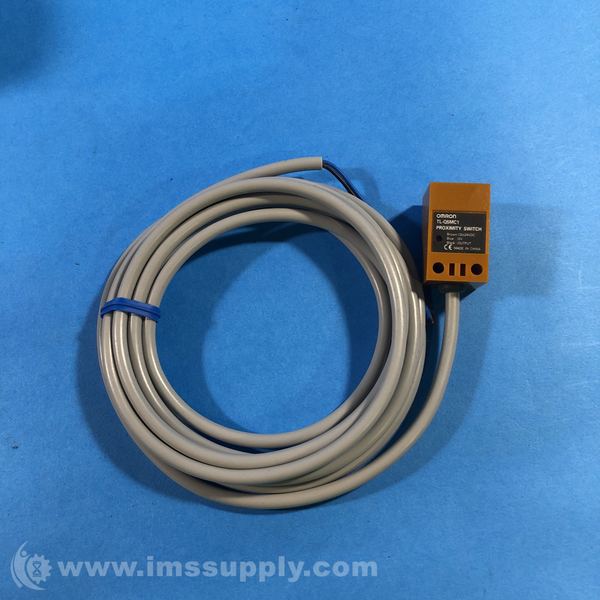

Omron TL-Q5MC1 Proximity Sensor
Rectangular Standard Proximity Sensor, Sensing distance: 5 mm, Unshielded, DC 3-wire, NPN, NO, Cable length 2 m
Specifications
- Type: Square type, Unshielded
- Sensing distance: 5 mm ±10%
- Setting distance: 0 to 4 mm
- Differential distance: 10% max. of sensing distance
- Sensing object: Ferrous metal (Sensitivity lowers with non-ferrous metals.)
- Standard sensing object: Iron 15 x 15 x 1 mm
- Response frequency: 500 Hz (Average value)
- Response time: 2 ms max.
- Power supply voltage: 12 to 24 VDC ripple (p-p) 10% max.
- Operating voltage range: 10 to 30 VDC
- Current consumption: 10 mA max. at 24 VDC
- Control output (Output type): NPN open collector
- Control output (Switching capacity): 50 mA max. (30 VDC max.)
- Control output (Residual voltage): 1 V max. (Load current 50 mA with cable length of 2 m)
- Indicator: Detection indicator (red)
- Operation mode: NO
- Protective circuit: Reverse polarity protection, Surge suppressor
- Ambient temperature (Operating): -25 to 70 degrees C
- Ambient temperature (Storage): -25 to 70 degrees C
- Ambient humidity (Operating): 35 to 95 %
- Ambient humidity (Storage): 35 to 95 %
- Temperature influence: ±20% max. of sensing distance at 23 degrees C in the temperature range of -25 to 70 degrees C
- Voltage influence: ±2.5% max. of sensing distance at rated voltage in the rated voltage ±10% range
- Insulation resistance: 5 MO min. (at 500 VDC)
- Dielectric strength: 500 VAC 50/60 Hz 1 min
- Vibration resistance: Destruction: 10 to 55 Hz, 1.5 mm double amplitude each in X, Y, and Z directions for 2 h
- Shock resistance: Destruction: 200 m/s2 10 times each in X, Y, and Z directions
- Degree of protection: IEC: IP67
- Connection method: Pre-wired models (2 m)
- Material: Case: Heat-resistant ABS resin, Sensing surface: Heat-resistant ABS resin

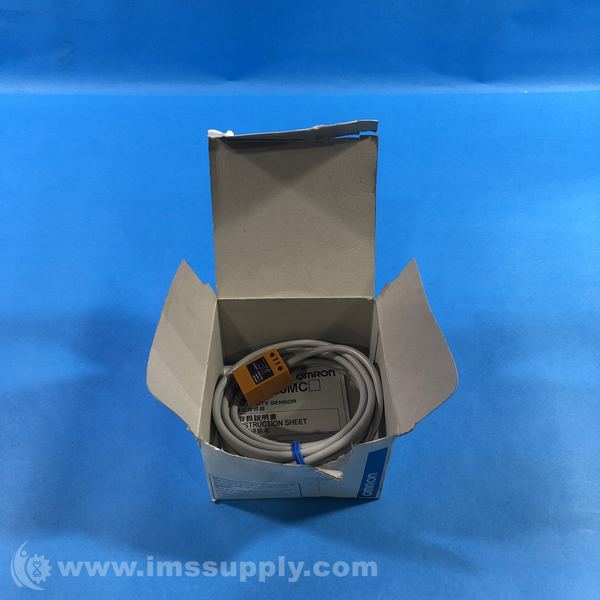

New - Open Box:
A new, unused item with no signs of wear. The item has its original packaging but it is not sealed.
Availability: 1 In Stock
Ships today if ordered in the next 6 hours and 23 minutes.
