OMRON WLD-TS LIMIT SWITCH
Quick Overview
Manufactured By: OMRON
Manufacturer Part Number: WLD-TS
IMS Product Code: 2121162
Packaging: Sold Individually
Description:

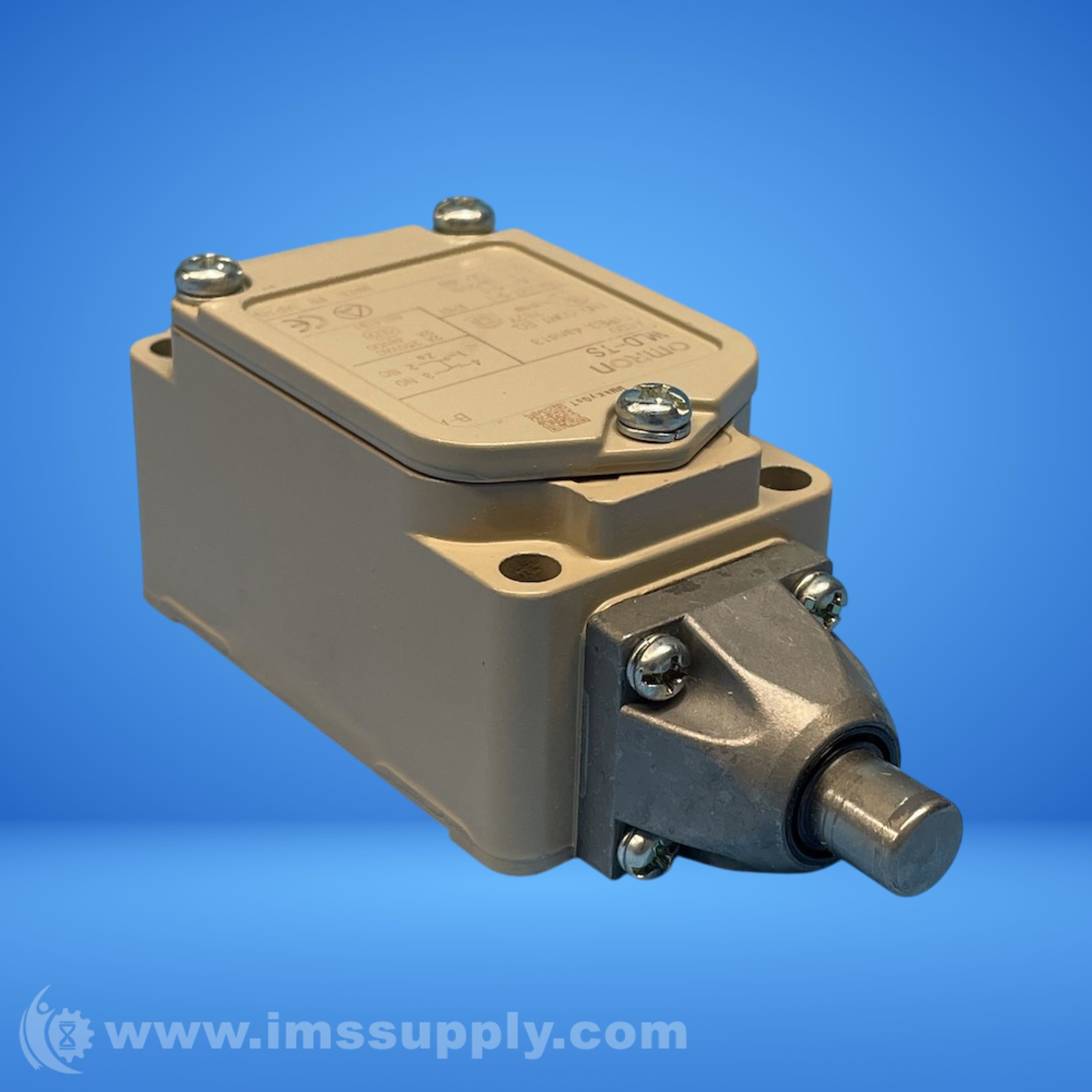

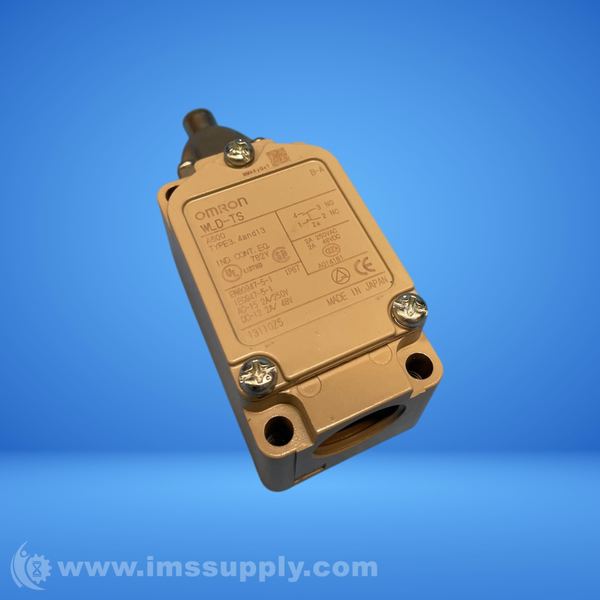

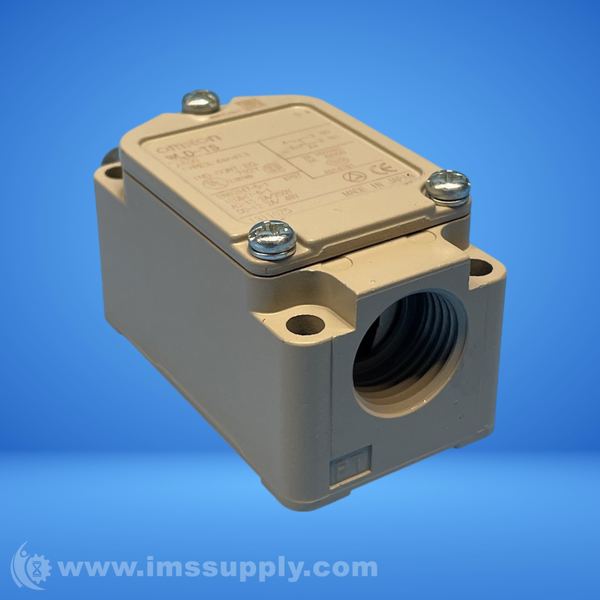

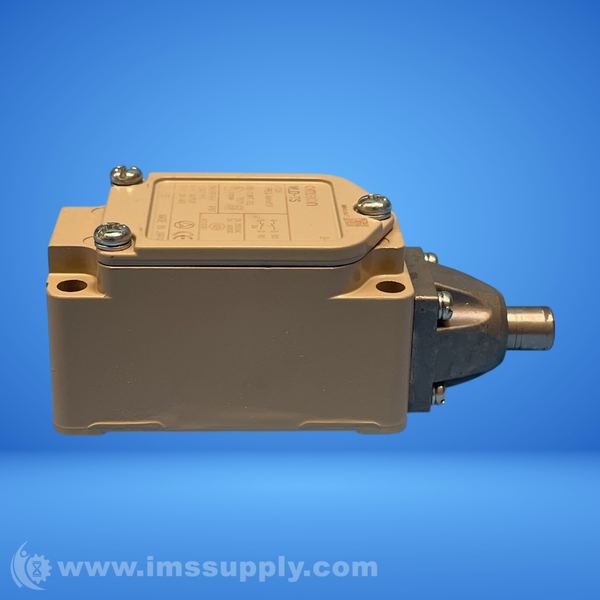

Omron WLD-TS Limit Switch
Limit Switch N.O./N.C. DPST Top Plunger Conduit 10A 500VAC 250VDC 26.67N Linear Screw Mount
Specifications
- Material: Stainless Steel
- Mechanical Life: 15 Mcycles
- Mount: Chassis Mount, Panel, Screw
- Contact Resistance: 25 mO
- Current Rating: 10 A
- Differential Travel: 1.016 mm
- Electrical Life: 750 kcycles
- Max Operating Temperature: 80 degrees C
- Max Voltage Rating (AC): 500 V
- Max Voltage Rating (DC): 250 V
- Min Operating Temperature: -10 degrees C
- Number of Poles: 1
- Operating Force: 26.67 N
- Operating Position: 34.0106 mm
- Orientation: Straight
- Overtravel: 6.4008 mm
- Pretravel: 1.7018 mm
- Switch Function: On-Mom
- Termination: Screw
- Throw Configuration: DPST, SPDT, SPST
- Type: General Purpose
- Voltage Rating (AC): 500 V
- Voltage Rating (DC): 30 V
- Depth: 42 mm
- Length: 40 mm
- Width: 88.6 mm
- Environmental Classification: Dust Tight, IP67, Waterproof
- RoHS: Compliant
New - Open Box:
A new, unused item with no signs of wear. The item has its original packaging but it is not sealed.
Availability: 1 In Stock
Ships today if ordered in the next 10 hours and 35 minutes.
