OMRON WLD28-LDS SWITCH SNAP ACTION SPDT 10A 125V
Quick Overview
Manufactured By: OMRON
Manufacturer Part Number: WLD28-LDS
IMS Product Code: 1812958
Packaging: Sold Individually
Description:

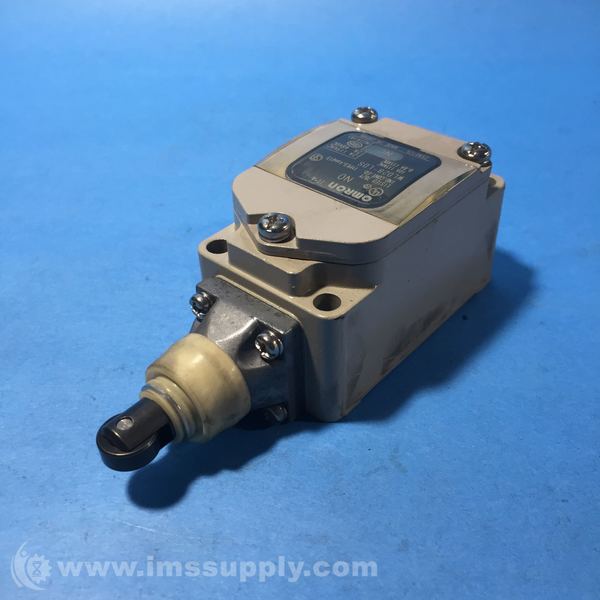

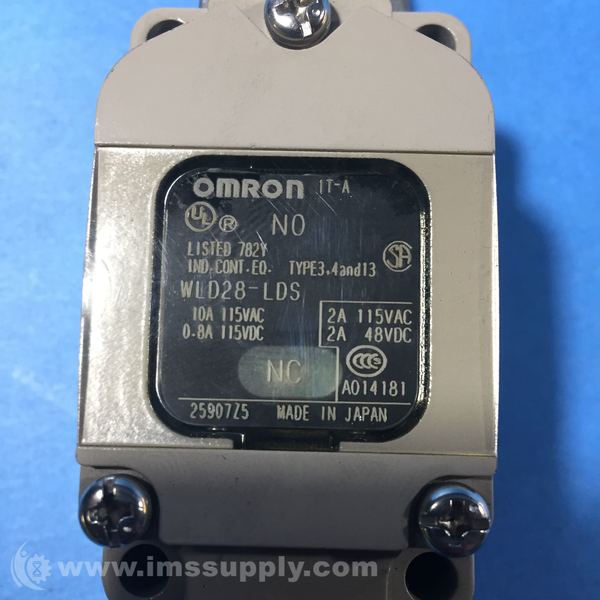

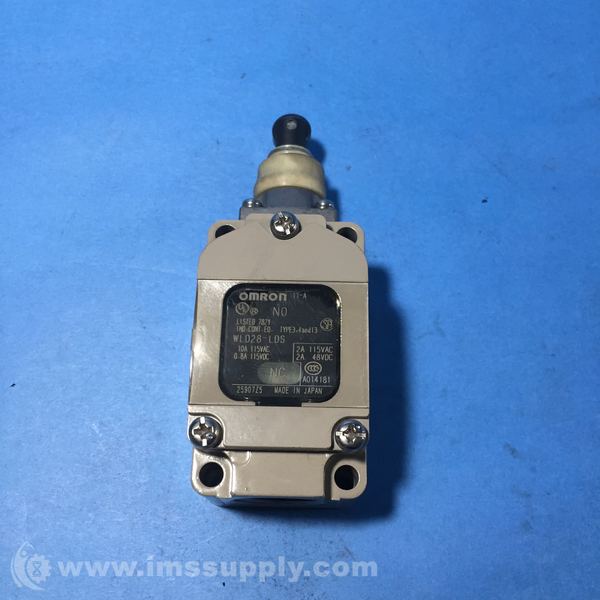

Omron WLD28-LDS Switch Snap Action SPDT 10A 125V (obsolete)
Specifications:
- Series: WL
- Circuit: SPDT (DB/DM)
- Switch Function: On-Mom
- Current Rating (Amps): 10A (AC), 6A (DC)
- Voltage Rating - AC: 125V
- Voltage Rating - DC: 30V
- Actuator Type: Roller Plunger
- Mounting Type: Chassis Mount
- Termination Style: Screw Terminal
- Ingress Protection: IP67 - Dust Tight, Waterproof
- Features: Spatter Prevention, Status Indicator
- Operating Force: 1700gf
- Release Force: 450gf
- Pretravel: 0.067" (1.7mm)
- Differential Travel: 0.040" (1.0mm)
- Overtravel: 0.219" (5.6mm)
- Operating Temperature: -10°C ~ 80°C
- Operating Position: 1.732" (44.0mm)
- Electrical Life: 750,000 Cycles
- Mechanical Life: 15,000,000 Cycles
Used:
A previously used, fully functional product that may have some signs of cosmetic wear.
