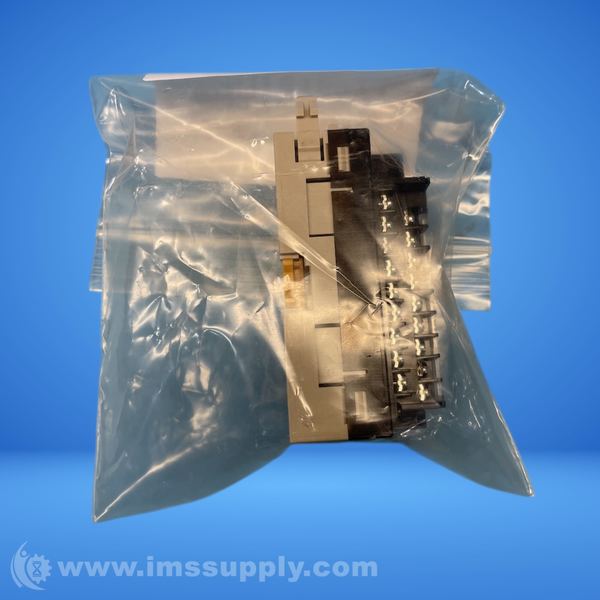

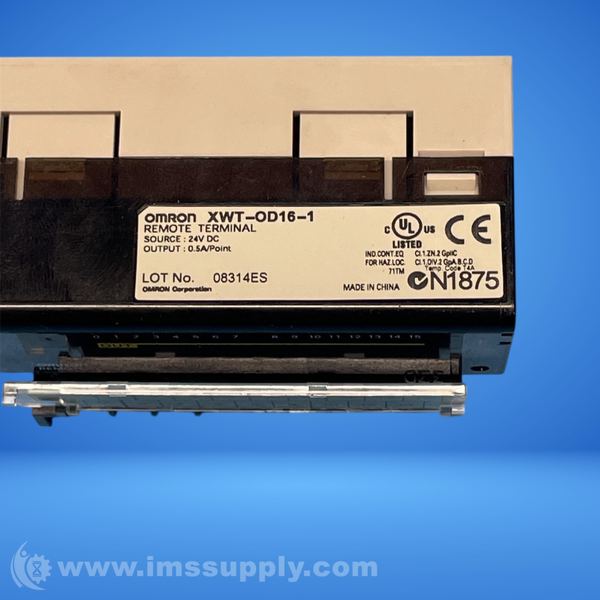

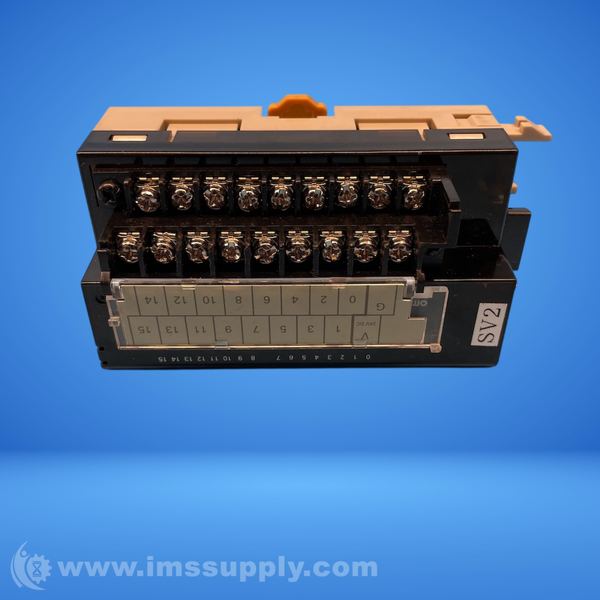

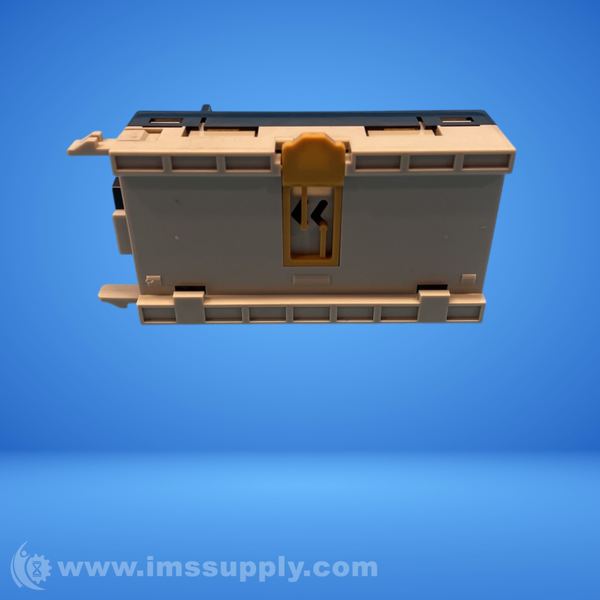

OMRON XWT-OD16-1 DIGITAL OUTPUT MODULE
Quick Overview
Manufactured By: OMRON
Manufacturer Part Number: XWT-OD16-1
IMS Product Code: 2164637
Packaging: Sold Individually
Description:
Omron XWT-OD16-1 Digital Output Module
Digital Output Module with 16 transistor outputs, 24VDC, 0.5A per output
Specifications
- Manufacturer: Omron
- Type: Digital Output Module
- Number of Channels: 16
- Output Type: Transistor
- Voltage Rating: 24VDC
- Current Rating: 0.5A
- Isolation: Yes
- Mounting Type: DIN Rail
- Weight: 2.25 lbs (1.02 kg)
- Number of Inputs: 0 Inputs
- Number of Outputs: 16 Outputs
- I/O Point Type: Transistor Outputs (PNP)
- Rated Output Current: 0.5 A/output, 4.0 A/common
- Residual Voltage: 1.2 V
- Leakage Current: 0.1 mA
- ON Delay: Max. 0.5 ms
- OFF Delay: Max. 1.5 ms
- Standards Compliance: CE, UC, UC1, N Compliant
- Installation Altitude: 1000 m
New - Missing Box:
A new, unused item with no signs of wear. The item may be missing the original packaging.
Availability: 1 In Stock
Ships today if ordered in the next 41 minutes.
Used:
A previously used, fully functional product that may have some signs of cosmetic wear.
Availability: 5 In Stock
Ships today if ordered in the next 41 minutes.
