OMRON ZE-NA2-2S LIMIT SWITCH
Quick Overview
Manufactured By: OMRON
Manufacturer Part Number: ZE-NA2-2S
IMS Product Code: 2150732
Packaging: Sold Individually
Description:

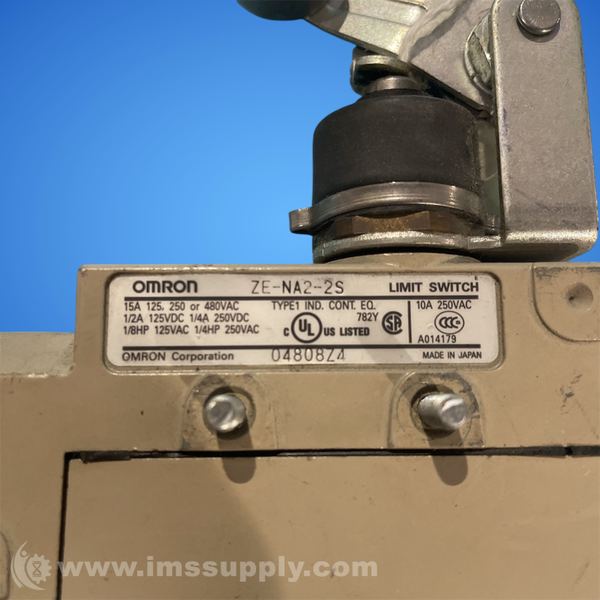

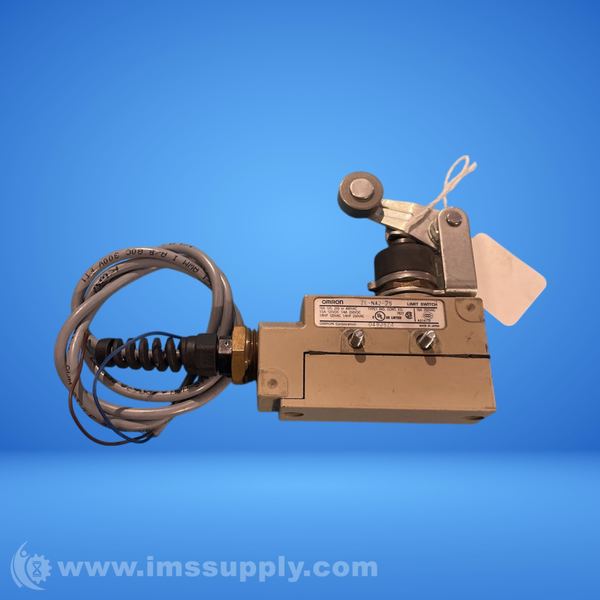

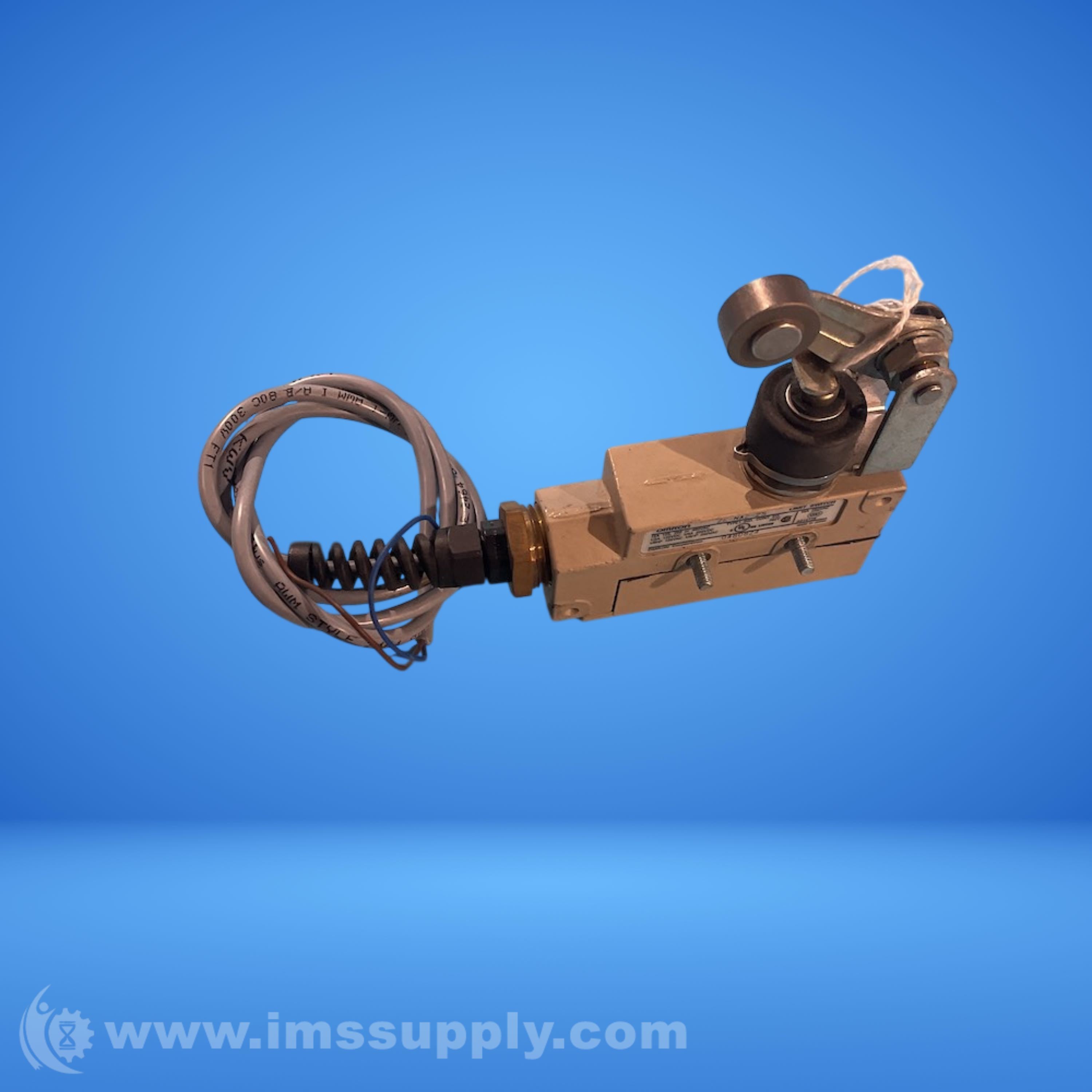

Omron ZE-NA2-2S Limit Switch
Limit Switch, Plunger, Roller Lever, SPDT, 15A at 480V AC, Actuator Location: Top
Specifications
- Actuator Style - Limit Switch: Plunger, Roller Lever
- Actuator Location - Limit Switch: Top
- AC Contact Rating - Limit Switch: 15A @ 480V
- DC Contact Rating - Limit Switch: 15A @ 250V
- Contact Form- Switches: SPDT
- Actuator Length - Limit Switch: 1.56 in
- Body Height - Limit Switch: 1.75 in
- Body Width - Limit Switch: 3.39 in
- Body Depth - Limit Switch: 1.01 in
- Boot Sealed Actuator - Limit Switch: Yes
- Body Style - Limit Switch: Miniature
- NEMA Rating: 1, 2, 3, 4, 5
- Mechanical Life: 10 Mcycles
- Mount: Chassis Mount, Panel, Screw
- Contact Resistance: 15 mO
- Current Rating: 15 A
- Differential Travel: 406.4 µm
- Electrical Life: 500 kcycles
- Max Operating Temperature: 80 degrees C
- Max Voltage Rating (AC): 480 V
- Max Voltage Rating (DC): 250 V
- Min Operating Temperature: -10 degrees C
- Orientation: Straight
- Overtravel: 5.969 mm
- Pretravel: 5.0038 mm
- Switch Function: On-Mom
- Termination: Screw
- Throw Configuration: SPDT
Used:
A previously used, fully functional product that may have some signs of cosmetic wear.
Availability: 2 In Stock
Ships today if ordered in the next 10 hours and 31 minutes.
