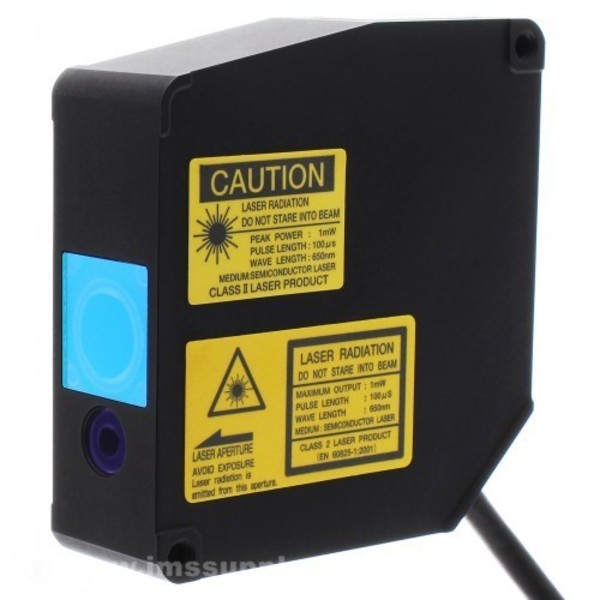

CD4-30-3R LASER MEASUREMENT SENSOR 25 TO 35MM RANGE CLASS 3R TYPE
Starting At: $2,484.00
Quick Overview
Manufactured By: OPTEX
Manufacturer Part Number: CD4-30-3R
IMS Product Code: 1782491
Packaging: Sold Individually
Description:
CD4-30-3R Laser Measurement Sensor 25 to 35mm Range Class 3R Type
Excellent resolution. Must use with CD4 controller
Specifications:
| Description | High Accuracy Displacement Laser with Linear Image Sensor and Color LCD Controller |
| Sensing Mode | Diffuse Reflective (Use w/ CD4A Controller) |
| Features | |
| Supply Voltage | 12 to 24 VDC (CD4A controller) |
| Operation Temperature | -10 to +45° C |
| Measurement Range | 30mm ±5mm |
| Sensing Window | 25 to 35mm |
| Repeatability | 5µm |
| Light Source | Red Laser Diode |
| Wave Length | 650nm |
| Maximum Output | 5 mW |
| Laser Class IEC / JIS | Class 3 |
| Laser Class FDA | Class IIIa |
| Laser Spot Size (Diffuse Reflective) | 30 x 100 µm at 30mm |
| Linearity | ±0.1% F.S. |
| Temp Drift | ±0.01% /°C of F.S. |
| Digital Control Output | Select CD4A Controller w/ NPN or PNP |
| Analog Output | CD4A Controller: ±5 VDC and 4 to 20mA |
| Serial Communication | CD4A Controller: RS-232 |
| Protection / Enclosure Type | IP67/Diecast Alum-Glass Lens |
| Connection | 500mm Pigtail w/12 Pin Conn |
Direct From Manufacturer:
A new product, shipped directly from the manufacturer.
Lead Time: 3 to 5 Days
