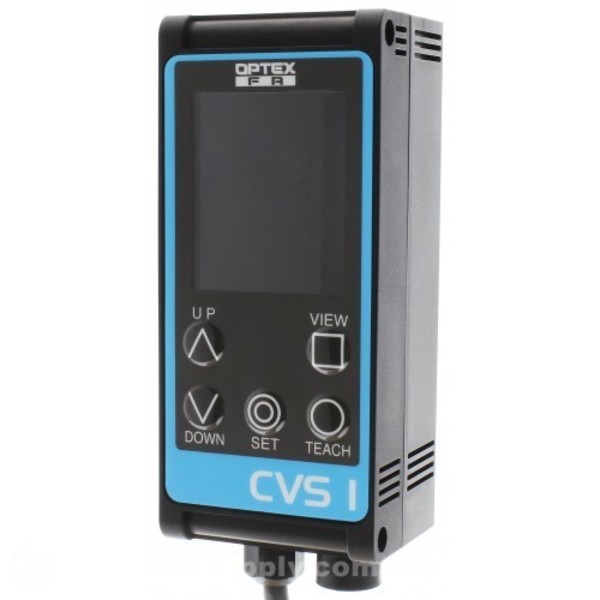

OPTEX CVS1-N40-RA COLOR AREA SENSOR 40 DEGREE DETECTION ANGLE NPN
Starting At: $1,543.50
Quick Overview
Manufactured By: OPTEX
Manufacturer Part Number: CVS1-N40-RA
IMS Product Code: 1783017
Packaging: Sold Individually
Description:
Optex CVS1-N40-RA Color Area Sensor 40 Degree Detection Angle NPN
Sensing distance 50mm with a field of view of 50 x 65mm to 100 X 115mm
Set-up is made easy with the simple intuitive user interface
Single Point teach is as simple as selecting the object color with the cursor
Specification:
| Control Output | NPN |
| Item Type | Color Sensor |
| Field of View Type | Macro View Type |
| Working Distance | 50 to 100mm |
| Detection Angle | 40° |
| Field of View Size | 50x65mm ~ 100x115mm |
| Light Source | White LED Ring |
| LED Light Duration | 50,000 hrs approximately |
| Image Sensor | 330,000 Pixel CMOS Color Image Sensor |
| Supply Voltage | 12 to 24VDC |
| Power Consumption | 120mA at 24VDC |
| Operation Temperature | 0 to 40° C |
| Response Time | 0.5ms to 22ms |
| Remote Input Functions | Teach, synchronous, and 16CH bank select |
| Protection | IP67 |
| Connection | 2 meter cable + external connector for remote lighting or monitor |
| Features | Built-in camera, LED lighting, color display monitor, and controller. Sixteen program storage banks with remote change input. |
Direct From Manufacturer:
A new product, shipped directly from the manufacturer.
Lead Time: 3 to 5 Days
