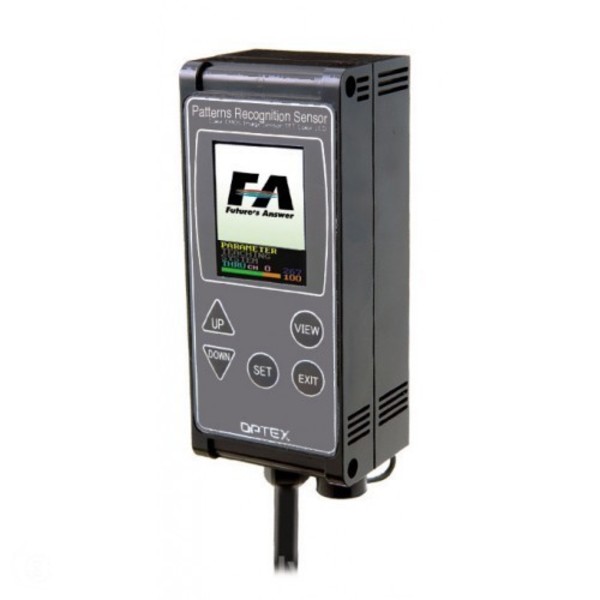

OPTEX CVS2-N20-RA COLOR SORTING OR PATTERN MATCHING MODE NPN
Quick Overview
Manufactured By: OPTEX
Manufacturer Part Number: CVS2-N20-RA
IMS Product Code: 1783027
Packaging: Sold Individually
Description:
Optex CVS2-N20-RA Color Sorting or Pattern Matching Mode NPN Standard View Type
Sensing distance 90 to 150mm with a field of view 40X50mm to 65x75mm
Can be set-up in either pattern match or color sorting mode
Background brightness can be corrected in order to provide an even background color
Specifications:
| Item Type | Color Sensor |
| Features | Color pattern matching, masking, zoom, programmable aux output, and sixteen bank program storage. |
| Detection Angle | 20° |
| Field of View Type | Narrow View Type |
| Working Distance | 31 to 39mm |
| Field of View Size | 17 x 20mm ±10% |
| Light Source | White LED Ring |
| LED Light Duration | 50,000 hrs approximately |
| Image Sensor | 330,000 Pixel CMOS Color Image Sensor |
| Supply Voltage | 12 to 24VDC |
| Power Consumption | 140mA at 24VDC |
| Operation Temperature | 0 to 40° C |
| Control Output | NPN |
| Response Time | 4ms to 22ms |
| Remote Input Functions | Teaching, synchronous, and 16CH bank select |
| Protection | IP67 |
| Connection | 2 meter cable + external connector for remote lighting or monitor |
Direct From Manufacturer:
A new product, shipped directly from the manufacturer.
Lead Time: 3 to 5 Days
