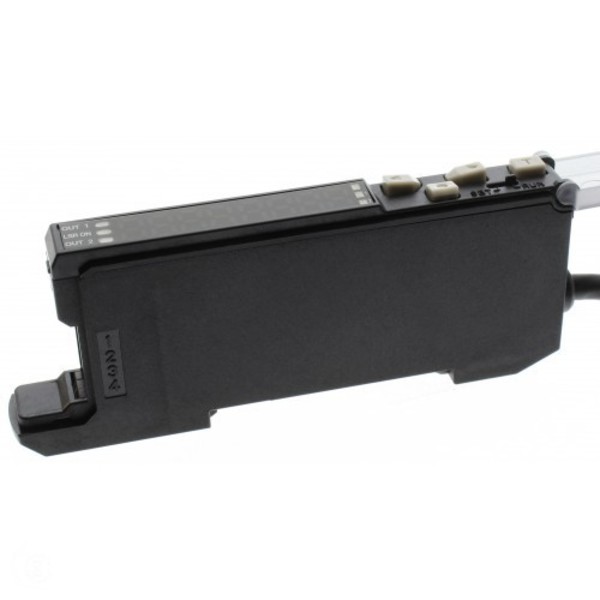

OPTEX D2SA-MNS LASER AMPLIFIER STAND ALONE 2 CHANNEL NPN
Quick Overview
Manufactured By: OPTEX
Manufacturer Part Number: D2SA-MNS
IMS Product Code: 1780402
Packaging: Sold Individually
Description:
Optex D2SA-MNS Laser Amplifier Stand Alone 2 Channel NPN with 4-20ma
The threshold and the reflected light level are both indicated at the same time making the sensitivity set-up easy.
Quick connection between laser head and amplfier with the Econ connector. All laser heads are connectable to any D2SA amplifier.
2 Channel model has two digital outputs for the control and or alarm. There is also a 4-20ma analog output. The external input can be configured to operate as needed.
Specifications:
| Sensing Mode | Digital Display Push-Button Teach Amplifier |
| Features | Stand-Alone Type |
| Supply Voltage | 12-24 VDC ±10% |
| Operation Temperature | -25 to +55° C |
| Sensing Distance | N/A |
| Repeatability / Response Time | 60µs, 500µs & 2ms |
| Light Source | |
| Wave Length | |
| Maximum Output | |
| Laser Class IEC / JIS | |
| Laser Class FDA | |
| Laser Spot Size (Diffuse Reflective) | N/A |
| Digital Control Output | 2CH NPN |
| Analog Output | 4-20mA |
| Protection / Enclosure Type | IP50 |
| Connection | 2 meter cable type |
Direct From Manufacturer:
A new product, shipped directly from the manufacturer.
Lead Time: 3 to 5 Days
