OPTEX NF-DA03 DIFFUSE LENS FOR Ø0.2 BEAM SPOT AT 7MM
Starting At: $107.80
Quick Overview
Manufactured By: OPTEX
Manufacturer Part Number: NF-DA03
IMS Product Code: 1780970
Packaging: Sold Individually
Description:

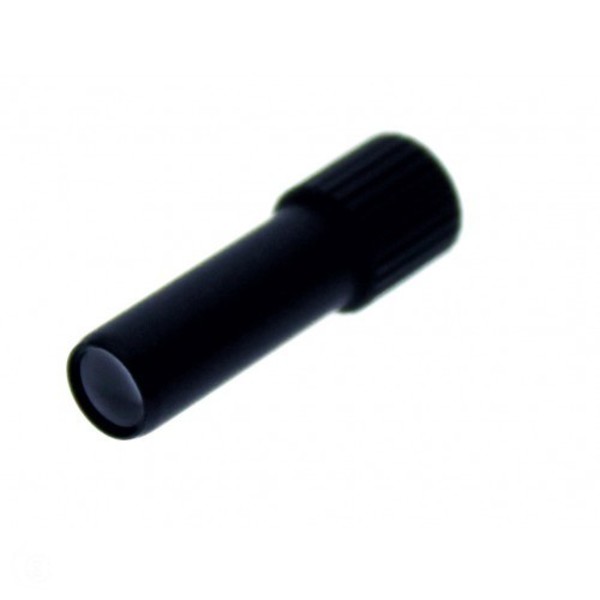

Optex NF-DA03 Diffuse Lens for Ø0.2 Beam Spot at 7mm
Threaded focusing lens creates beam spot as small as 0.2mm in diameter when attached to NF-Dk21 fiber cable
Specifications:
| Sensing Mode | Diffuse type for focused beam spot |
| Beam Sensing Direction | Axial |
| D3RF Max Sensing Distance | 7 mm |
| Smallest Beam Spot | Ø 0.2mm |
| Use with Fibers Threaded Tips | M3 x 0.5mm threaded tip |
| Features | Ø 0.2 Beam Spot Using NF-DK21 fiber cable Ø 0.4 Beam Spot Using NF-DT01 fiber cable |
| Min. Detectable Object (D3RF) | Ø 0.005 mm Gold Plated Wire |
| Sensor Body Shape | Cylindrical Smooth |
| Lens Dimension | Ø 4 x 16 mm |
| Temperature | -20 to 60° C |
Direct From Manufacturer:
A new product, shipped directly from the manufacturer.
Lead Time: 3 to 5 Days
