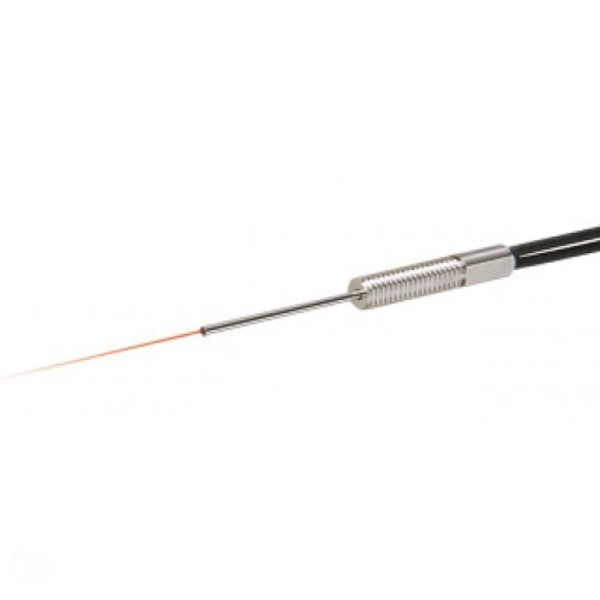

OPTEX NF-DB05 M3 DIFFUSE W/ Ø.8X15 SLEEVE
Quick Overview
Manufactured By: OPTEX
Manufacturer Part Number: NF-DB05
IMS Product Code: 1780996
Packaging: Sold Individually
Description:
Optex NF-DB05 M3 Diffuse w/ Ø.8x15 Sleeve
Specifications:
| Sensing Mode | Diffuse Reflective |
| Sensor Body Type | Threaded w/sleeve |
| Beam Sensing Direction | Axial Sensing |
| Features | |
| Mounting Size Dimension | M3 |
| Mounting Size Length | 10 mm |
| D3RF Max Sensing Distance | 99 mm |
| Min. Detectable Object (D3RF) | Ø 0.02 mm |
| Lens Compatible | |
| Coaxial Fiber | |
| Sleeve | Non-bendable |
| Sleeve Diameter | Ø 0.80mm |
| Sleeve Length | 15 mm |
| Sleeve Bend Radius | |
| Temperature | -40 to 60° C |
| Fiber Core | Multicore |
| Fiber Cable Bend Radius | R25 |
| Fiber OD (mm) | 2.2 mm |
| Fiber Cable Length | 1 meter |
| Cuttable / Non-Cuttable | Non-Cuttable Fiber-Fixed Tips |
| Includes |
Direct From Manufacturer:
A new product, shipped directly from the manufacturer.
Lead Time: 3 to 5 Days
