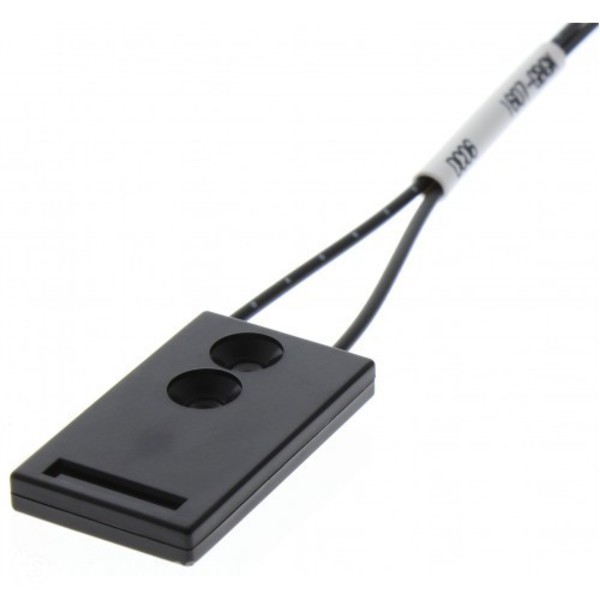

OPTEX NF-DC06 CONVERGENT FOR GLASS SENSING R4 FIBER FLAT-ON SENSE
Quick Overview
Manufactured By: OPTEX
Manufacturer Part Number: NF-DC06
IMS Product Code: 1781018
Packaging: Sold Individually
Description:
Optex NF-DC06 Convergent for Glass Sensing R4 Fiber Flat-On Sense
Flat-On Sense
Specifications:
| Sensing Mode | Convergent |
| Type of Sensing | High accuracy edge sensing of warped/angled glass/quartz targets |
| Beam Sensing Direction | Front-On |
| Mounting Size | 29 x 17 x 3.8 mm |
| Beam Diameter / Array (mm) | |
| Min. Detectable Object (D3RF) | |
| Temperature | 0 to 70° C |
| D3RF Max Sensing Distance | 0 to 23 mm |
| Fiber Cable Bend Radius | R4 |
| Fiber OD (mm) | 1.3 mm |
| Fiber Cable Length | 2 meters |
| Cuttable / Non-Cuttable | Cuttable |
| Includes | Fiber Cutter and Tips |
Direct From Manufacturer:
A new product, shipped directly from the manufacturer.
Lead Time: 3 to 5 Days
