OPTEX NF-DH08 CONVERGENT FOR DETECTION OF GLASS/QUARTZ
Quick Overview
Manufactured By: OPTEX
Manufacturer Part Number: NF-DH08
IMS Product Code: 1781051
Packaging: Sold Individually
Description:

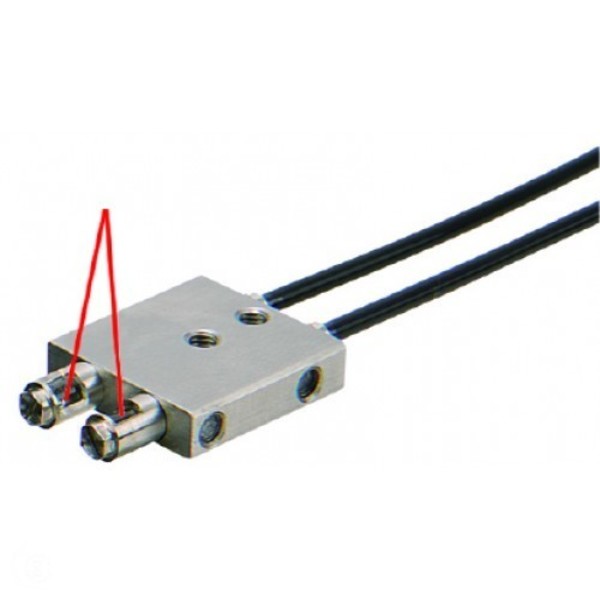

Optex NF-DH08 Convergent For Detection of Glass/Quartz
Specifications:
| Sensing Mode | Convergent |
| Type of Sensing | High accuracy presence of glass/quartz targets |
| Beam Sensing Direction | Front-On |
| Mounting Size | 27 x 19 x 5 mm |
| Beam Diameter / Array (mm) | |
| Min. Detectable Object (D3RF) | Ø 0.02 mm |
| Temperature | -60 to 180° C |
| D3RF Max Sensing Distance | 0 to 35 mm |
| Fiber Cable Bend Radius | R25 |
| Fiber OD (mm) | 2.2 mm |
| Fiber Cable Length | 2 meters |
| Cuttable / Non-Cuttable | Cuttable |
| Includes | Fiber Cutter and Tips |
Direct From Manufacturer:
A new product, shipped directly from the manufacturer.
Lead Time: 3 to 5 Days
