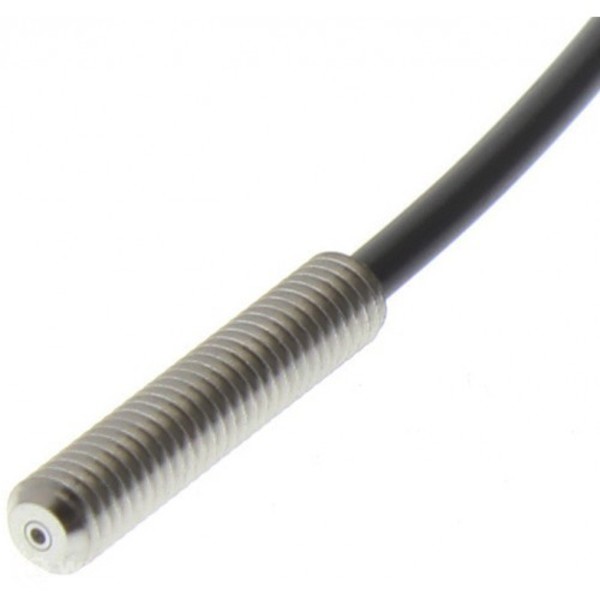

OPTEX NF-DK21 M3 DIFFUSE COAXIAL R15 LENS ADAPTABLE
Starting At: $82.32
Quick Overview
Manufactured By: OPTEX
Manufacturer Part Number: NF-DK21
IMS Product Code: 1781060
Packaging: Sold Individually
Description:
Optex NF-DK21 M3 Diffuse Coaxial R15 Lens Adaptable
Specifications:
| Sensing Mode | Diffuse Reflective |
| Sensor Body Type | Threaded |
| Beam Sensing Direction | Axial Sensing |
| Features | |
| Mounting Size Dimension | M3 |
| Mounting Size Length | 15 mm |
| D3RF Max Sensing Distance | 180 mm |
| Min. Detectable Object (D3RF) | Ø 0.015 mm |
| Lens Compatible | Focus Beam Lens Compatible |
| Coaxial Fiber | Coaxial type |
| Sleeve | |
| Sleeve Diameter | |
| Sleeve Length | |
| Sleeve Bend Radius | |
| Temperature | -40 to 70° C |
| Fiber Core | Coaxial |
| Fiber Cable Bend Radius | R15 |
| Fiber OD (mm) | 1.8 mm |
| Fiber Cable Length | .5 meters |
| Cuttable / Non-Cuttable | Non-Cuttable Fiber-Fixed Tips |
| Includes |
Direct From Manufacturer:
A new product, shipped directly from the manufacturer.
Lead Time: 3 to 5 Days
