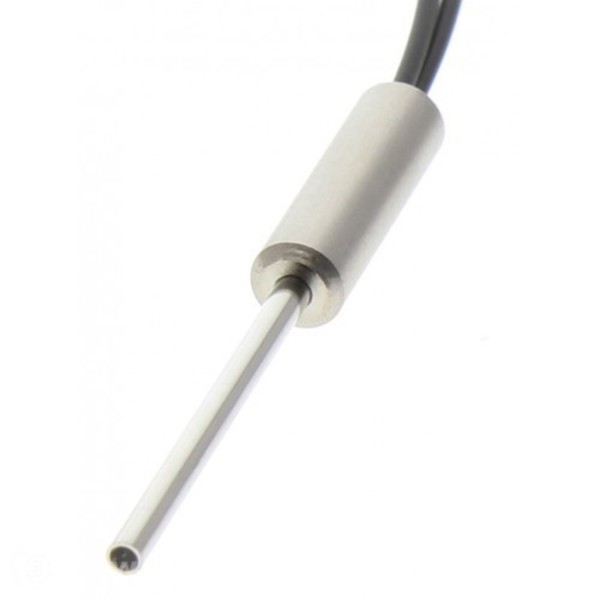

OPTEX NF-DK43 Ø4 CYLINDRICAL DIFFUSE W/ Ø1.5X20 SLEEVE
Quick Overview
Manufactured By: OPTEX
Manufacturer Part Number: NF-DK43
IMS Product Code: 1781064
Packaging: Sold Individually
Description:
Optex NF-DK43 Ø4 Cylindrical Diffuse w/ Ø1.5x20 Sleeve
Specifications:
| Sensing Mode | Diffuse Reflective |
| Sensor Body Type | Smooth w/ sleeve |
| Beam Sensing Direction | Axial Sensing |
| Features | |
| Mounting Size Dimension | Ø 4 mm |
| Mounting Size Length | 15 mm |
| D3RF Max Sensing Distance | 400 mm |
| Min. Detectable Object (D3RF) | Ø 0.015 mm |
| Lens Compatible | |
| Coaxial Fiber | |
| Sleeve | Non-bendable |
| Sleeve Diameter | Ø 1.5 mm |
| Sleeve Length | 20 mm |
| Sleeve Bend Radius | |
| Temperature | -40 to 70° C |
| Fiber Core | 0.5 x 2 |
| Fiber Cable Bend Radius | R15 |
| Fiber OD (mm) | 1.0 mm |
| Fiber Cable Length | 2 meters |
| Cuttable / Non-Cuttable | Cuttable |
| Includes | Fiber Cutter and Tips |
Direct From Manufacturer:
A new product, shipped directly from the manufacturer.
Lead Time: 3 to 5 Days
