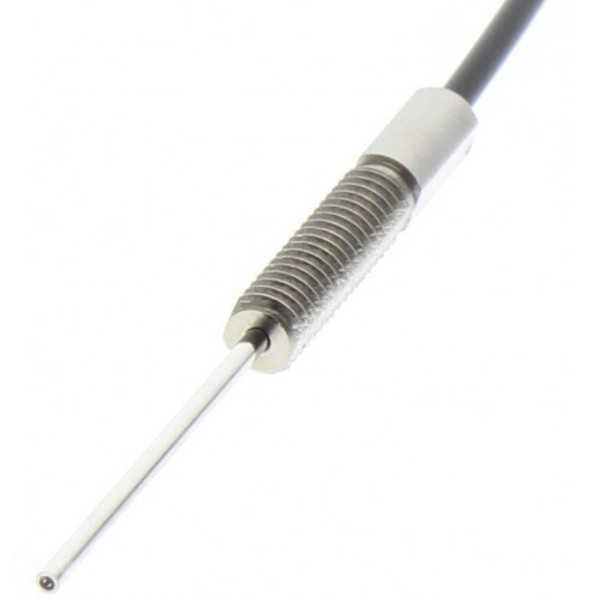

OPTEX NF-DT04 M3 DIFFUSE F4 W/ Ø.82X15 SLEEVE
Quick Overview
Manufactured By: OPTEX
Manufacturer Part Number: NF-DT04
IMS Product Code: 1781132
Packaging: Sold Individually
Description:
Optex NF-DT04 M3 Diffuse F4 w/ Ø.82X15 Sleeve
Specifications:
| Sensing Mode | Diffuse Reflective |
| Sensor Body Type | Threaded w/sleeve |
| Beam Sensing Direction | Axial Sensing |
| Features | |
| Mounting Size Dimension | M3 |
| Mounting Size Length | 15 mm |
| D3RF Max Sensing Distance | 240 mm |
| Min. Detectable Object (D3RF) | Ø 0.015 mm |
| Lens Compatible | |
| Coaxial Fiber | Coaxial type |
| Sleeve | Non-bendable |
| Sleeve Diameter | Ø .82 mm |
| Sleeve Length | 15 mm |
| Sleeve Bend Radius | |
| Temperature | -40 to 70° C |
| Fiber Core | Coaxial |
| Fiber Cable Bend Radius | R4 |
| Fiber OD (mm) | 1.2 mm |
| Fiber Cable Length | .5 meters |
| Cuttable / Non-Cuttable | Non-Cuttable Fiber-Fixed Tips |
| Includes |
Direct From Manufacturer:
A new product, shipped directly from the manufacturer.
Lead Time: 3 to 5 Days
