OPTEX NF-RG01 RETRO-REFLECTIVE MAPPING FIBER NARROW VIEW
Quick Overview
Manufactured By: OPTEX
Manufacturer Part Number: NF-RG01
IMS Product Code: 1781198
Packaging: Sold Individually
Description:
Optex NF-RG01 Retro-reflective Mapping Fiber Narrow View
With only a 3degree aperture this retroreflective sensor can be used for mapping fibers in the semicon industry
Specifications:
| Sensing Mode | Retro-Reflective |
| Sensor Body Type | Rectangular shape/thin |
| Beam Sensing Direction | Sideview Sensing |
| Features | Designed for wafer mapping utilizing retro-reflective mode |

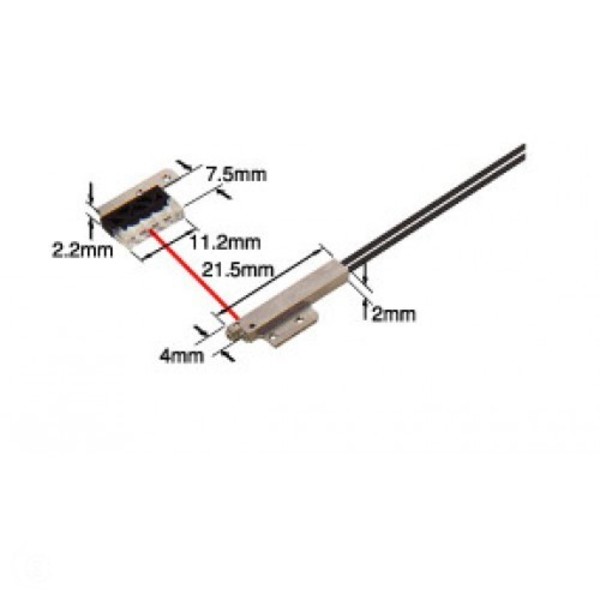

| Mounting Size Dimension | 21.5 x 4 x 2 mm |
| Mounting Size Length | |
| D3RF Max Sensing Distance | 590 mm |
| Min. Detectable Object (D3RF) | Ø 0.12 mm |
| Lens Compatible | |
| Coaxial Fiber | |
| Sleeve | |
| Sleeve Diameter | |
| Sleeve Length | |
| Sleeve Bend Radius | |
| Temperature | -40 to 60° C |
| Fiber Core | 0.5 |
| Fiber Cable Bend Radius | R10 |
| Fiber OD (mm) | 1.0 mm |
| Fiber Cable Length | 2 meters |
| Cuttable / Non-Cuttable | Cuttable |
| Includes | Fiber Cutter and Tips |
Direct From Manufacturer:
A new product, shipped directly from the manufacturer.
Lead Time: 3 to 5 Days
