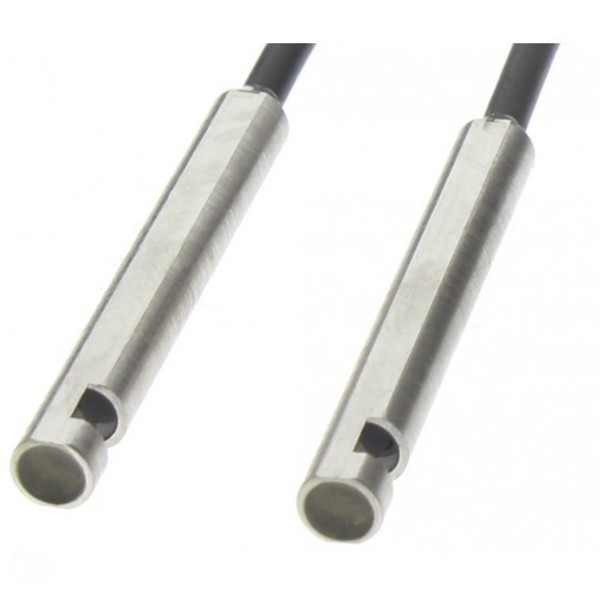

OPTEX NF-TS12 TBEAM MAPPING FIBER SIDE-VIEW 5° APERTURE
Quick Overview
Manufactured By: OPTEX
Manufacturer Part Number: NF-TS12
IMS Product Code: 1781318
Packaging: Sold Individually
Description:
Optex NF-TS12 Tbeam Mapping Fiber Side-View 5° Aperture
Specifications:
| Sensing Mode | Thrubeam |
| Sensor Body Type | Smooth |
| Beam Sensing Direction | Sideview Sensing |
| Features | Narrow beam type featuring 5° optical aperture |
| Mounting Size Dimension | 4,0 x 3.6 mm |
| Mounting Size Length | 30 mm |
| D3RF Max Sensing Distance | 4000 mm |
| Min. Detectable Object (D3RF) | Ø 0.5 mm |
| Lens Compatible | |
| Coaxial Fiber | |
| Sleeve | |
| Sleeve Diameter | |
| Sleeve Length | |
| Sleeve Bend Radius | |
| Temperature | -40 to 70° C |
| Fiber Core | |
| Fiber Cable Bend Radius | R25 |
| Fiber OD (mm) | 2.2 mm |
| Fiber Cable Length | 2 meters |
| Cuttable / Non-Cuttable | Cuttable |
| Includes | Fiber Cutter |
Direct From Manufacturer:
A new product, shipped directly from the manufacturer.
Lead Time: 3 to 5 Days
