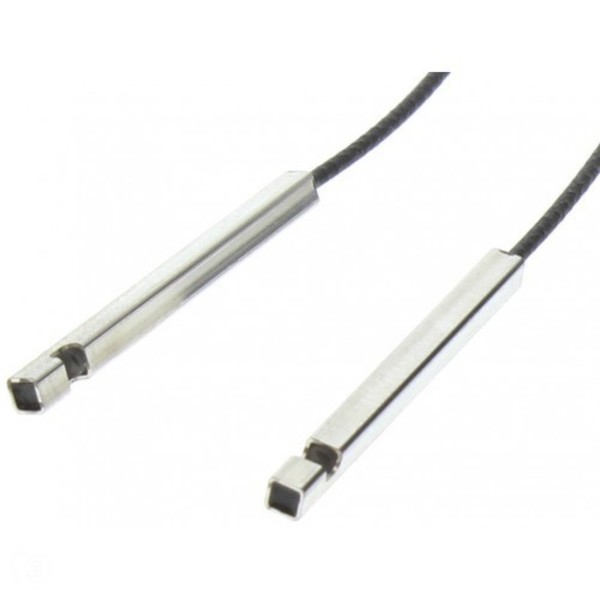

OPTEX NF-TS23 TBEAM 105°C MAPPING FIBER SIDEVIEW 2.5° APERTURE
Quick Overview
Manufactured By: OPTEX
Manufacturer Part Number: NF-TS23
IMS Product Code: 1781329
Packaging: Sold Individually
Description:
Optex NF-TS23 Tbeam 105°C Mapping Fiber sideview 2.5° Aperture
Specifications:
| Sensing Mode | Thrubeam |
| Sensor Body Type | Smooth |
| Beam Sensing Direction | Sideview Sensing |
| Features | Designed for wafer mapping featuring 2.5° optical aperture |
| Mounting Size Dimension | 2.0 x 2.0 mm |
| Mounting Size Length | 24 mm |
| D3RF Max Sensing Distance | 1500 mm |
| Min. Detectable Object (D3RF) | Ø 0.06 mm |
| Lens Compatible | |
| Coaxial Fiber | |
| Sleeve | |
| Sleeve Diameter | |
| Sleeve Length | |
| Sleeve Bend Radius | |
| Temperature | -40 to 105° C |
| Fiber Core | |
| Fiber Cable Bend Radius | R10 |
| Fiber OD (mm) | 1.0 mm |
| Fiber Cable Length | 2 meters |
| Cuttable / Non-Cuttable | Cuttable |
| Includes | Fiber Cutter and Tips |
Direct From Manufacturer:
A new product, shipped directly from the manufacturer.
Lead Time: 3 to 5 Days
