OPTEX NF-TS27 TBEAM 200°C MAPPING FIBER SIDEVIEW 2.5° APERTURE
Quick Overview
Manufactured By: OPTEX
Manufacturer Part Number: NF-TS27
IMS Product Code: 1781333
Packaging: Sold Individually
Description:

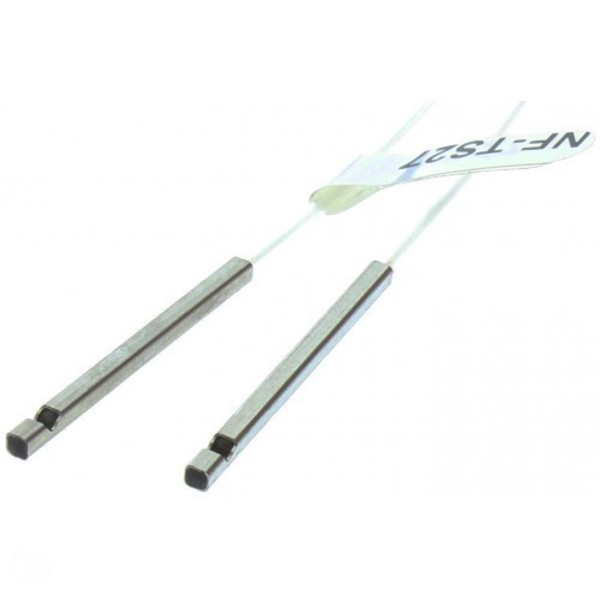

Optex NF-TS27 Tbeam 200°C Mapping Fiber sideview 2.5° Aperture
Specifications:
| Sensing Mode | Thrubeam |
| Sensor Body Type | Smooth |
| Beam Sensing Direction | Sideview Sensing |
| Features | Designed for Wafer Mapping featuring 2.5° Optical aperture |
| Mounting Size Dimension | 2.0 x 2.0 mm |
| Mounting Size Length | 30 mm |
| D3RF Max Sensing Distance | 800 mm |
| Min. Detectable Object (D3RF) | Ø 0.06 mm |
| Lens Compatible | |
| Coaxial Fiber | |
| Sleeve | |
| Sleeve Diameter | |
| Sleeve Length | |
| Sleeve Bend Radius | |
| Temperature | -40 to 200° C |
| Fiber Core | Glass Fiber |
| Fiber Cable Bend Radius | R300 |
| Fiber OD (mm) | Ø 14 Teflon Sheath |
| Fiber Cable Length | .5 meters |
| Cuttable / Non-Cuttable | Non-Cuttable Fiber-Fixed Tips |
| Includes |
