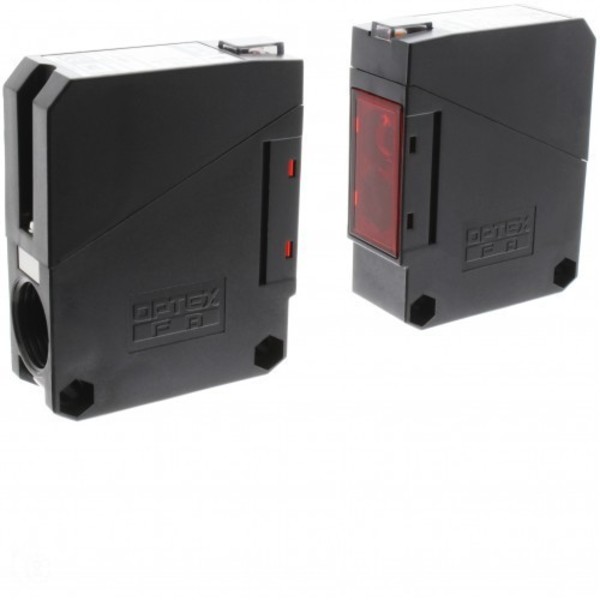

OPTEX VT-4000T AC/DC THRUBEAM W/TIMER 40M SPDT RELAY SCREW TERM
Quick Overview
Manufactured By: OPTEX
Manufacturer Part Number: VT-4000T
IMS Product Code: 1781665
Packaging: Sold Individually
Description:
Optex VT-4000T AC/DC Thrubeam W/Timer 40M SPDT relay Screw term, 1/2" KO
Ideal for dusty and dirty environments
Simple screw terminal wiring layout.This model has includes a timer.
Specifications:
| Sensing Mode / Type | Thrubeam |
| Sensing Distance | 40 meter |
| Light Source | Red LED |
| Supply Voltage | 12 to 240VDC / 24 to 240VAC |
| Minimum Detectable Object | Ø30mm |
| Current Consumption | 8.5VA |
| Response Time | 20ms |
| Sensitivity Adjustment | 1-Turn Potentiometer |
| Output | SPDT Relay 0.1 Amp |
| Model Type | |
| Output Operation Mode | Light-on |
| Protection | IP67 |
| Temperature | -25° to +55° C |
| Connection | Screw Terminal Type w/Lift-off Cover. Two 1/2" NPT Entry Ports |
| Includes | Mounting Brackets/Hardware |
| Timer Option | Individual 1-Turn Potentiometer Adjustment for both On-delay and Off-delay timing. 0.1 to 10 seconds |
| Shock Rating | 50G |
