OPTEX Z2R-400CN3 RED LED POL RETRO-REFLECTIVE 4M NPN M8 3P QD
Starting At: $65.28
Quick Overview
Manufactured By: OPTEX
Manufacturer Part Number: Z2R-400CN3
IMS Product Code: 1783171
Packaging: Sold Individually
Description:

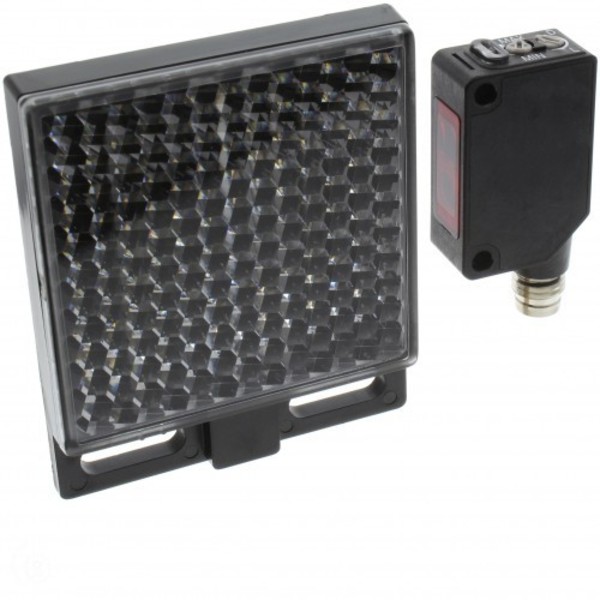

Optex Z2R-400CN3 Red LED Pol Retro-reflective 4M NPN M8 3P QD
High power LED design
Specifications:
| Sensing Mode / Type | Polarized Retro-Reflective |
| Special Features | |
| Sensing Distance | .01 to 4 meter |
| Resolution / Min Detectable Object | |
| Light Source | Red LED |
| Supply Voltage | 10 to 30 VDC |
| Current Consumption | 20mA |
| Response Time | .5ms |
| Sensitivity Adjustment | 1-turn potentiometer |
| Output | NPN |
| Output Operation Mode | LO/DO Switch Selectable |
| Material | ABS (case) PMMA (lens) |
| Protection | IP67 |
| Shock Rating | 100G |
| Temperature | -25 to 55° C |
| Connection | M8 3 pin QD |
| Includes | Reflector (V-61), mounting bracket/screws |
Direct From Manufacturer:
A new product, shipped directly from the manufacturer.
Lead Time: 3 to 5 Days
