OPTEX Z3R-400CN4 RED LED POLARIZED RETRO-REFLECTIVE 4M NPN M8 4P

MSRP: $63.00
Starting At: $61.74

Quick Overview

Manufactured By: OPTEX
Manufacturer Part Number: Z3R-400CN4
IMS Product Code: 1781876
Packaging: Sold Individually

Description:

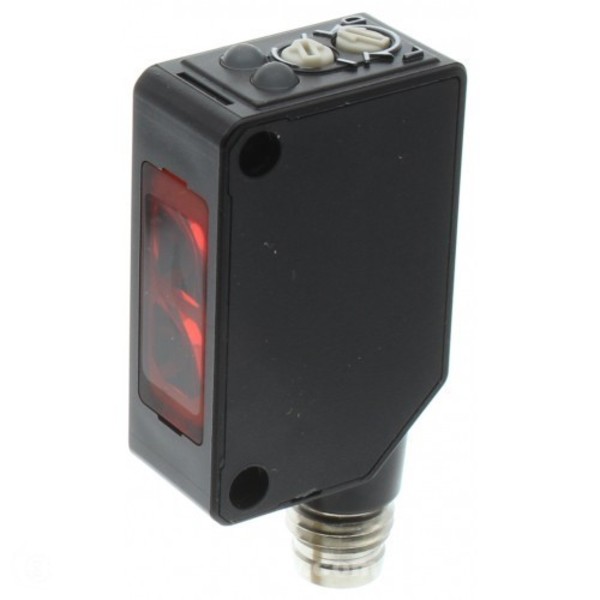

Optex Z3R-400CN4 Red LED Polarized Retro-reflective 4M NPN M8 4P QD

The small beam of the Z3R-400 sensor allows for detecting or counting product flowing through a a process with narrow spaces

Output and stability indicators are brighter than those of conventional models and easier to view from any direction

Specifications:

Sensing Mode / TypePolarized Retro-Reflective
Special Features
Sensing Distance.01 to 4 meter
Resolution / Min Detectable Object0.2mm or less
Light SourceRed LED
Supply Voltage10 to 30 VDC
Current Consumption20mA
Response Time.5ms
Sensitivity Adjustment1-turn potentiometer
OutputNPN
Output Operation ModeLO/DO Switch Selectable
MaterialABS (case) PMMA (lens)
ProtectionIP67
Shock Rating100G
Temperature-25 to 55° C
ConnectionM8 4 pin QD
IncludesReflector and mounting bracket/screws are not included




Direct From Manufacturer:
A new product, shipped directly from the manufacturer.

Lead Time: 3 to 5 Days
