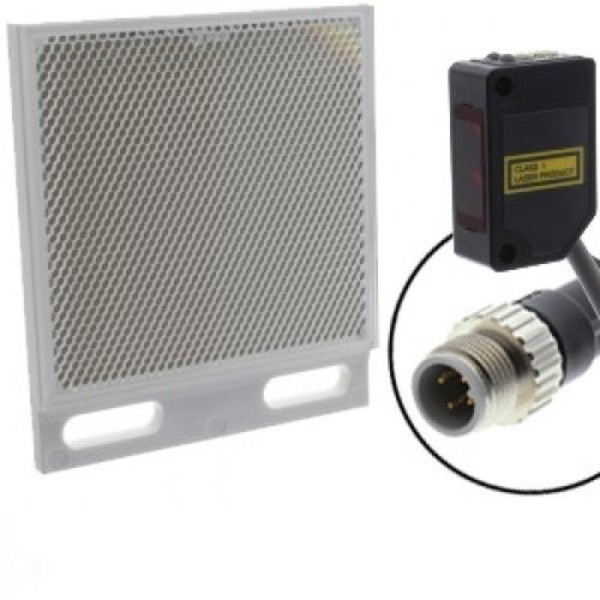

OPTEX ZR-L1000P-M12 10 METER RETRO LASER PNP M12 4 PIN QD
Quick Overview
Manufactured By: OPTEX
Manufacturer Part Number: ZR-L1000P-M12
IMS Product Code: 1781938
Packaging: Sold Individually
Description:
Optex ZR-L1000P-M12 10 meter Retro laser PNP M12 4 Pin QD
Specifications:
| Sensing Mode | Polarized Retro-Reflective |
| Features | Cross-talk prevention for two sensors mounted side-by-side |
| Operation Voltage | 10 to 30VDC |
| Current Consumption | 20mA |
| Light Source | Red Laser Diode 650nm |
| Light Source Output | 3mW |
| FDA Laser Class | Class II |
| Sensing Distance | 0.01 to 10m |
| Spot Size | 10mm at 8m |
| Repeatability | 0.5mm |
| Hysteresis | N/A |
| Sensitivity Adjustment | Potentiometer 1-turn |
| Display | LED Indicator |
| External Input | Laser Off |
| Response Time | 250µs |
| Control Output | PNP |
| Timing Option | N/A |
| Housing | ABS |
| Operation Temperature | -10 to +50° C |
| Protection | IP 67 |
| Connection | M12 4P Pigtail QD |
| Includes | BEF-W100-B Mounting Bracket and P250F Reflector |
Direct From Manufacturer:
A new product, shipped directly from the manufacturer.
Lead Time: 3 to 5 Days
