OPTEX ZR-M550CP4 IP69K POLARIZED RETRO-REFLECTIVE 5.5M NPN M8 4P

MSRP: $185.00
Starting At: $181.30

Quick Overview

Manufactured By: OPTEX
Manufacturer Part Number: ZR-M550CP4
IMS Product Code: 1781949
Packaging: Sold Individually

Description:

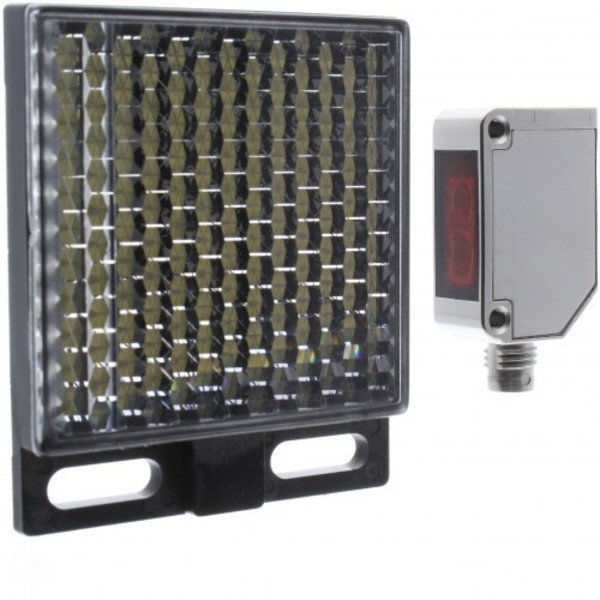

Optex ZR-M550CP4 IP69K Polarized Retro-reflective 5.5M NPN M8 4P QD

The BGS-ZM series was designed for use in the toughest of environments

The BGS-ZM meets and exceeds IP69K ratings standard.

Test Condition: A sensor on a the turntable that rotaes 5 times per minute

pressure 80-100bar, flow rate 14-16 litre/minute, Distance from Nozzle 100-150mm

5.5 meter sensing distance visible red led

Specifications:

Sensing Mode / TypePolarized Retro-Reflective
Sensing Distance.01 to 5.5 meter
Resolution / Min Detectable Object0.5mm or less
Light SourceRed LED (four element)
Supply Voltage10 to 30 VDC
Current Consumption18mA
Response Time.5ms
Sensitivity Adjustment1-turn potentiometer
OutputNPN
Output Operation ModeLO/DO Switch Selectable
MaterialSUS316L (housing) PPSU (lens) PES (top cover) PEEK (pot/switch) FKM (gasket)
ProtectionIP69K (DIN) IP67 (IEC)
Shock Rating100G
Temperature-25 to 55° C
ConnectionM8 4 pin QD
IncludesReflector (V-61), mounting bracket/screws




Direct From Manufacturer:
A new product, shipped directly from the manufacturer.

Lead Time: 3 to 5 Days

Product images shown are for illustration purposes only and may not be an exact representation of the product you will receive. IMS Supply is not an authorized distributor, reseller or representative of Optex. All product names, trademarks, brands and logos used on this site are the property of their respective owners and are used for identification purposes only.
