OPTEX ZR-M550P IP69K POLARIZED RETRO-REFLECTIVE 5.5M PNP 2M CABLE
Starting At: $181.30
Quick Overview
Manufactured By: OPTEX
Manufacturer Part Number: ZR-M550P
IMS Product Code: 1781960
Packaging: Sold Individually
Description:

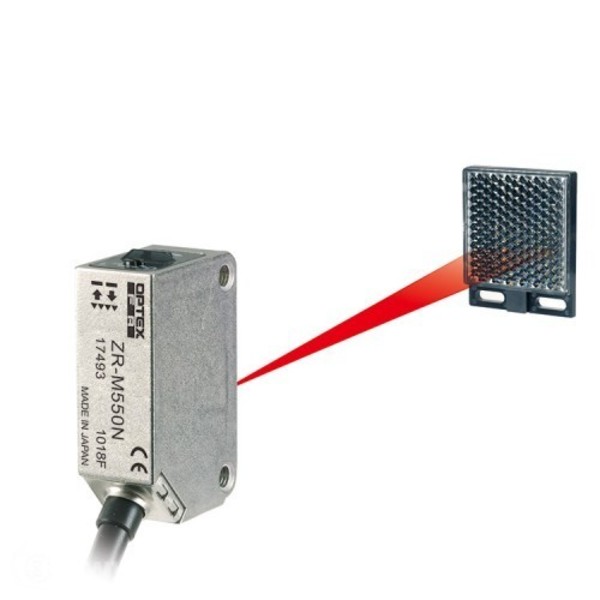

Optex ZR-M550P IP69K Polarized Retro-reflective 5.5M PNP 2M cable
The BGS-ZM series was designed for use in the toughest of environments
The BGS-ZM meets and exceeds IP69K ratings standard.
Test Condition: A sensor on a the turntable that rotaes 5 times per minute
pressure 80-100bar, flow rate 14-16 litre/minute, Distance from Nozzle 100-150mm
5.5 meter sensing distance visible red led
Specifications:
| Sensing Mode / Type | Polarized Retro-Reflective |
| Sensing Distance | .01 to 5.5 meter |
| Resolution / Min Detectable Object | 0.5mm or less |
| Light Source | Red LED (four element) |
| Supply Voltage | 10 to 30 VDC |
| Current Consumption | 18mA |
| Response Time | .5ms |
| Sensitivity Adjustment | 1-turn potentiometer |
| Output | PNP |
| Output Operation Mode | LO/DO Switch Selectable |
| Material | SUS316L (housing) PPSU (lens) PES (top cover) PEEK (pot/switch) FKM (gasket) |
| Protection | IP69K (DIN) IP67 (IEC) |
| Shock Rating | 100G |
| Temperature | -25 to 55° C |
| Connection | 2 meter cable |
| Includes | Reflector (V-61), mounting bracket/screws |
Direct From Manufacturer:
A new product, shipped directly from the manufacturer.
Lead Time: 3 to 5 Days
