OPTEX ZR-X250N COAXIAL BEAM POLARIZED RETRO-REFLECTIVE 2.5M NPN
Starting At: $96.04
Quick Overview
Manufactured By: OPTEX
Manufacturer Part Number: ZR-X250N
IMS Product Code: 1781981
Packaging: Sold Individually
Description:

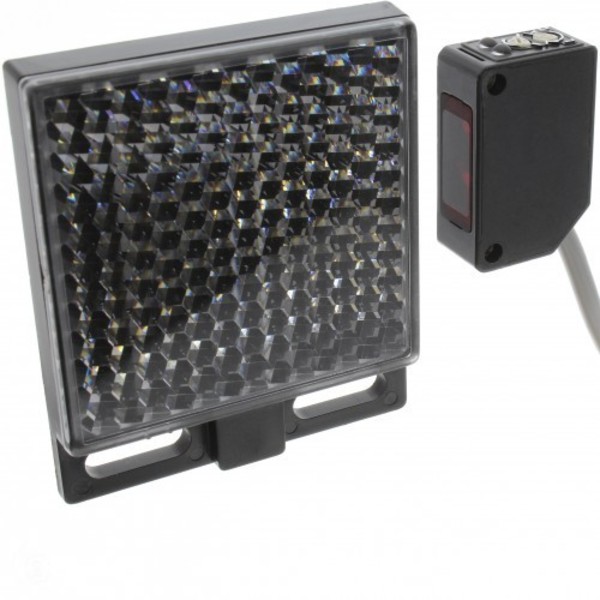

Optex ZR-X250N Coaxial Beam Polarized Retro-reflective 2.5M NPN 2M cable
Coaxial LED light source provides extremely tight alignment to the target. Alignment of the sensor is very easy because of the bright projected LED spot.
Conventional sensors can have a minimum standoff distance from the sensor to the reflector. Others have issues reliably detecting transparent objects closer to the sensor. The ZR-X is designed with no dead zone area and can reliably detect product anywhere within the beam. This is great for use on conveyors where the position of the target changes.
With built in cross talk preventio, it is possible to mount two sensors side-by-side without mutual intereference
Specifications:
| Sensing Mode / Type | Polarized Retro-Reflective |
| Special Features | Coaxial Beam |
| Sensing Distance | 0 to 2.5 meter |
| Resolution / Min Detectable Object | 0.5mm or less |
| Light Source | Red LED |
| Supply Voltage | 10 to 30 VDC |
| Current Consumption | 20mA |
| Response Time | .250ms |
| Sensitivity Adjustment | 1-turn potentiometer |
| Output | NPN |
| Output Operation Mode | LO/DO Switch Selectable |
| Material | ABS (case) PMMA (lens) |
| Protection | IP67 |
| Shock Rating | 100G |
| Temperature | -25 to 55° C |
| Connection | 2 meter cable |
| Includes | Reflector (P250F) and mounting bracket/screws |
Direct From Manufacturer:
A new product, shipped directly from the manufacturer.
Lead Time: 3 to 5 Days
