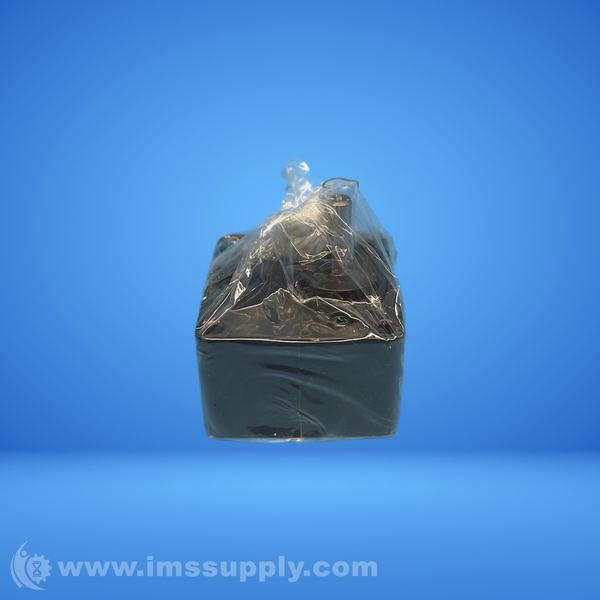

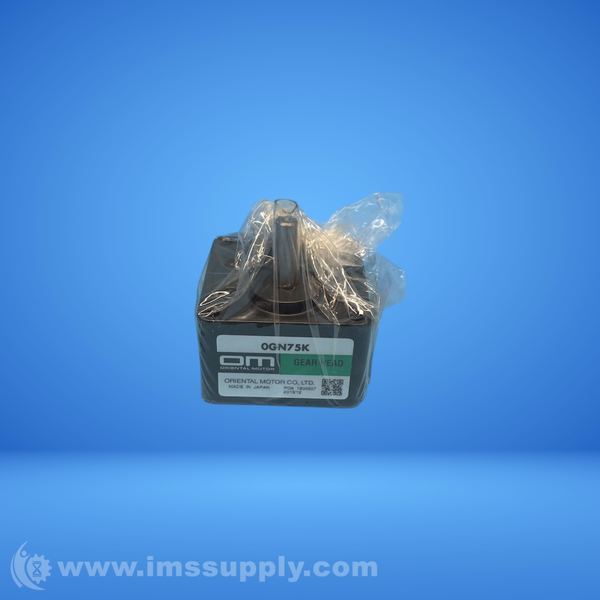

ORIENTAL MOTOR 0GN75K PARALLEL SHAFT GEARHEAD
Quick Overview
Manufactured By: ORIENTAL MOTOR
Manufacturer Part Number: 0GN75K
IMS Product Code: 2143049
Packaging: Sold Individually
Description:
Oriental Motor 0GN75K Parallel Shaft Gearhead
Parallel shaft gearhead with 75:1 gear ratio and 5 mm metric output shaft.
Specifications
- Frame Size: 1.65 in 42 mm
- Output Power: 1 W (1/750 HP)
- Voltage (VAC): Single-Phase 110/115 VAC
- Frequency (Hz): 60
- Shaft/Gear Type: Parallel Shaft Gearhead
- Gear Ratio (X:1): 75 :1
- Output Shaft Diameter: 5 mm
- Type: Lead Wire
- Rated Torque: 3 lb-in 0.35 N·m
- Rated Speed (rpm): 24
- Permissible Load Inertia: 220 oz-in² 40 x 10-4 kg·m²
- Permissible Overhung Load: 0.39 in. from Shaft End = 4.5 lb 10 mm from Shaft End = 20 N
- Permissible Thrust Load: 3.3 lb 15 N
- Degree of Protection: IP20

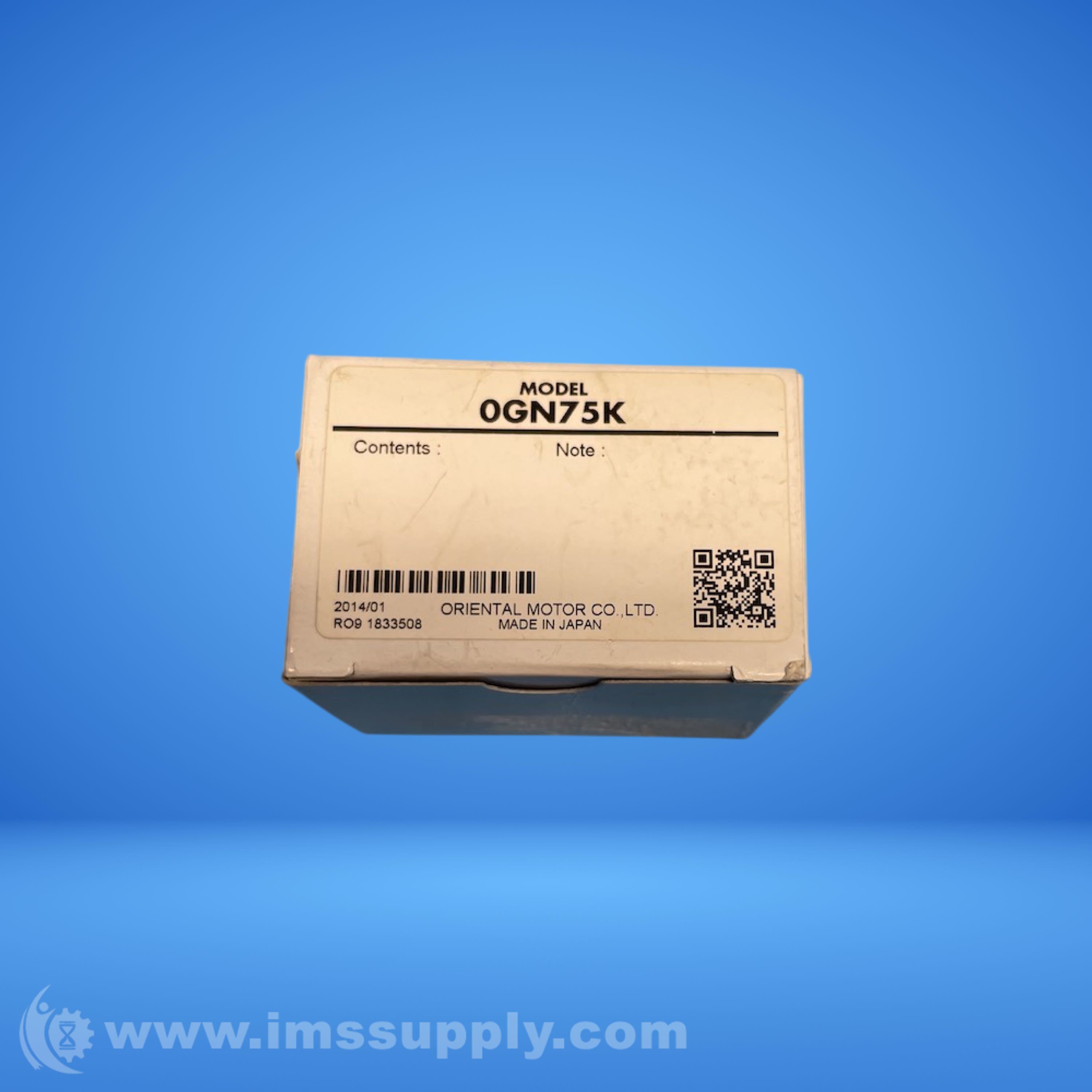

New - Open Box:
A new, unused item with no signs of wear. The item has its original packaging but it is not sealed.
Availability: 8 In Stock
Ships today if ordered in the next 13 hours and 17 minutes.
