ORIENTAL MOTOR 4GN60K PARALLEL SHAFT GEARHEAD
Quick Overview
Manufactured By: ORIENTAL MOTOR
Manufacturer Part Number: 4GN60K
IMS Product Code: 2098851
Packaging: Sold Individually
Description:

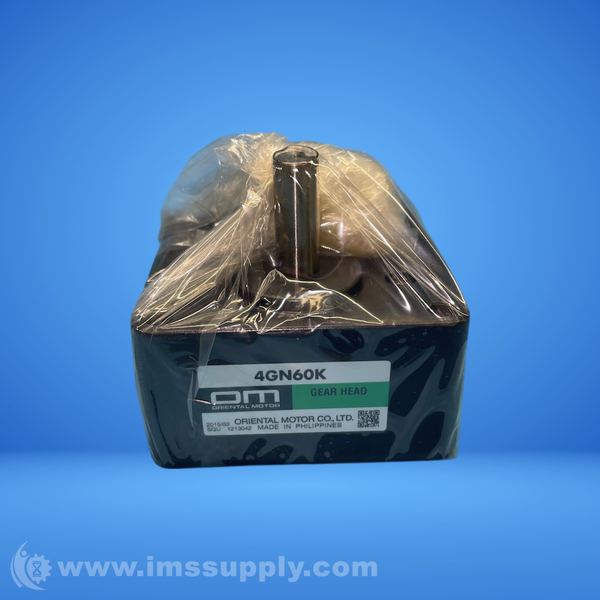

Oriental Motor 4GN60K Parallel Shaft Gearhead
Parallel shaft gearhead with 60:1 gear ratio, 10 mm output shaft diameter, and 25 W output power.
Specifications
- Frame Size: 3.15 in / 80 mm
- Shaft/Gear Type: Parallel Shaft Gearhead
- Gear Ratio (X:1): 60 :1
- Output Shaft Diameter: 10 mm
- Motor Type: Induction
- Output Power: 25 W (1/30 HP)
- Voltage (VAC): Single-Phase 220/230 VAC
- Frequency (Hz): 60 50
- Current: 0.23 A [220/230 VAC, 60 Hz] 0.27 A [220/230 VAC, 50 Hz]
- Output Shaft: Metric
- Type: Terminal Box
- Electromagnetic Brake: Not Equipped
- Rated Torque: 59 lb-in [60 Hz] 70 lb-in [50 Hz] 6.7 N�m [60 Hz] 8 N�m [50 Hz]
- Rated Speed (rpm): 25 [50 Hz] 30 [60 Hz]
- Permissible Load Inertia: 4250 oz-in�775 x 10-4 kg�m�
- Permissible Overhung Load: 0.39 in. from Shaft End = 45 lb0.79 in. from Shaft End = 67 lb10 mm from Shaft End = 200 N20 mm from Shaft End = 300 N
- Permissible Thrust Load: 11.2 lb50 N
- RoHS Compliant: Yes
- Insulation Resistance: 100 MO or more when 500 VDC megger is applied between the windings and the frame after rated motor operation under normal ambient temperature and humidity.
- Dielectric Strength: Sufficient to withstand 1.5 kV at 50 Hz or 60 Hz applied between the windings and the frame for 1 minute after rated motor operation under normal ambient temperature and humidity.
- Temperature Rise: Temperature rise of windings are 144�F (80�C) or less measured by the resistance change method after rated motor operation with connection to gearhead.
- Insulation Class: Class B (266�F [130�C])
- Overheat Protection: Built-in thermal protector (Automatic return type). Operating temperature, open: 266�F � 9�F (130�C � 5�C) close: 185�F � 36�F (85�C � 20�C)
- Ambient Temperature Range: 14�F ~ 104�F (-10�C ~ 40�C) (nonfreezing)
- Ambient Humidity: 85% maximum (noncondensing)
- Degree of Protection: IP54
- Weight: 1.50 LBS
New - Open Box:
A new, unused item with no signs of wear. The item has its original packaging but it is not sealed.
Availability: 2 In Stock
