ORIENTAL MOTOR 4IK25GN-FCH INDUCTION MOTOR
Quick Overview
Manufactured By: ORIENTAL MOTOR
Manufacturer Part Number: 4IK25GN-FCH
IMS Product Code: 2107398
Packaging: Sold Individually
Description:

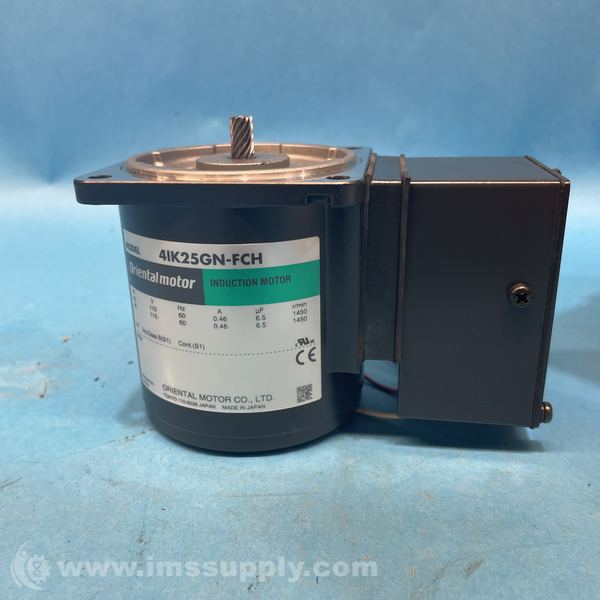

Oriental Motor 4IK25GN-FCH Induction Motor
Induction motor with conduit box type connection, 25W output power, single-phase 110/115VAC, 60Hz, 0.46A current, pinion shaft output.
Specifications
- Motor Type: Induction
- Frame Size: 3.15 in (80 mm)
- Output Power: 25 W (1/30 HP)
- Voltage: Single-Phase 110/115 VAC
- Frequency: 60 Hz
- Current: 0.46 A
- Shaft/Gear Type: Pinion Shaft
- RoHS Compliant: Yes
- Safety Standards: UL CSA EN CE
- CE Marking: Low Voltage Directives
- Electromagnetic Brake: Not Equipped
- Insulation Resistance: 100 MO or more
- Dielectric Strength: 1.5 kV at 50/60 Hz
- Temperature Rise: 80°C or less
- Insulation Class: Class B (130°C)
- Overheat Protection: Built-in thermal protector
- Ambient Temperature: 14°F to 104°F (-10°C to 40°C)
- Ambient Humidity: 85% max
- Degree of Protection: IP54
- Weight: 1.79 kg
