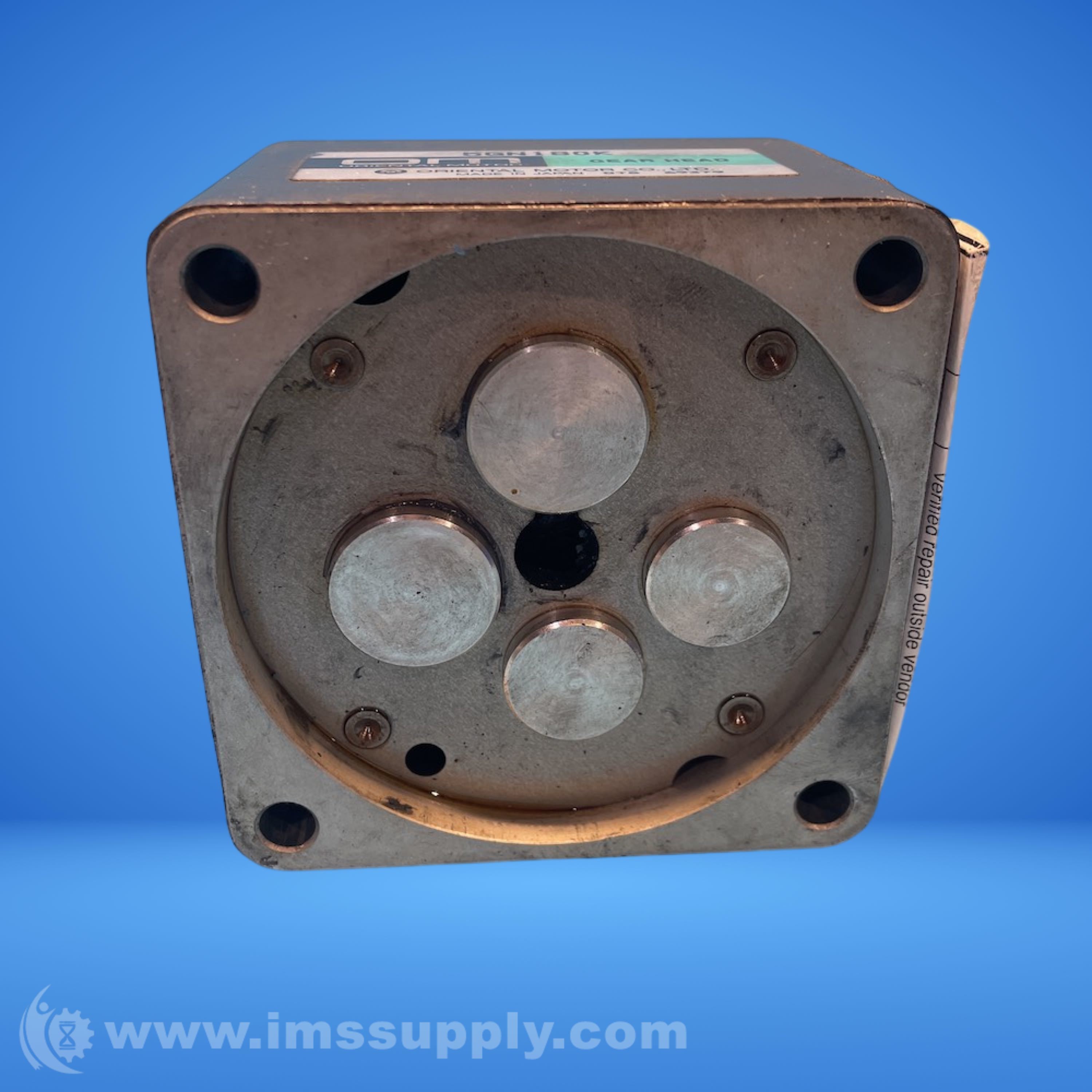

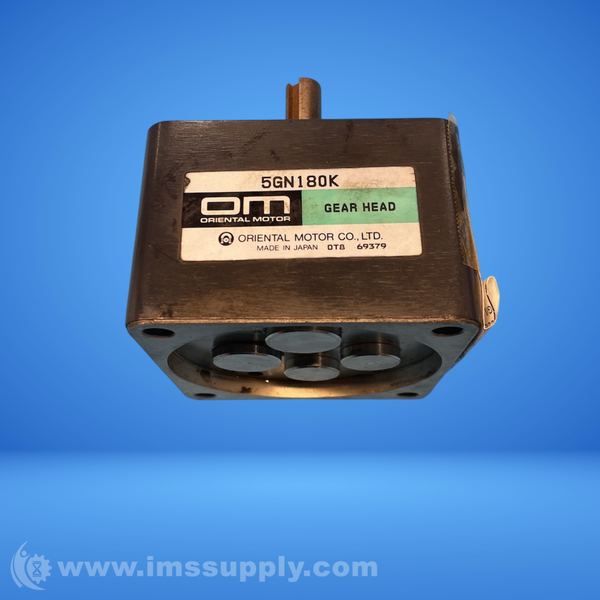

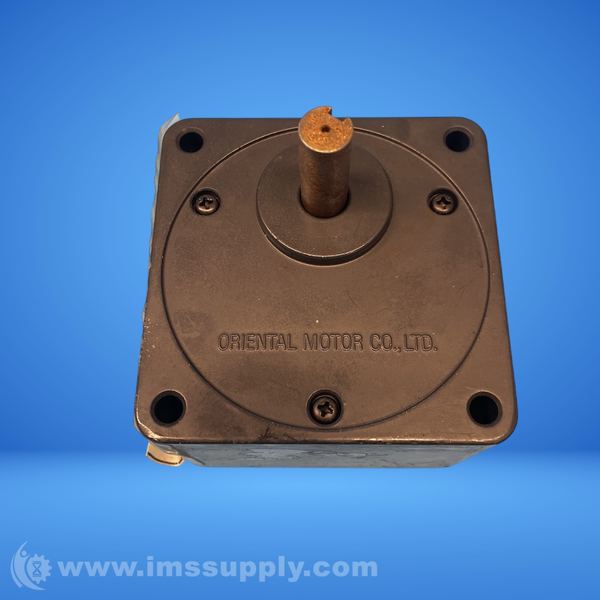

ORIENTAL MOTOR 5GN180K PARALLEL SHAFT GEARHEAD
Quick Overview
Manufactured By: ORIENTAL MOTOR
Manufacturer Part Number: 5GN180K
IMS Product Code: 2156025
Packaging: Sold Individually
Description:
Oriental Motor 5GN180K Parallel Shaft Gearhead
Parallel shaft gearhead for use with various motors, featuring a gear ratio of 180:1 and output shaft diameter of 12 mm.
Specifications
- Frame Size: 3.54 in 90 mm
- Shaft/Gear Type: Parallel Shaft Gearhead
- Gear Ratio (X:1): 180 :1
- Output Shaft Diameter: 12 mm
- Rated Torque: 88 lb-in 10 N·m
- Rated Speed (rpm): 8.3 [50 Hz] 10 [60 Hz]
- Permissible Overhung Load: 0.39 in. from Shaft End = 67 lb 0.79 in. from Shaft End = 101 lb 10 mm from Shaft End = 300 N 20 mm from Shaft End = 450 N
- Permissible Thrust Load: 22 lb 100 N
- Degree of Protection: IP54
Used:
A previously used, fully functional product that may have some signs of cosmetic wear.
