ORIENTAL MOTOR 5IK40GN-SWT INDUCTION MOTOR
Quick Overview
Manufactured By: ORIENTAL MOTOR
Manufacturer Part Number: 5IK40GN-SWT
IMS Product Code: 1916557
Packaging: Sold Individually
Description:

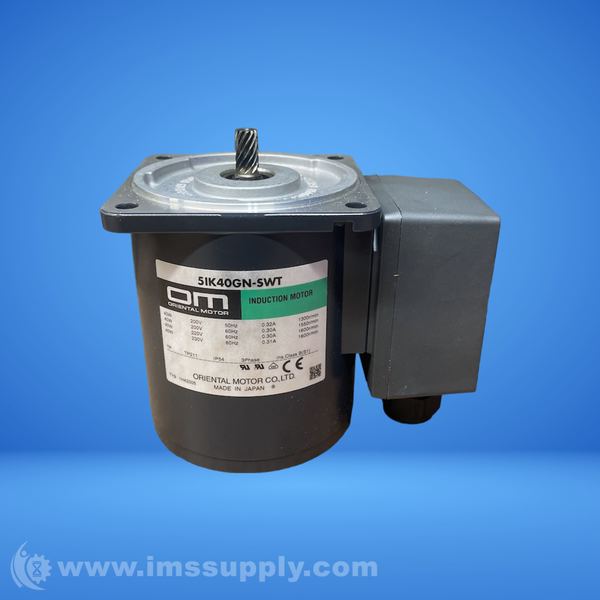

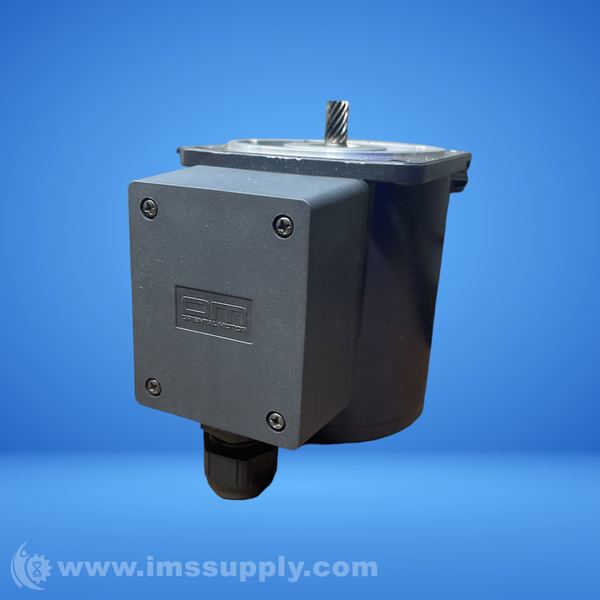

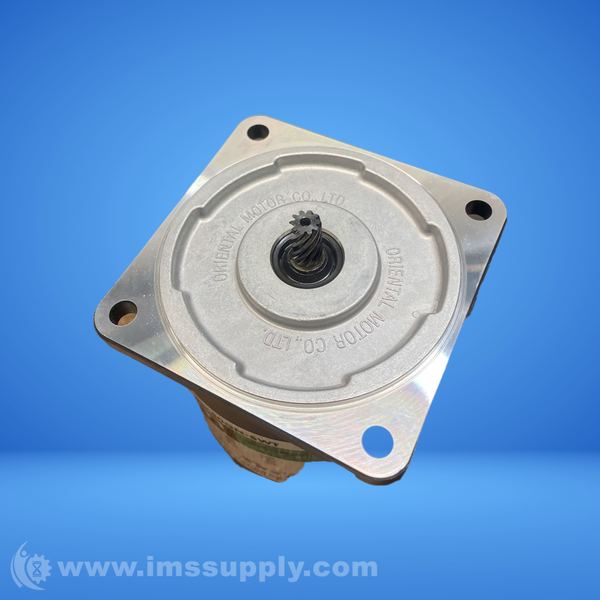

Oriental Motor 5IK40GN-SWT Induction Motor
Three-phase induction motor with 40W output power and 1600 RPM rated speed at 60Hz. Features IP54 protection and built-in thermal protection.
Specifications
- Motor Type: Induction
- Output Power: 40 W (1/19 HP)
- Voltage (VAC): Three-Phase 200/220/230 VAC
- Frequency (Hz): 50/60
- Rated Speed (rpm): 1300 [50 Hz] 1600 [60 Hz]
- Rated Torque (lb-in): 2.63 [50 Hz] 2.25 [60 Hz]
- Degree of Protection: IP54
- Insulation Class: Class B (266 degrees F)
- Ambient Temperature Range: 14 degrees F ~ 122 degrees F (nonfreezing)
- Ambient Humidity: 85% maximum (noncondensing)

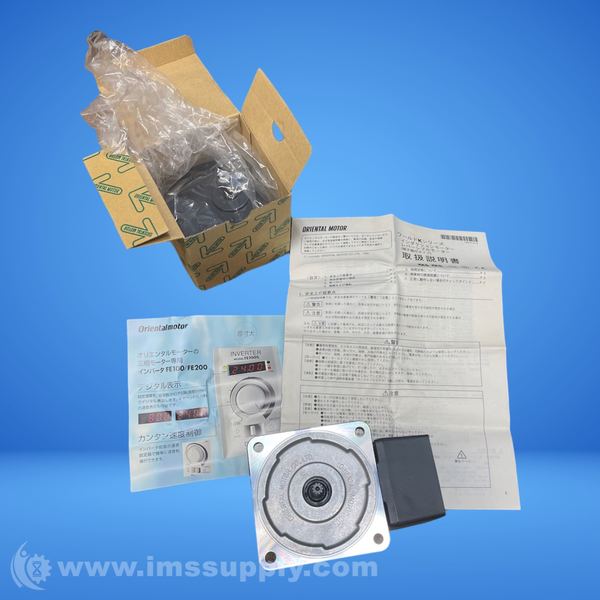

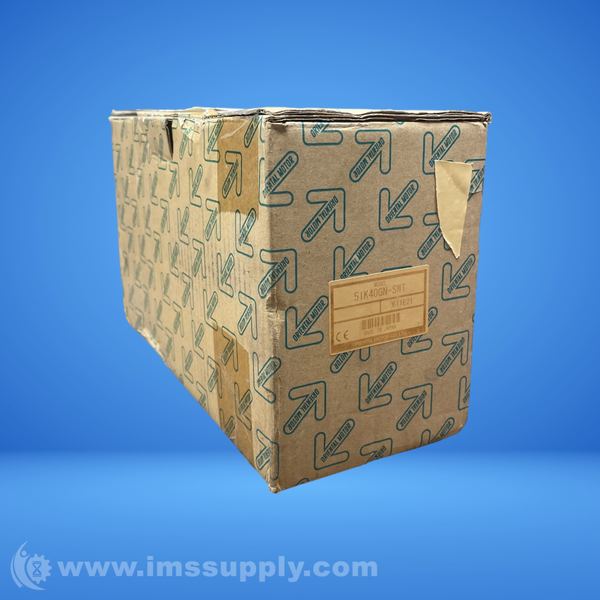

New - Open Box:
A new, unused item with no signs of wear. The item has its original packaging but it is not sealed.
Availability: 1 In Stock
Ships Tomorrow
Emergency after hours shipping may be available.
Call (888) 437-6645 for more information.
New - Missing Box:
A new, unused item with no signs of wear. The item may be missing the original packaging.
Availability: 2 In Stock
Ships Tomorrow
Emergency after hours shipping may be available.
Call (888) 437-6645 for more information.
