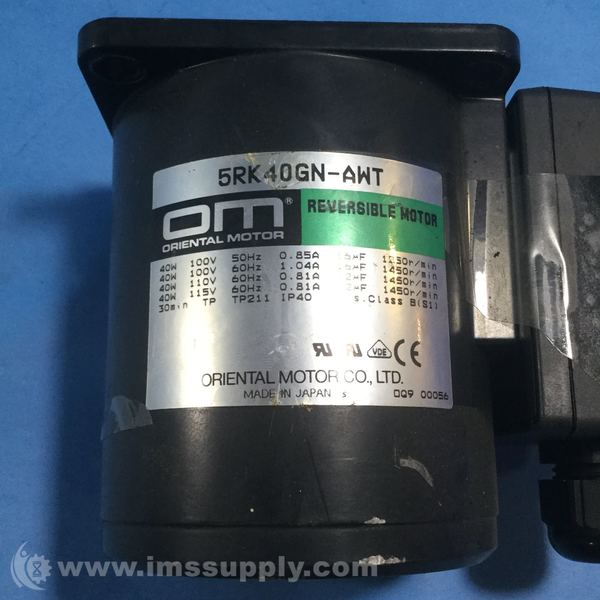

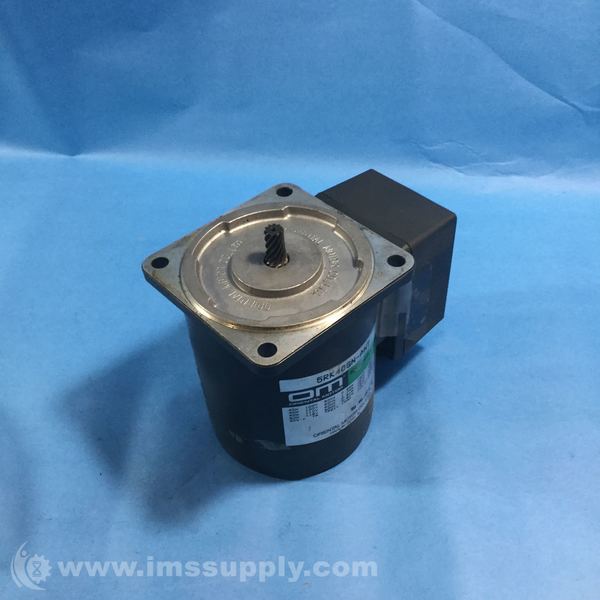

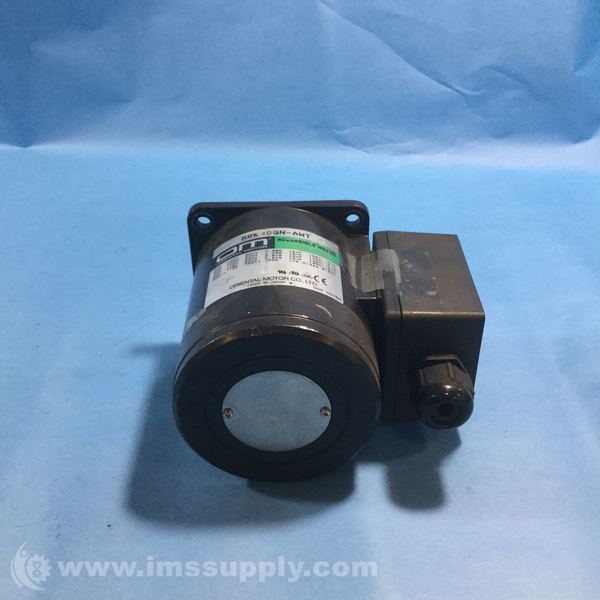

ORIENTAL MOTOR 5RK40GN-AWT REVERSIBLE MOTOR
Quick Overview
Manufactured By: ORIENTAL MOTOR
Manufacturer Part Number: 5RK40GN-AWT
IMS Product Code: 1808976
Packaging: Sold Individually
Description:
Oriental Motor 5RK40GN-AWT Reversible Motor
Reversible motor with pinion shaft output, 40W power, single-phase 110/115VAC, 60Hz, 1450rpm rated speed.
Specifications
- Motor Type: Reversible
- Output Power: 40 W
- Voltage: Single-Phase 110/115 VAC
- Frequency: 60 Hz
- Rated Speed: 1450 rpm
- Rated Torque: 2.38 lb-in
- Shaft/Gear Type: Pinion Shaft
- Insulation Class: Class B (130 degrees C)
- Degree of Protection: IP40
- Ambient Temperature: 14 degrees F to 104 degrees F
- Ambient Humidity: 85% maximum
- Overheat Protection: Built-in thermal protector
- Safety Standards: UL, CSA, EN, CE
