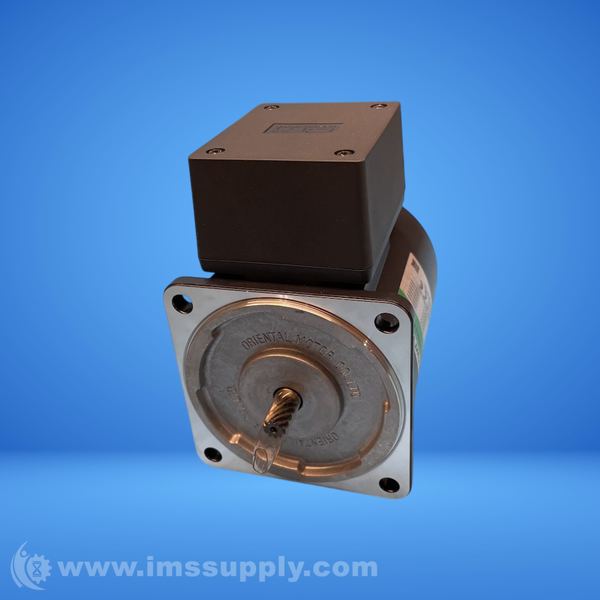

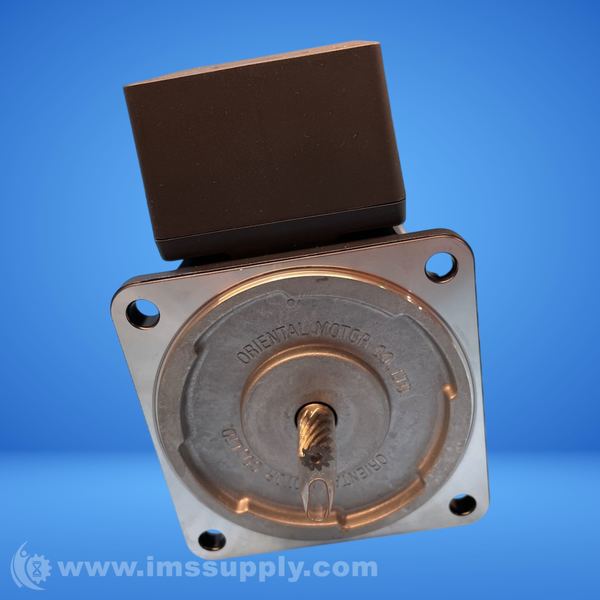

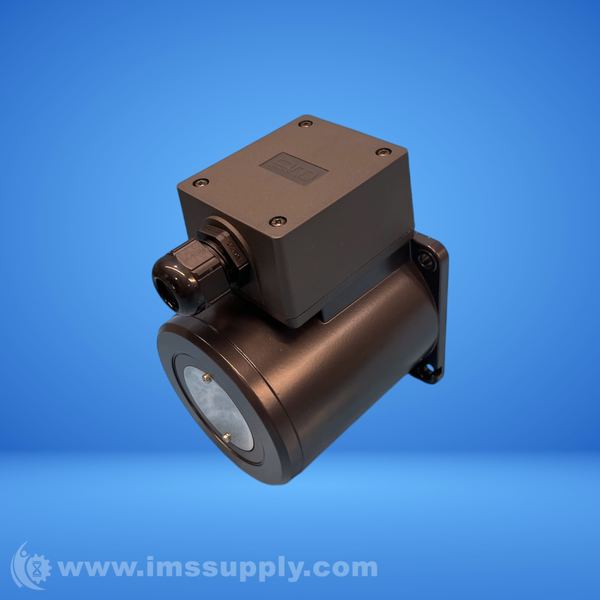

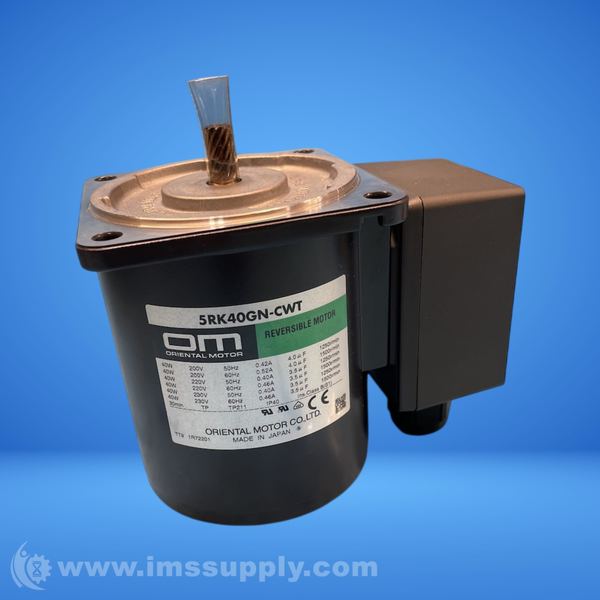

ORIENTAL MOTOR 5RK40GN-CWTE REVERSIBLE MOTOR
Quick Overview
Manufactured By: ORIENTAL MOTOR
Manufacturer Part Number: 5RK40GN-CWTE
IMS Product Code: 2119687
Packaging: Sold Individually
Description:
Oriental Motor 5RK40GN-CWTE Reversible Motor
Reversible motor with various gear ratios and configurations.
Specifications
- Motor Type: Reversible
- Motor Frame Size: 3.54 in. sq.
- Output Power: 40 W (1/19 HP)
- Voltage (VAC): Single-Phase 220/230 VAC
- Frequency (Hz): 50/60
- Shaft/Gear Type: Pinion Shaft or various gearheads
- Type: Terminal Box
- Rated Torque (lb-in): Varies by gear ratio
- Rated Speed (rpm): Varies by gear ratio
- RoHS Compliant: No
- Safety Standards: UL, CSA, EN, CE
- CE Marking: Low Voltage Directives
- Insulation Resistance: 100 MO or more
- Dielectric Strength: 1.5 kV
- Insulation Class: Class B (266°F/130°C)
- Overheat Protection: Built-in thermal protector
- Ambient Temperature Range: 14°F to 104°F (-10°C to 40°C)
- Ambient Humidity: 85% maximum (noncondensing)
- Degree of Protection: IP40

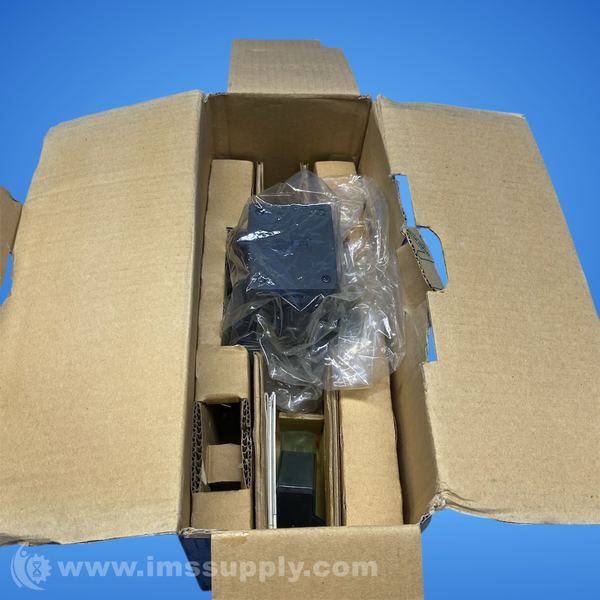

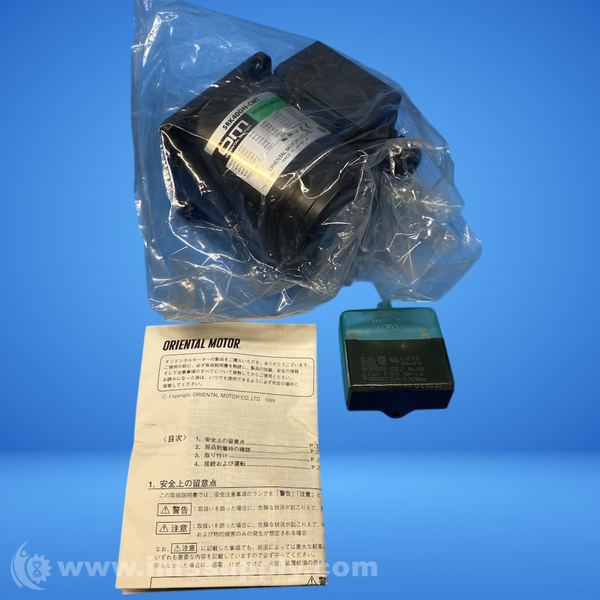

New - Open Box:
A new, unused item with no signs of wear. The item has its original packaging but it is not sealed.
