ORIENTAL MOTOR PK264M-03B
Starting At: $34.50
Quick Overview
Manufactured By: ORIENTAL MOTOR
Manufacturer Part Number: PK264M-03B
IMS Product Code: 1791340
Packaging: Sold Individually
Description:

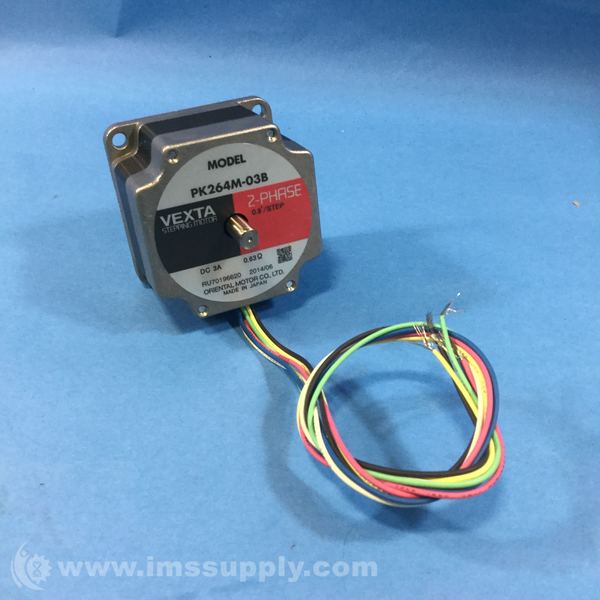

Oriental Motor PK264M-03B
Specifications:
- Motor Type: 2-Phase
- Motor Frame Size: 2.22 in. sq.
- Shaft/Gear Type: Round Shaft (No Gearhead)
- Holding Torque: 68 oz-in
- Type: High-Resolution
- Connection Type: Bipolar (Series) Unipolar
- Lead Wires: 6
- Current per Phase (A/phase): 2.1 [Bipolar (Series)] 3 [Unipolar]
- Encoder: Not Equipped
- Shaft: Double
- Voltage (VDC): 2.6 [Bipolar (Series)]1.9 [Unipolar]
- Resistance (Ω/phase): 1.26 [Bipolar (Series)]0.63 [Unipolar]
- Inductance (mH/phase): 3 [Bipolar (Series)]0.75 [Unipolar]
- Step Angle: 0.9 °
- Rotor Inertia (oz-in2): 0.66 oz-in2
- RoHS Compliant: Yes
- Insulation Resistance: 100 M Ω or More When 500 VDC Megger is Applied Between the Windings and the Case Under Normal Ambient Temperature and Humidity.
- Dielectric Strength: Sufficient to Withstand 1.0 kVAC at 50 Hz or 60 Hz Applied Between the Windings and the Case for 1 Minute Under Normal Ambient Temperature and Humidity.
- Temperature Rise: Temperature Rise of the Windings is 176°F (80°C) or Less Measured by the Change Resistance Method. (at Rated Voltage, at Standstill, 2 Phases Energized)
- Insulation Class: Class B [266°F (130°C)]
- Ambient Temperature Range: 14 ~ 122°F (-10 ~ 50°C) (Non-Freezing)
- Ambient Humidity: 85% or Less (Non-Condensing)
- Shaft Runout: 0.05 mm (0.002 in.) T.I.R.
- Concentricity: 0.075 mm (0.003 in.) T.I.R.
- Perpendicularity: 0.075 mm (0.003 in.) T.I.R.
- Radial Play: 0.025 mm (0.001 in.) Maximum of 5 N (1.12 lb.)
- Axial Play: 0.075 mm (0.003 in.) Maximum of 10 N (2.2 lb.)
- Step Accuracy: ±3 arc Minutes (±0.05°)

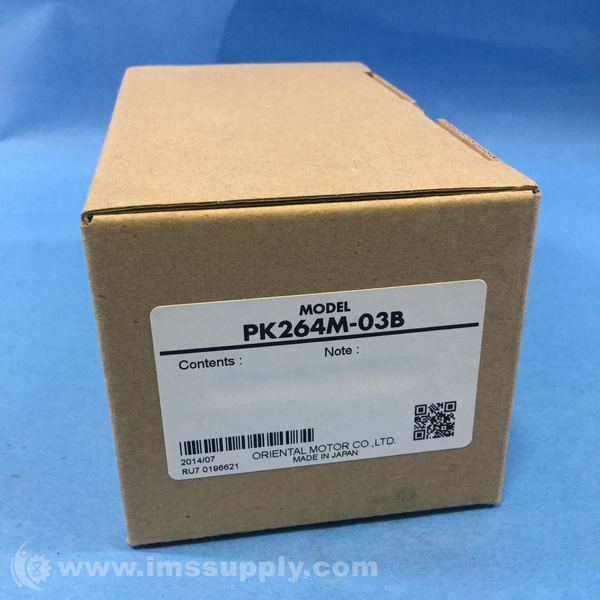

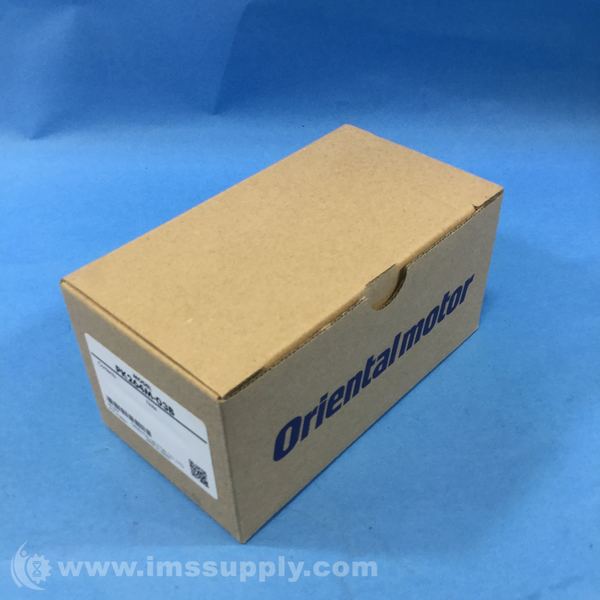

New - Open Box:
A new, unused item with no signs of wear. The item has its original packaging but it is not sealed.
Availability: 4 In Stock
Ships today if ordered in the next 7 hours and 53 minutes.
