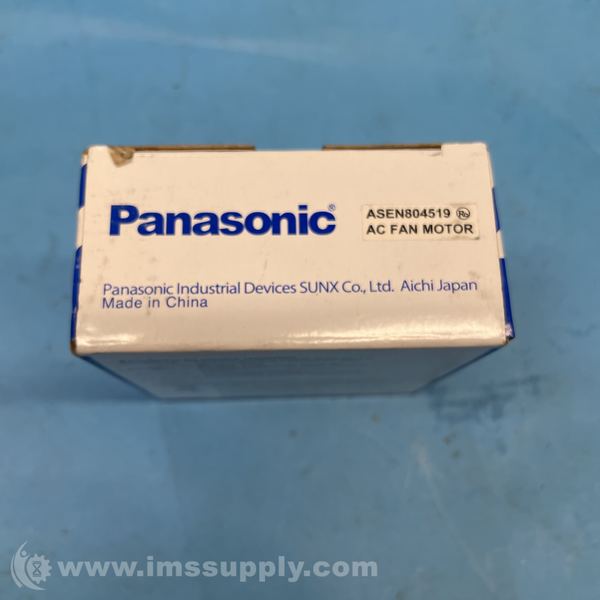

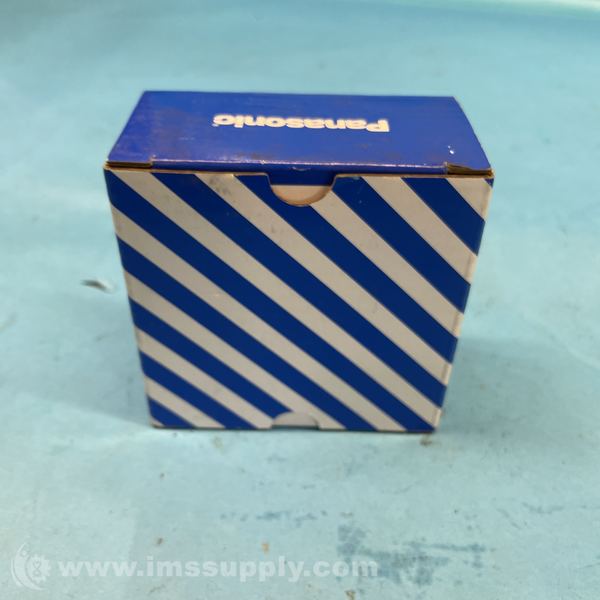

PANASONIC ASEN804519 AC FAN MOTOR
Quick Overview
Manufactured By: PANASONIC
Manufacturer Part Number: ASEN804519
IMS Product Code: 2136787
Packaging: Sold Individually
Description:
Panasonic ASEN804519 AC Fan Motor
Tubeaxial AC fan motor with 100VAC rated voltage, 3200 RPM, and 32.1 CFM airflow.
Specifications
- rated voltage: 100 VAC
- frequency: 50/60 Hz
- input power: 9/7 W +10/-20%
- rated current: 170/120 mA max.
- rotation speed: 2,700/3,200 r/min
- max. static pressure: 34.4/49.1 Pa min
- noise: 33/38(36/42) dB(A) AVE
- operating voltage range: plus or minus 10 %
- weight: 0.27kg
- ambient temperature: -10 degrees to +60 degrees
- ambient humidity: 15 to 85%RH
- storage temperature: -20 degrees to +70 degrees
- breakdown voltage: 1,500 V AC for 1 min. (between charging section and frame)
- insulation resistance: Min. 100MOhm (at 500 V DC megger) (between charging section and frame)
- insulation class: UL: A class CSA: B class
- vibration resistance:Frequency: 10 to 55Hz
- vibration resistance:Double amplitude width: 0.75 mm
- vibration resistance:Applied direction: X, Y and Z directions
- vibration resistance:Applied time: 10 min. in each direction
- protection: Impedance protected
- mean life: MTTF: 50,000 hrs.
- RPM: 3200 RPM
- air flow: 32.1 CFM (0.899m³/min)
- fan type: Tubeaxial
- termination: 2 Terminals
- bearing type: Ball
- power (watts): 7.00W
- size / dimension: Square - 80mm L x 80mm H
- material - frame: Aluminum
- material - blade: Plastic
